Nuote Metals Ships Half Tubular Rivets to Mexico – For Folding Furniture, 24h Salt Spray Passed

Shipment Overview – 380,000 Half Tubular Rivets to Mexico City

Nuote Metals completed a direct shipment of half tubular rivets to a folding furniture manufacturer in Mexico City. The order left our Dongguan factory on May 12, 2026, and is expected to arrive at the Port of Manzanillo in early June.

Order details:

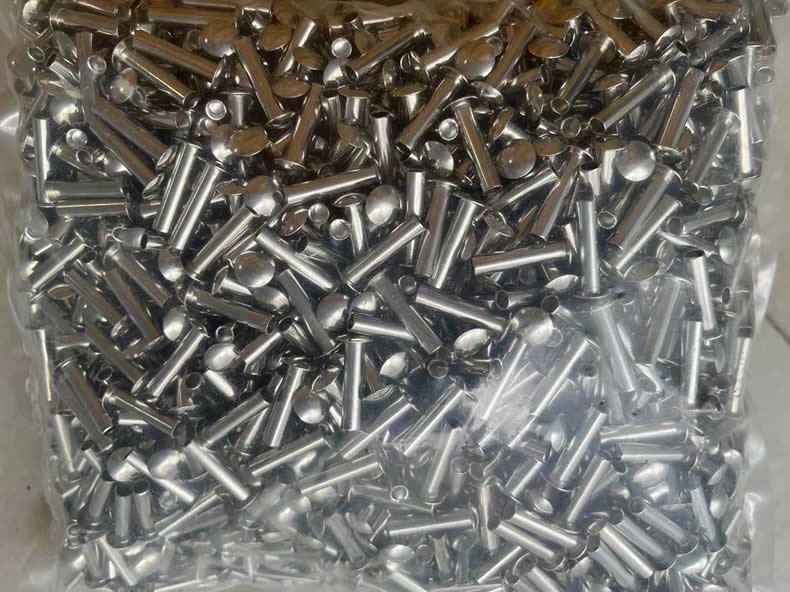

• Product: half tubular rivets – iron, round head, nickel‑plated
• Quantity: 380,000 pieces
• Shank diameter: 3.2mm (±0.05mm)
• Shank length: 12mm (±0.10mm)
• Material: C1008 low‑carbon steel (iron‑based)
• Plating: Clear zinc trivalent (RoHS compliant)

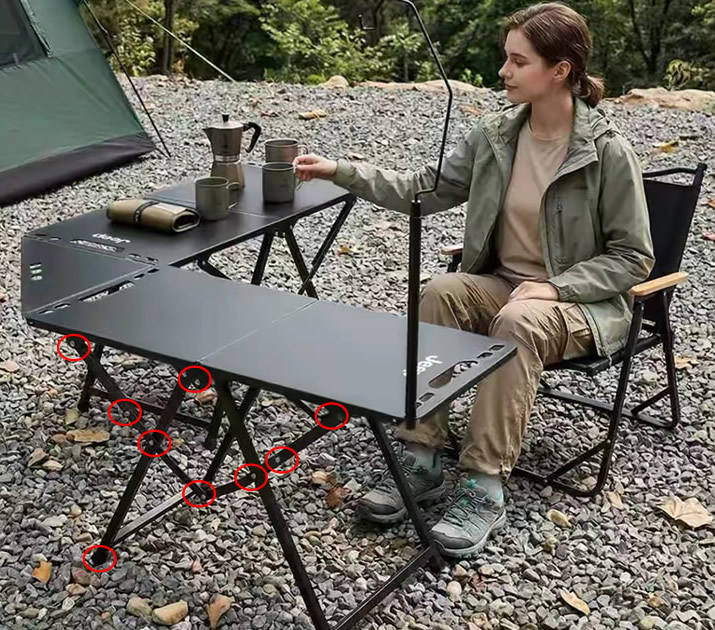

• End use: Pivot joints and cross‑brace connections for folding tables and chairs (household and event furniture).

The buyer requested half tubular rivets after testing three other suppliers. Our pre‑shipment samples passed their 24‑hour salt spray test (ASTM B117) and 10,000‑cycle folding durability test with no cracking or loosening.

Technical Parameters & Batch Certificates

All rivets supplied to Mexico meet or exceed the following specifications for folding furniture applications.

Certifications available per batch (no extra charge):

• ISO 9001:2015 (TÜV SÜD) – full quality management system
• RoHS 3 (lead‑free, hexavalent chromium‑free)
• Mill test certificate for C1008 wire coil
• Plating bath certificate + 24h salt spray test report with photos

Transparency: The Mexico City buyer received a pre‑shipment video showing 20 random rivets undergoing the 24h salt spray test.

Result: no red rust, only minimal white rust at edges – fully within furniture industry standard.

Why Mexican Furniture Makers Choose Nuote Metals for Half Tubular Rivets

1. Consistent flaring without cracking

Folding table and chair joints require the half tubular rivets to flare evenly without splitting. Our split end is precision‑rolled, not cut, achieving zero cracks across all 380,000 pieces.

2. Correct plating for indoor/outdoor use

24‑hour salt spray resistance means these rivets withstand humidity and occasional outdoor exposure (patio furniture, camping tables). The zinc plating is trivalent – safe and RoHS compliant.

3. Tariff & logistics transparency

HS code 7318.23.01 (rivets of iron or steel). Standard MFN tariff ~15%. We provide full customs documents and classification support. No hidden fees.

4. Real‑world performance

The buyer installed 5,000 half tubular rivets into a test batch of 500 folding chairs. After 10,000 mechanical folding cycles (simulating 5 years of daily use), all rivets remained tight. No loosening, no squeaking, no plating wear.

Order & Delivery Process to Mexico

Quality checks before every shipment:

• 100% optical inspection for head height, shank diameter, and flare crack
• Random destructive test (10 pcs per 50,000) – video recorded and shared
• Plating thickness check (XRF) on 5 pcs per batch
• Packing photos with lot number visible on each carton

FAQ – Half Tubular Rivets for Folding Furniture

Q1: Can these half tubular rivets be used on thin metal tubes (0.8mm wall thickness) for folding chairs?

A1: Yes. The half tubular rivets in this shipment were designed specifically for folding chair frames made of 0.8mm – 1.2mm wall thickness steel tube. The split barrel depth is 4.5mm, which flares outward without piercing through the opposite wall. We recommend a hole size of 3.25 – 3.30mm (slightly larger than the 3.2mm shank) to allow smooth insertion. For verification, we offer free sample rivets – you can test flare on your actual tube before ordering.

Q2: What happens if the nickel plating fails the 24h salt spray test?

A2: We guarantee a minimum of 24 hours of white rust resistance per ASTM B117. If an independent third‑party test (SGS, Bureau Veritas, etc.) shows failure before 24 hours on a representative sample from your batch, we will either re‑plate the entire batch at our cost or issue a full refund for the plating portion of the order. This is written into our quality assurance policy. No hidden exceptions for furniture components.

Q3: Do you keep stock of common half tubular rivet sizes for urgent Mexican furniture orders?

A3: Yes. We maintain stock of the six most common furniture sizes: 3.0mm, 3.2mm, 4.0mm diameter with lengths from 8mm to 16mm. Total stock quantity is approximately 200,000 pieces. For these stock half tubular rivets, we can ship within 3–5 days. Stock items still include full mill certificates and plating test reports. To check current availability for Mexico, send your size and quantity – we reply within 8 hours.

Contact & Next Steps

Get a quotation: www.nuotemetal.com/half-tubular-rivets

Include: shank diameter, length, head style, quantity, and plating requirement .

Free sample request: Send us your size, we will send samples within 3 working days if we just have the same in stock.

Nuote Metals Technology Co., Ltd. – Dongguan, China

Real tests. Real traceability. Real furniture‑grade rivets.
