Male Female Rivets

Introduction of male female rivets

Steps for installing male female rivets: First, drill a hole on the material to be connected that matches the diameter of the female rivet. Then, insert the female rivet into the hole and make sure that its head is flush with the surface of the material to be connected or slightly exposed. Next, insert the male rivet from the open end of the female rivet until the tail of the male rivet is in close contact with the inside of the female rivet. The diameter of the male rivet is usually slightly smaller than the internal diameter of the female rivet to allow for smooth insertion. Use a special knocking tool (such as a rivet hammer) to knock the tail of the male rivet. During the knocking process, the tail of the male rivet will deform, gradually expand and fill the internal space of the female rivet. As the knocking continues, the connection between the male and the female rivet will become tighter and tighter until a solid connection point is formed. When the knocking reaches a certain level, the tail of the male rivet will be completely deformed and pressed tightly against the inside of the female rivet, forming a non-detachable connection.

How Male Female Rivets Are Assembled

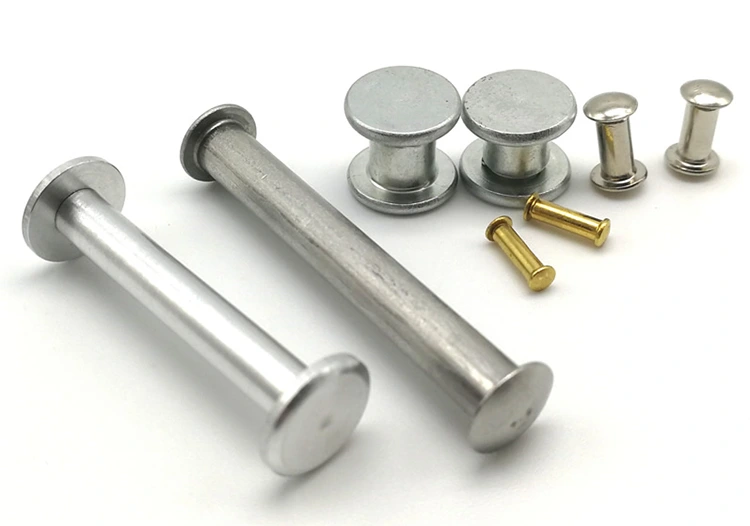

In a male female rivet pair, the male component is a solid rivet with a pre‑formed head. The female component is a semi‑hollow rivet with a head on one end and a shallow cavity on the other.

• Insert the male rivet through the hole from one side
• Slide the female rivet over the protruding shank from the other side
• Press or hammer both ends simultaneously
• The solid shank expands into the cavity, locking the pair together

The result is a permanent joint with no exposed clinch and no unfinished surfaces.

Materials and Finishes

Head styles: Round (domed), flat (countersunk style).

Finishes: Zinc‑plated, nickel‑plated, passivated, antique, plain.

One Real Application – Wooden Gate Hinge Assembly

A residential fencing contractor was installing custom wooden gates for a housing development. The gate hinges needed to be attached to both the gate frame and the fence post. The hinges were visible from both sides – the front of the gate and the back of the gate. Standard rivets left an ugly clinch that caught on clothing and splintered the wood over time. Screws loosened with the constant opening and closing of the gate.

The contractor needed a fastener that would:

• Hold securely under the weight of a heavy wooden gate
• Look professional from both sides
• Not loosen over time
• Be simple to install on-site

Nuote Metals supplied zinc‑plated steel male female rivets – 5.0mm shank, 10.0mm round head, 16.0mm overall length. The male solid rivet went through from the front of the gate; the female semi‑hollow rivet slid over from the back. A single press stroke set both heads simultaneously, creating a clean, domed finish on both faces. The zinc plating provided corrosion resistance for outdoor use.

The contractor installed 500 rivets across 100 gates. After a full year of seasonal outdoor exposure and thousands of gate open‑close cycles, zero loosening, zero corrosion, zero failures. They now order male female rivets in batches of 200,000 pieces annually.

How We Make Male Female Rivets – Two Parts, One Match

Male female rivets require two separate manufacturing lines – one for the male solid rivet, one for the female semi‑hollow rivet.

Male component (solid rivet) – Cold‑headed from wire. Cut to length. Head formed. Solid shank.

Female component (semi‑hollow rivet) – Cold‑headed from wire. Head formed. Shallow cavity pierced at the tail to accept the male shank.

The critical factor: fit. The male shank and the female cavity must match perfectly. Too tight, the female will not slide on. Too loose, the upset will not fill the cavity.

We produce both components in matched batches and package them together. Before packaging, we perform frequent test fits – randomly sampling and assembling pairs to check for smooth fit and a clean, secure upset.

Sample lead time: 5–7 days standard; custom tooling: 15–20 days.

Eight Questions We Ask Before We Ship

1. Is the wire the right diameter? – Laser micrometer ±0.02mm.

2. Is the material correct? – Spectrometer verification.

3. Do they look right? – Visual inspection for cracks, burrs, defects.

4. Are the dimensions correct? – Optical comparator verification of male shank, female cavity, heads, length.

5. Are we staying on dimension? – 5 male and 5 female rivets every 500 pieces.

6. Do they fit and set correctly? – Test fit into your actual material every 2,000 pieces.

7. Is the corrosion protection adequate? – Salt spray tests when required.

8. Are there any rejects? – 100% optical sorting. AQL sample manually verified.

What Our Customers Say – Real Feedback

 Three Questions We Answer Often

Q: "Can I get samples before ordering production quantities?"

A: Yes – samples are free for standard specifications. You only pay shipping. For custom sizes, contact our sales team for sample cost and lead time.

Q: "What is the difference between male female rivets and standard solid rivets?"

A: A standard solid rivet is a single piece that deforms on one side, leaving an exposed clinch. A male female rivet is two pieces – a solid male and a semi‑hollow female – that lock together to create a clean, finished head on both sides. If you need a fastener that looks professional from every angle, male female rivets are the right choice. If appearance on the back side does not matter, a standard solid rivet will do.

Q: "Why do you list the same product under multiple names?"

A: Different industries use different terms. Furniture makers call them two piece rivets. General hardware calls them male and female rivets. Leather craft calls them post‑and‑cap. We list them all so you can find us regardless of which term you use. The product is the same – a solid male and a semi‑hollow female that work together as a matched pair.
