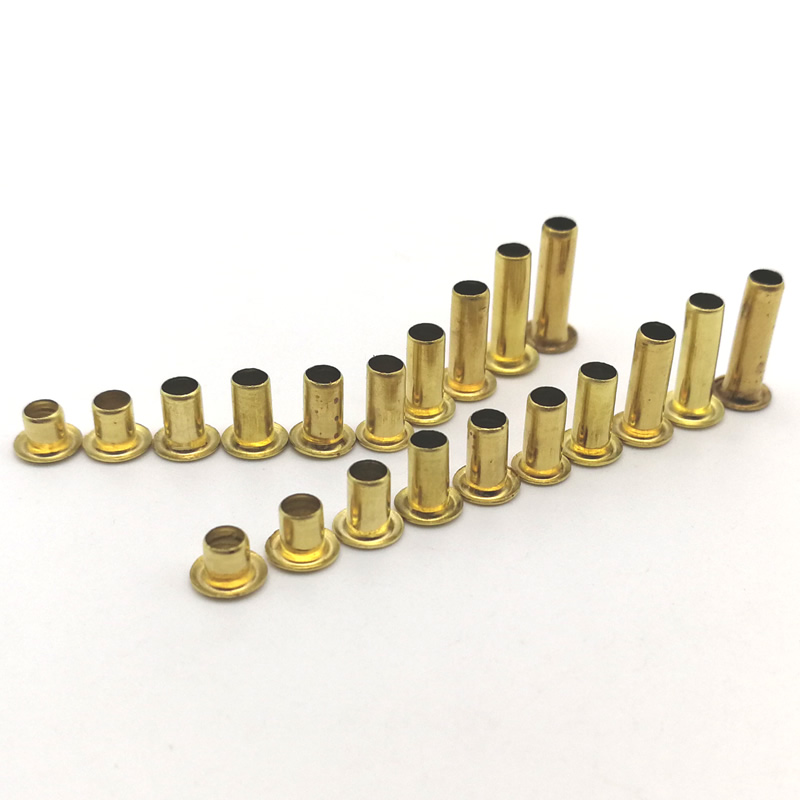

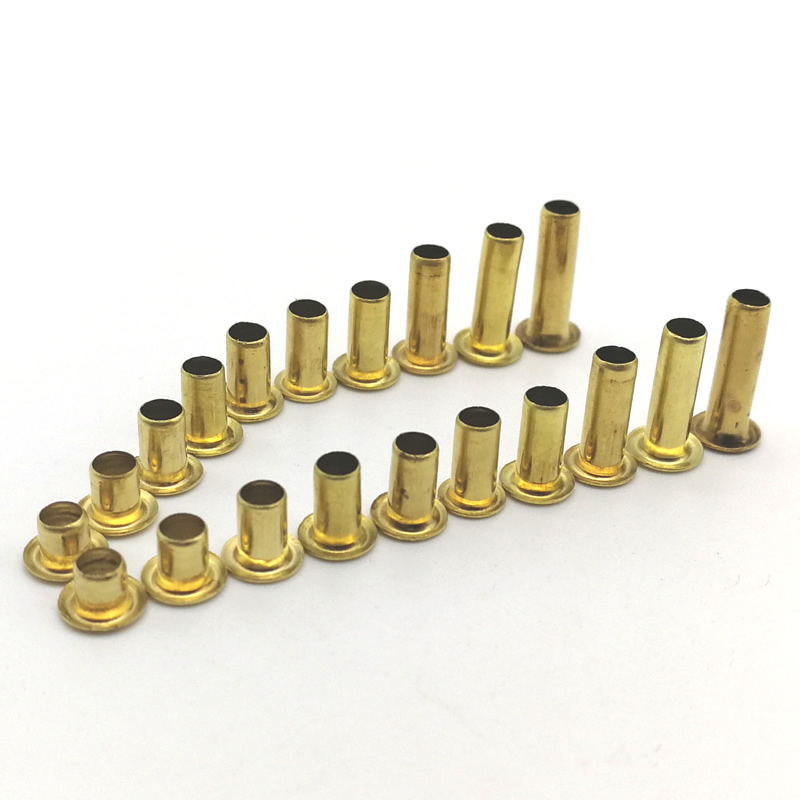

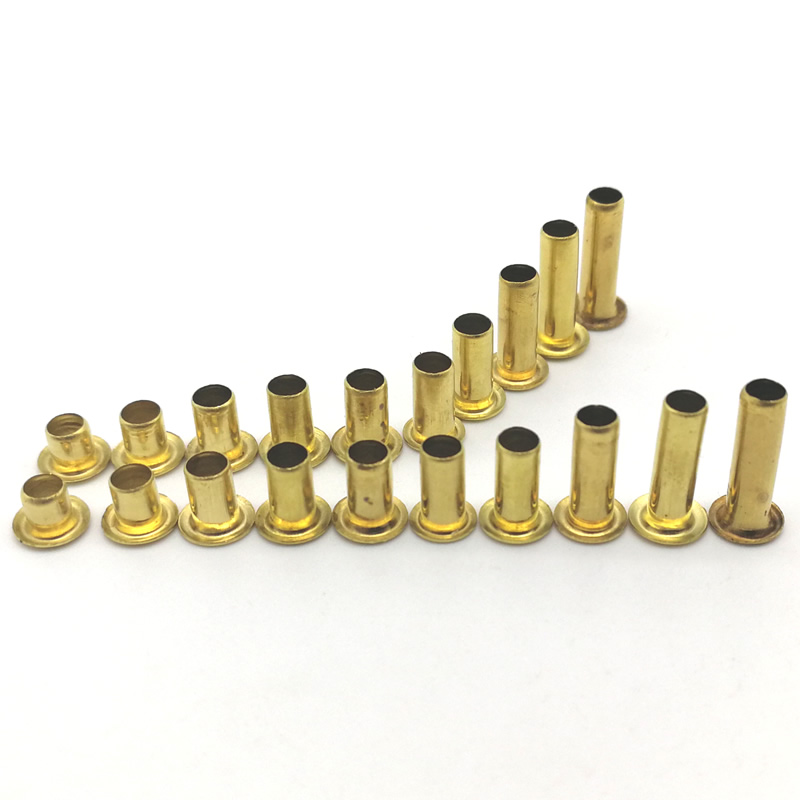

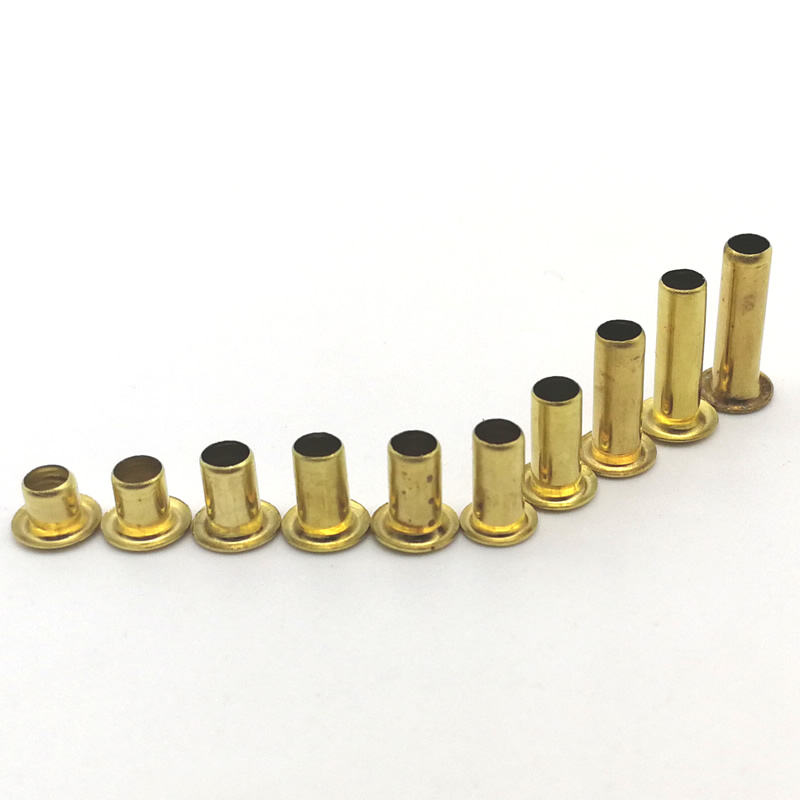

3mm Brass Eyelets

For applications that require a balance between miniature precision and mechanical strength, 3mm brass eyelets represent the sweet spot. The 3mm inner diameter accommodates cords, laces, and wires up to 2.5mm while maintaining a compact outer flange that fits neatly into tight designs. From medical device housings to premium leather watch straps, 3mm brass eyelets deliver consistent performance across thousands of installations.

Nuote Metals manufactures 3mm brass eyelets from C26000 cartridge brass using high-speed cold heading and secondary finishing. Our production records show over 50 million 3mm brass eyelets shipped in the past five years alone—with field returns below 0.02%. This guide provides the technical depth, real-world case references, and transparent quality data that engineers and procurement professionals expect.

Real-World Applications of Nuote Metals 3mm Brass Eyelets

Case 1 – Lamp Holder (Phenolic Base, Brass Eyelet for Wire Pass-Through)

A lighting fixture manufacturer needed a reliable, heat‑resistant pass‑through for electrical wires inside their lamp holders. The holder body was molded phenolic, and the bare wire hole tended to fray and crack over time due to repeated assembly and thermal cycling. They wanted a smooth, durable reinforcement that would also provide a consistent contact surface for the electrical terminal.

We supplied brass eyelets (3mm inner diameter, 5.5mm outer flange, 4mm barrel length, nickel‑plated). The eyelet was pressed into the wire hole, creating a burr‑free, rounded surface that protected wire insulation. The nickel plating ensured reliable soldering and low contact resistance. After 5,000 insertion‑withdrawal cycles and 1,000 hours of heat aging at 120°C, the eyelets showed no loosening or oxidation. The customer now uses our eyelets across their entire lamp holder product line.

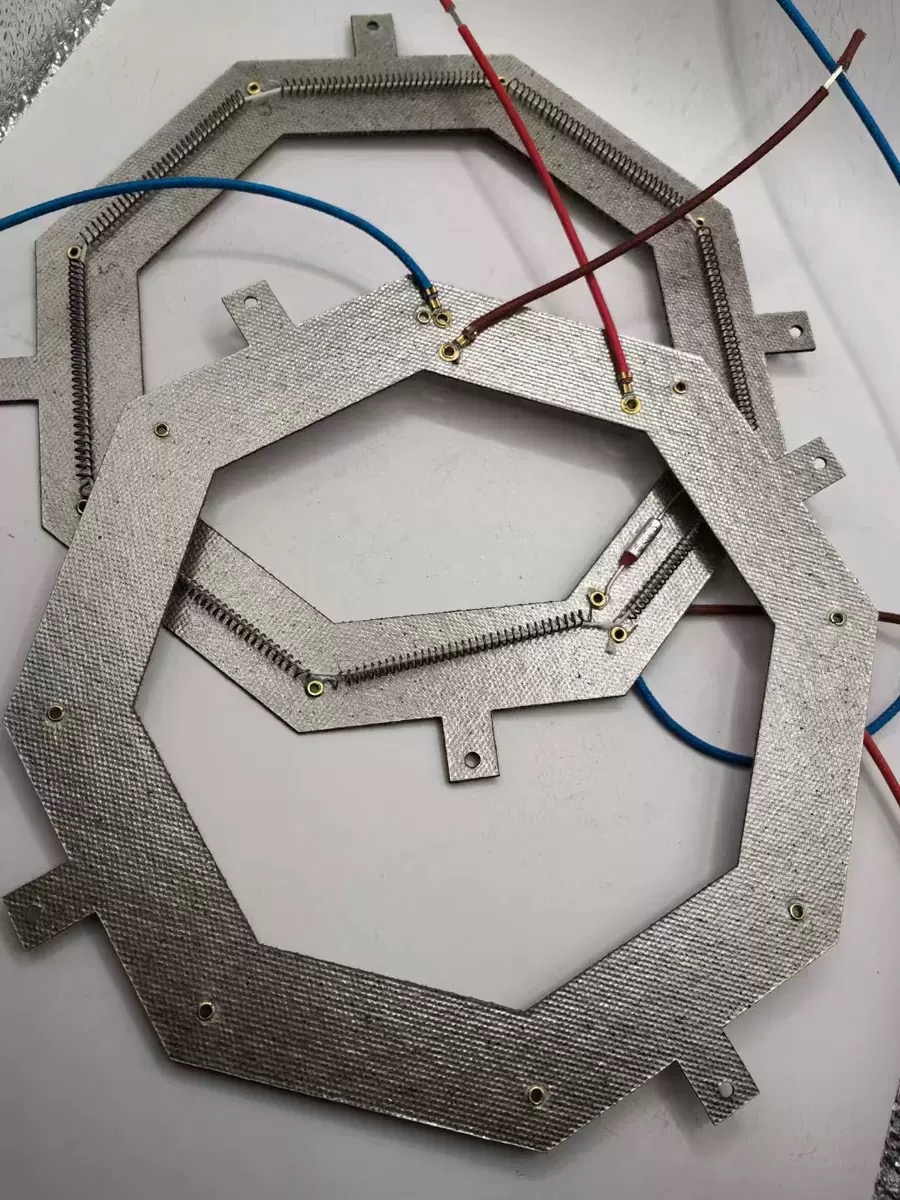

Case 2 – Mica Sheet Heater Element (Mica Insulator, Brass Eyelet as Rivet/Spacer)

A manufacturer of electric heating elements used thin mica sheets to insulate resistance wire from the metal frame. They needed a small, heat‑resistant fastener that would not crack the brittle mica. Traditional rivets created stress points, causing mica fractures during assembly. The customer also required a precise 1.5mm standoff between mica layers.

We recommended brass eyelets (3mm inner diameter, 6mm outer flange, 1.5mm barrel length, natural lacquered). The eyelet was set through pre‑punched holes in two mica sheets, acting as both a rivet and a spacer. The soft brass barrel rolled gently without cracking the mica. The 1.5mm barrel length held the exact gap consistently. The 3mm brass eyelets survived 10,000 thermal cycles from room temperature to 300°C with no loosening or oxidation. The heating element manufacturer has since adopted our eyelets as the standard assembly component for all mica‑based heaters.

Technical Parameters of Nuote Metals 3mm Brass Eyelets

All 3mm brass eyelets are produced from C26800 (65% copper, 35% zinc) cartridge brass, known for its excellent cold formability and corrosion resistance.

Material Certificate Data

Nuote Metals provides a mill test certificate (MTC) with every batch of 3mm brass eyelets, traceable to the original coil.

Dimensional Specifications

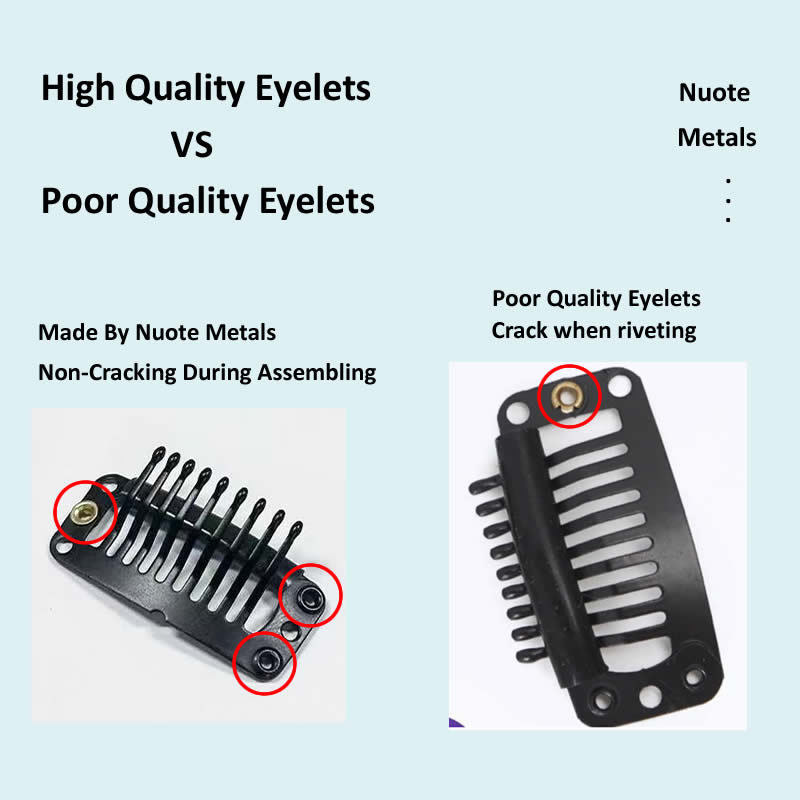

High Quality Eyelets VS Poor One

Available Configurations

Nuote Metals offers 3mm brass eyelets in three standard configurations:

Surface Finishes for 3mm Brass Eyelets

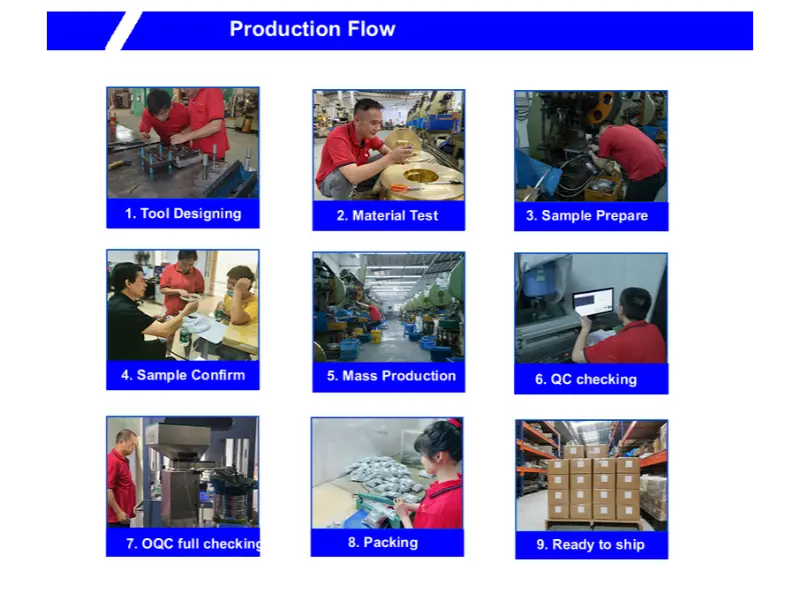

Production Process – How Nuote Metals Makes Brass Eyelets

Transparency in manufacturing builds trust. Here is the exact process for our eyelets:

Step-by-Step Production

Nuote Metals manufactures 3mm brass eyelets using progressive deep drawing from C26000 brass sheet. This process delivers superior wall thickness uniformity and eliminates the risk of seam defects.

1. Sheet feeding – Brass sheet is fed from a coil into a progressive transfer press.
2. Blank piercing – The first station cuts a circular blank from the sheet (approx. 8mm diameter for a 3mm ID eyelet).
3. First draw – A punch forces the blank into a die, forming a shallow cup (reducing diameter, increasing wall height).
4. Second draw – A smaller punch redraws the cup to deeper dimensions, achieving the required barrel length.
5. Third draw (bottom piercing) – The bottom of the cup is pierced to create the 3mm through-hole.
6. Flange forming – A flat tool flattens the rim of the cup into the finished flange shape.
7. Trimming – The outer edge of the flange is trimmed to final diameter (5.50–6.00mm).
8. Deburring & cleaning – Tumbling removes micro-burrs; ultrasonic cleaning removes drawing lubricant.
9. Annealing (as needed) – For multi-stage draws, the parts may be annealed between stages to restore ductility.
10. Plating or lacquering – Applied in-house or by certified partners.
11. Optical sorting – 100% inspection for inner/outer diameter, flange concentricity, and height.

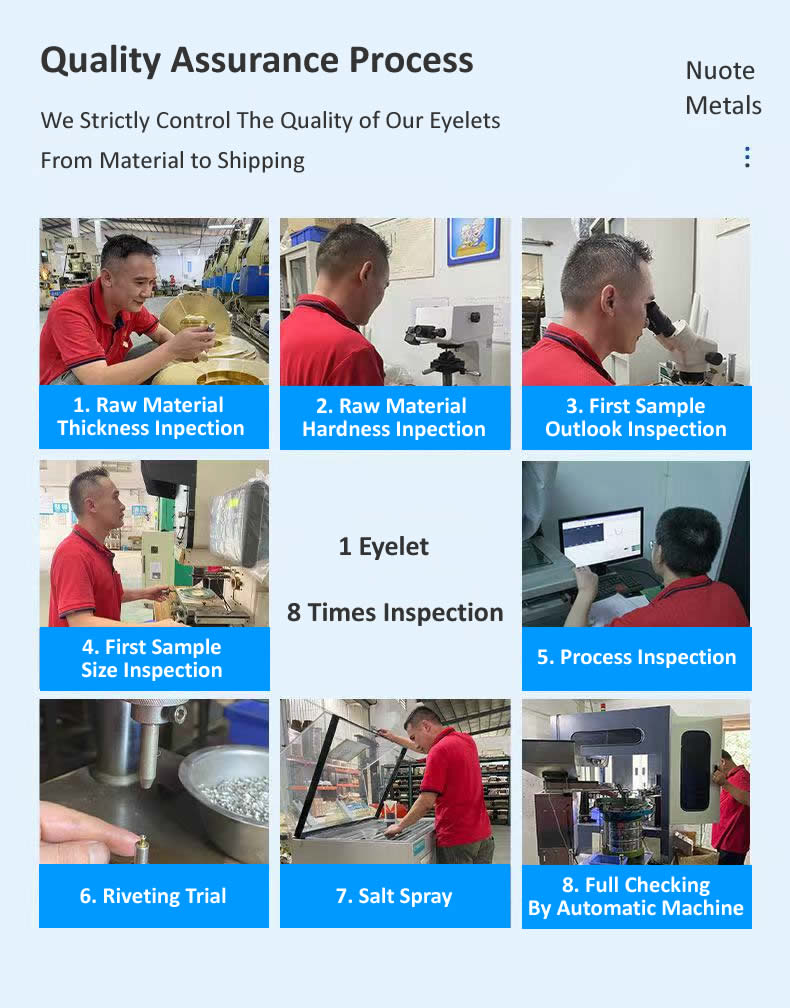

Quality Control Points

Certifications and Compliance – Proof of Trust

Nuote Metals maintains active certifications that apply to our 3mm brass eyelets:

Nuote Metals provides a compliance package for every shipment of 3mm brass eyelets, including the MTC, RoHS test report (updated annually), and a signed Certificate of Conformance.

Transparent Pricing and Policy

Nuote Metals believes in upfront, honest policies for 3mm brass eyelets:

Sample policy – 20 free pieces for any standard size (customer pays shipping)

Minimum order quantity – 5,000 pieces for stocked finishes; 20,000 for custom finishes

Lead time – 3–5 business days for stocked sizes; 15–20 days for custom finishes

Tooling charges – None for standard sizes; custom barrel lengths or flanges incur $200–$500 one-time fee

Return policy – Defective parts replaced at no cost; returns for other reasons accepted within 30 days (customer pays return shipping)

Certificate of Analysis – Included free with every order (dimensions, material, finish thickness)

Frequently Asked Questions About 3mm Brass Eyelets

Below are real questions from Nuote Metals customers, answered with specific data.

Q1: What is the pull-out strength of 3mm brass eyelets when set into 2mm thick vegetable-tanned leather? I need a number for design validation.

A: Nuote Metals has performed pull-out testing on 3mm brass eyelets (standard flange, 4.0mm barrel length) set into 2.0mm thick vegetable-tanned leather (density approx. 0.9 g/cm³). Using a universal testing machine at 50mm/min pull rate, the average peak pull-out force was 38.2 kg (84 lbs) for a sample of 20 eyelets, with a standard deviation of 2.1 kg. The minimum recorded value was 34.5 kg. For safety factor purposes, we recommend designing to 30 kg (66 lbs) for static loads. For dynamic or cyclic loads (e.g., watch strap lacing), the fatigue limit is approximately 60% of static strength—design to 18 kg. If your leather is softer or thinner, request our custom barrel length optimization service.

Q2: How does Nuote Metals ensure that the inner diameter of 3mm brass eyelets remains consistent across millions of parts? What is your process capability (Cpk)?

A: Maintaining a 3.00mm ±0.05mm inner diameter is critical for cord and lace fit. Nuote Metals uses a carbide piercing punch that is laser-measured every 50,000 strokes. The punch is replaced when wear exceeds 0.01mm. We monitor the ID using a Keyence laser micrometer at the press exit, sampling 1 part every 1,000 strokes. Over the last 12 months of production (approximately 8 million 3mm brass eyelets), our process capability index (Cpk) for inner diameter has averaged 1.33, with a range of 1.21 to 1.47. This means the process is statistically capable (Cpk >1.33 is considered “satisfactory” by automotive standards). We provide a Cpk report upon request for any production batch.

Q3: Do your 3mm brass eyelets contain nickel? I need nickel-free for skin-contact applications (watch straps, belt holes).

A: Our natural brass (lacquered) and antique brass finishes are nickel-free. The base C26000 brass contains trace nickel (typically <0.1% as an impurity), but this is below the EU Nickel Directive release limit of 0.5 µg/cm²/week. However, our nickel-plated 3mm brass eyelets obviously contain nickel on the surface and are not suitable for prolonged skin contact. For customers requiring certified nickel-free, Nuote Metals offers a medical-grade version of 3mm brass eyelets with a special lacquer that encapsulates the brass surface. This version passes EN 1811:2011 nickel release testing (result <0.1 µg/cm²/week). Specify “nickel-free medical grade” when ordering—minimum order quantity 10,000 pieces.

Q4: What is the shelf life of 3mm brass eyelets? How should I store them to prevent tarnishing before use?

A: Lacquered 3mm brass eyelets (natural or antique) have a practical shelf life of 2 years when stored in original sealed bags at 15–25°C, humidity <60%. The lacquer prevents oxidation. After two years, the lacquer may become brittle, but the eyelets remain functional. Unlacquered natural brass will tarnish within weeks in humid air—this is cosmetic and does not affect strength. For long-term storage (over 6 months) of unlacquered 3mm brass eyelets, we recommend vacuum-sealed bags with desiccant. Nuote Metals offers nitrogen-flushed packaging for an additional $0.001 per piece (MOQ 100,000). Nickel-plated 3mm brass eyelets have essentially indefinite shelf life under normal conditions.

Why Nuote Metals Is the Right Partner for 3mm Brass Eyelets

10+ years of brass eyelet manufacturing experience

50M+ 3mm brass eyelets produced to date

100% optical sorting for critical dimensions

In-house lab for tensile, hardness, and salt spray testing

Free sample program – evaluate before committing

Transparent documentation – MTC, CoC, RoHS, and Cpk reports

Global shipping – from our factory to your door in 5–15 days

Contact Nuote Metals today to request a sample pack of 3mm brass eyelets or to receive a compliance package for your regulatory files.
