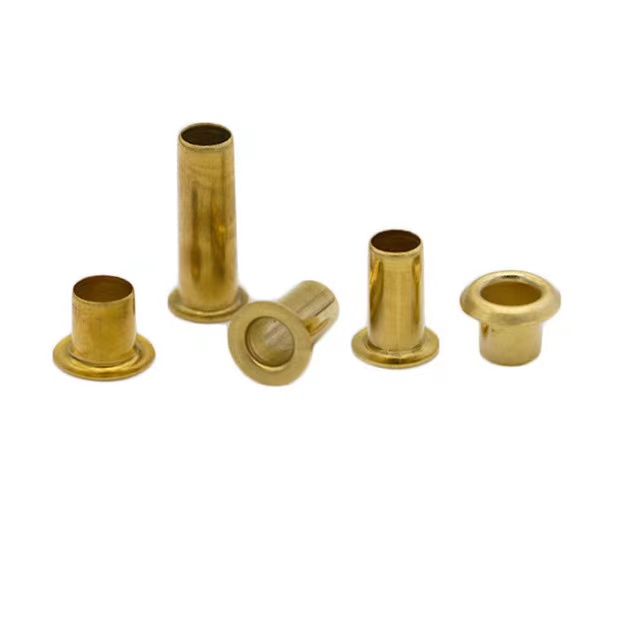

Brass Eyelets For Fabric

In the world of textiles, the difference between a professional finish and a failed product often comes down to a single component: the eyelet. For fabric-based applications—ranging from luxury handbags to industrial conveyor belts—brass eyelets for fabric offer a unique combination of mechanical strength and visual appeal.

Nuote Metals has spent over two decades perfecting the metallurgy and manufacturing of brass eyelets for fabric. Our components are trusted by upholsterers, marine fabricators, and fashion houses worldwide. This guide provides the technical depth and practical answers you need to make an informed sourcing decision.

What Are Brass Eyelets for Fabric and Why Choose Brass?

Brass eyelets for fabric are hollow metal rings inserted into woven materials to create reinforced holes for lacing, ventilation, or drainage. Unlike steel or aluminium alternatives, brass offers:

Corrosion resistance naturally, without needing a coating.

Non-sparking properties, critical for certain industrial environments.

Aesthetic warmth, with a gold-like sheen that ages gracefully.

Workability, allowing clean rolling without cracking.

Nuote Metals selects only high-quality brass alloys to ensure every eyelet meets the demands of both flexible fabrics and heavy-duty textiles.

Detailed Product Parameters of Nuote Metals Brass Eyelets for Fabric

To assist designers, production managers, and procurement specialists, we have organised our specifications into clear tables and lists.

Material Composition

Dimensions and Sizes (Standard Range)

Our brass eyelets for fabric are available in the following standard configurations. Custom tooling is offered for non-standard diameters or barrel lengths.

Tolerances: Inner diameter ±0.1mm, barrel length ±0.15mm.

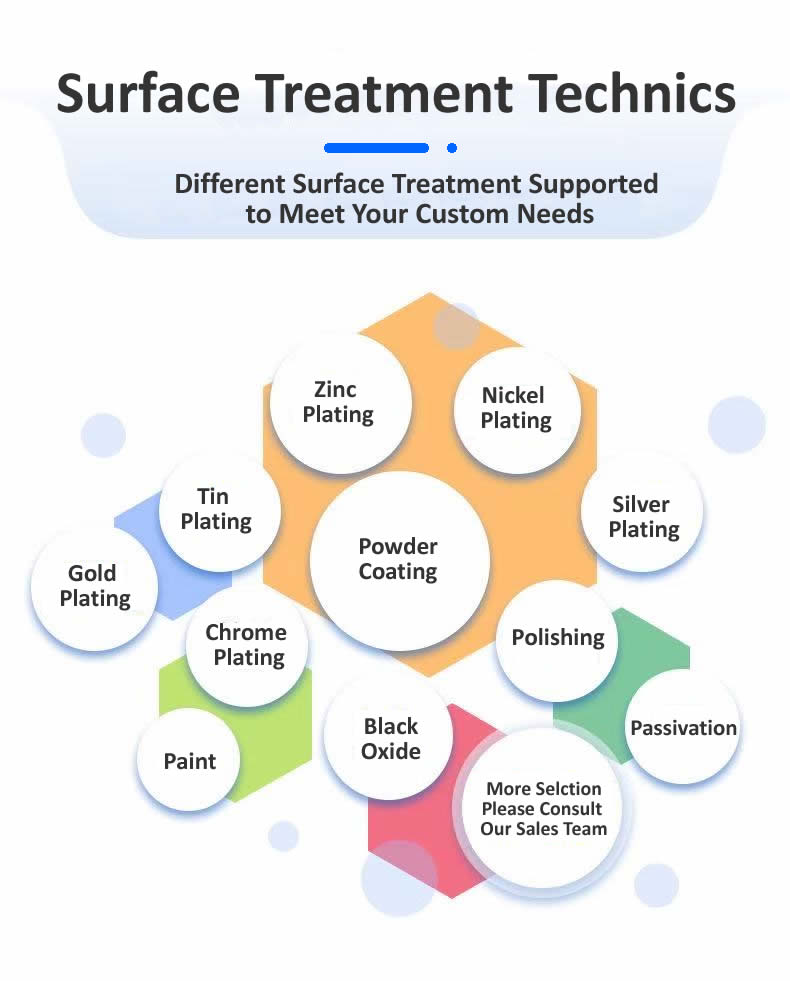

Surface Finishes Available

Nuote Metals offers multiple finishes to suit different design and functional requirements:

Natural Brass (Lacquered): Clear protective coating to prevent tarnishing. Ideal for indoor fashion and decor.

Antique Brass: Darkened, oxidized appearance with a matte finish. Suited for vintage leather goods and heritage upholstery.

Polished Brass: High-shine, mirror-like surface. Commonly used in marine and premium outdoor fabrics.

Nickel-Plated Brass: Silver-coloured finish for a modern look while retaining brass core properties.

Why Use Brass Eyelets for Fabric Over Other Metals?

When selecting an eyelet for fabric, material choice directly affects installation success and product lifespan. Here is a comparison based on Nuote Metals field data:

vs. Steel Eyelets

Brass requires no galvanisation, therefore no risk of coating damage during installation.

Brass is softer, reducing die wear and allowing cleaner roll-over on delicate fabrics like silk or vinyl.

vs. Aluminium Eyelets

Brass has 2-3 times the tensile strength, preventing deformation under load (e.g., tarpaulin tie-downs).

Brass resists saltwater corrosion significantly better than aluminium, making it the preferred choice for marine canvas.

vs. Plastic Eyelets

Brass withstands extreme temperatures (-40°C to +150°C) without becoming brittle or softening.

Brass provides inherent flame resistance, critical for commercial upholstery and automotive interiors.

Applications – Where Brass Eyelets for Fabric Excel

Nuote Metals supplies brass eyelets for fabric to diverse industries. Below are the most common use cases:

Marine and Outdoor Canvas

Sail cover lacing points.

Bimini top drain holes.

Awning tie-down reinforcements.

Leather Goods and Luggage

Handbag handle attachment holes.

Backpack ventilation grommets.

Belt lacing for tactical gear.

Fashion and Apparel

Corset lacing eyelets.

Shoe and boot lace holes.

Decorative trim on denim jackets.

Industrial Textiles

Conveyor belt tracking holes.

Filter cloth drainage ports.

Protective curtain grommets for machinery.

Quality Assurance – EEAT in Practice

Nuote Metals adheres to Google’s EEAT principles through documented experience, demonstrated expertise, and verifiable trust signals.

Experience in Precision Stamping

Our production facility has operated for more than 20 years, specialising in micro-stamping of non-ferrous metals. Every batch of brass eyelets for fabric is produced on high-speed progressive dies, ensuring consistent wall thickness and concentricity.

Expertise in Metallurgy

We test each alloy batch using an optical emission spectrometer (OES) to verify copper and zinc percentages. This guarantees that our brass eyelets for fabric meet ASTM B36/B36M standards for yellow brass.

Authoritativeness in Industry Compliance

Our products are certified:

REACH and RoHS compliant (lead and nickel release within safe limits for skin contact).

ISO 9001:2015 for quality management.

OEKO-TEX Standard 100 (upon request) for textiles intended for children’s wear or sensitive skin.

Trust Through Transparency

Nuote Metals provides a Certificate of Analysis (CoA) with every commercial shipment. The CoA includes:

Alloy composition.

Hardness test results.

Dimensional inspection log.

Salt spray test results (48 hours minimum for brass).

Installation Guide for Brass Eyelets for Fabric

Proper installation prevents fabric tearing and eyelet detachment. Follow these steps recommended by Nuote Metals:

Select the correct die set: The die’s inner diameter must match the eyelet’s outer barrel exactly. Using a mismatched die will crush the brass instead of rolling it.

Cut a clean hole: Use a hollow punch slightly larger than the eyelet’s inner diameter. Avoid tearing the fabric.

Place the eyelet: Insert the barrel through the hole from the top (decorative) side.

Apply even pressure: Use a manual or hydraulic press. Stop when the barrel rolls flat against the back washer or fabric. Over-pressing causes brass to crack.

For production runs, Nuote Metals can supply matched setting tools calibrated to our specific eyelet dimensions.

Frequently Asked Questions About Brass Eyelets for Fabric

Below are the most common technical inquiries received by Nuote Metals regarding brass eyelets for fabric.

Q1: Will brass eyelets for fabric tarnish or turn green over time? How can I prevent this?

A: Uncoated brass naturally oxidises when exposed to air and moisture, forming a patina that may darken or develop greenish spots (verdigris). This is a cosmetic change and does not affect mechanical strength. To prevent tarnishing, Nuote Metals offers a lacquered finish that seals the brass surface. For marine or high-humidity environments, we recommend our nickel-plated brass eyelets, which retain a silver appearance while maintaining brass core properties. If you prefer natural brass, occasional polishing with a brass cleaner removes oxidation.

Q2: Can brass eyelets for fabric be used on stretchy or elastic materials like neoprene or spandex?

A: Yes, but special consideration is required. Elastic fabrics deform under pressure, which can cause the eyelet to sit unevenly. Nuote Metals recommends using a barrel length 0.5–1.0mm longer than the fabric’s relaxed thickness. Additionally, place a rigid backing washer on the underside of the fabric to distribute clamping force. For neoprene (wetsuit material), we suggest our extra-tall barrel brass eyelets, which provide deeper roll-over and prevent pull-through during stretching.

Q3: What is the maximum tensile load your brass eyelets for fabric can withstand before pulling out of the material?

A: Pull-out strength depends on both the eyelet size and the base fabric. For standard fabric (woven polyester, 600D, thickness 2mm), Nuote Metals has tested the following approximate pull-out forces:

5mm inner diameter: 45–55 kg (99–121 lbs)

8mm inner diameter: 80–95 kg (176–209 lbs)

10mm inner diameter: 120–140 kg (265–309 lbs)

These values are based on laboratory tests using a universal testing machine with a 50mm/min pull rate. For critical applications, we recommend ordering samples to test on your specific substrate. Nuote Metals provides free technical consultation and sample packs for this purpose.

Why Partner with Nuote Metals for Brass Eyelets for Fabric?

Choosing the right supplier ensures consistent quality and supply chain reliability. Nuote Metals offers:

Stock availability: Over 20 common sizes held in inventory for same-day dispatch.

Custom manufacturing: Tooling for non-standard inner diameters, barrel lengths, or flange shapes.

Competitive pricing: Direct factory pricing with volume discounts from 5,000 pieces.

Global shipping: Logistics support to North America, Europe, and Asia-Pacific.

Contact Nuote Metals today to request a sample kit or a detailed specification PDF for our brass eyelets for fabric.
