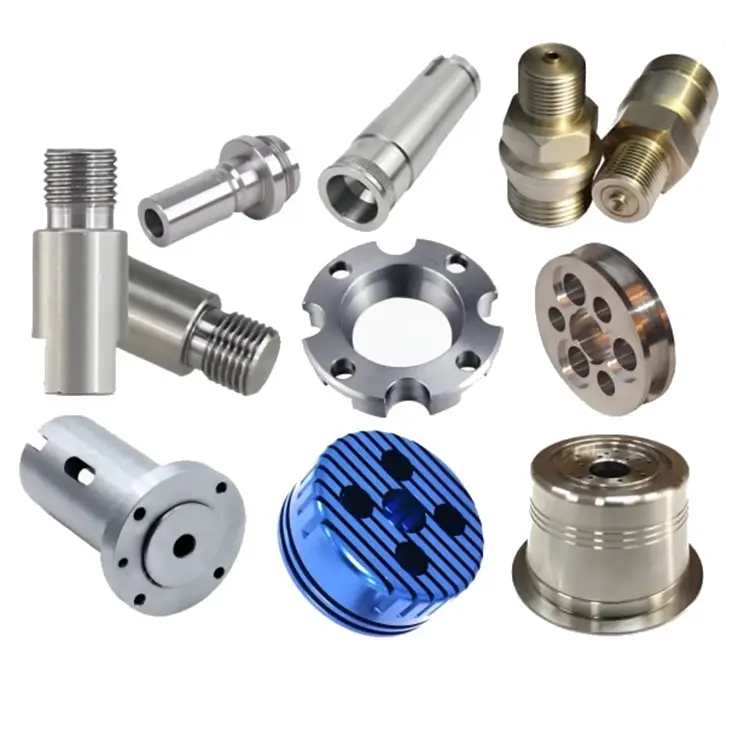

CNC Machined Parts

When a stamped part cannot hold the tolerance, when a casting cannot achieve the surface finish, or when the geometry is too complex for any other process – that is when engineers specify CNC machined parts.

Unlike stamping or casting, CNC machining removes material rather than forming it. This subtractive process allows for geometries that are simply impossible with other manufacturing methods: undercuts, threaded holes, deep cavities, tight-radius corners, and features that must be positioned within microns of each other.

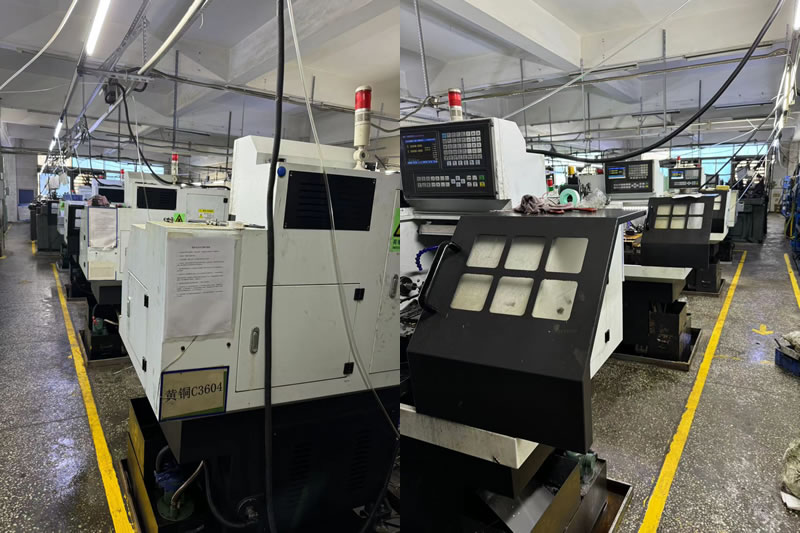

At Nuote Metals, we operate a fleet of CNC machining centers – including 3‑axis, 4‑axis, and 5‑axis milling machines, as well as CNC lathes for turning operations. We produce CNC machined parts for industries where precision is not negotiable: aerospace, medical devices, automotive, robotics, and industrial automation.

CNC Machining vs. Other Manufacturing Processes – When to Choose Machining

Not every part should be machined. But when precision, complexity, or material properties demand it, CNC machining is the only choice.

Choose CNC machining when:

• Your tolerances are tighter than ±0.05mm
• Your part has undercuts, threads, or deep cavities
• You need a specific surface finish
• Your material is difficult to form or cast
• Your volume is below 10,000 pieces per year

Our CNC Machining Capabilities – Equipment, Materials, and Tolerances

Machine Capacity

We operate a comprehensive CNC machine shop with capabilities across multiple axes and processes:

Material Capabilities

Dimensional Tolerances

We hold tight tolerances across all machining processes. Standard tolerances are conservative – we can often hold tighter upon request.

One Real Application – Surgical Instrument Component

A medical device manufacturer needed a precision component for a surgical stapler – a complex part with a cannulated (hollow) shaft, multiple undercuts, a threaded tip, and a highly polished surface finish. The part had to be manufactured from 17‑4 PH stainless steel and hold tolerances of ±0.01mm on critical features. Annual volume was 5,000 pieces – too low for investment casting, too complex for stamping.

We recommended CNC Swiss‑type turning with live tooling for secondary milling operations. The part was produced in a single setup, eliminating the tolerance stack‑up of multiple operations. The threaded tip was rolled post‑machining to improve fatigue strength. The customer received first articles in 15 business days. After validation, we produced 5,000 pieces with zero dimensional rejects. The customer has since expanded their product line, and we now produce components for three additional surgical instruments.

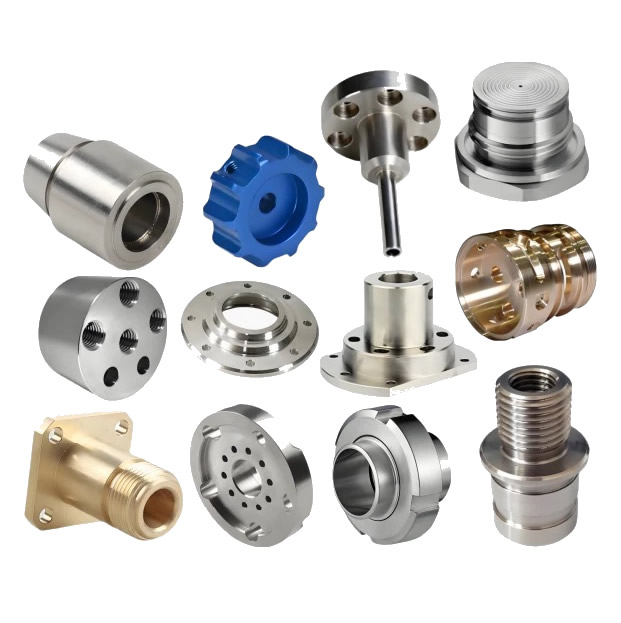

Where They Are Used

CNC machined parts are essential across virtually every advanced industry:

• Aerospace – Structural components, engine parts, landing gear components, satellite brackets, hydraulic fittings
• Medical devices – Surgical instruments, implantable device housings, orthopedic components, diagnostic equipment parts
• Automotive – Engine components, transmission parts, suspension components, sensor housings, prototype parts
• Robotics and automation – Robot arms, end‑effectors, gearboxes, custom actuators, sensor mounts
• Electronics – Enclosures, heat sinks, connector housings, shielding components, test fixtures
• Industrial equipment – Pump components, valve bodies, manifold blocks, gear housings, machine tool parts
• Oil and gas – Downhole tools, valve components, seals, connectors, custom fittings
• Defense – Firearm components, optical mounts, vehicle parts, communication equipment housings

How We Manufacture CNC Machined Parts – From Drawing to Delivery

Step 1: Design Review and DFM Analysis

You provide a 2D drawing or 3D model (STEP, IGES, or SolidWorks). Our engineers review the design for manufacturability – checking feature accessibility, tooling requirements, material selection, and tolerance feasibility. We provide DFM feedback within 2–3 business days, often suggesting cost‑reducing design modifications.

Step 2: Programming and Fixturing

Our programmers develop the CNC toolpaths using CAM software. For complex parts, we simulate the machining process to verify tool paths and detect potential collisions. Custom fixtures are designed and fabricated to hold your parts securely during machining.

Step 3: Material Procurement and Preparation

We source certified materials from approved mills. Raw material is cut to size and, where required, stress‑relieved or pre‑heat‑treated before machining.

Step 4: CNC Machining

Parts are produced on our CNC milling and turning centers. For critical features, we use in‑process probing to verify dimensions and adjust tool offsets automatically – catching deviations before they become rejects.

Step 5: Secondary Operations

We offer a full range of secondary services: heat treatment, surface finishing (anodizing, plating, passivation, powder coating), welding, assembly, and special processes (EDM, wire EDM, grinding) through certified partners.

Step 6: Inspection and Quality Control

Every part is inspected according to your drawing requirements. We provide full dimensional inspection reports, material certificates, and, where required, First Article Inspection (FAI) reports per AS9102 or customer specifications.

Step 7: Packaging and Shipping

Parts are packaged to prevent damage during transit – individually wrapped, layered, or custom‑fixtured as needed. We ship by air or sea, with full tracking and documentation.

Quality Assurance – What We Check, Why It Matters

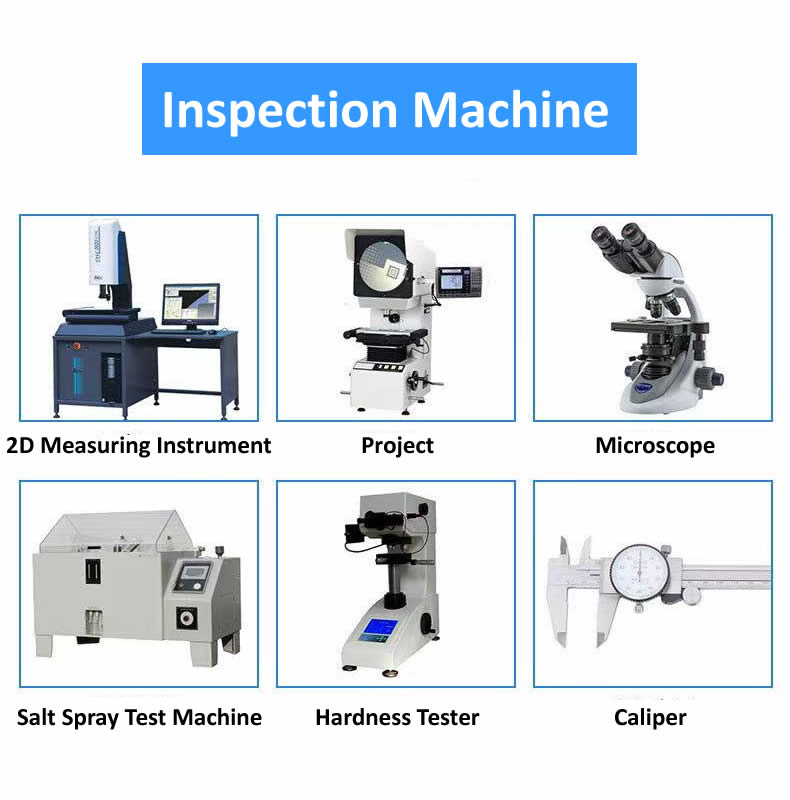

Our inspection equipment:

• Coordinate Measuring Machine (CMM) – Full 3D dimensional verification
• Profile projector (optical comparator) – Contour and thread inspection
• Surface roughness tester – Surface finish verification
• Rockwell hardness tester – Heat treatment verification
• Laser micrometer – High‑speed, non‑contact diameter measurement
• Spectrometer – Material composition verification
• Thread gauges – GO/NO‑GO thread verification

All equipment is calibrated annually by accredited third‑party labs. Inspection records are retained for ten years – essential for medical, aerospace, and defense traceability.

What Our Customers Say – Real Feedback

Your Order – What We Send You

When your CNC machined parts arrive, you receive a complete record of what was produced and how it was verified.

What you will find in the box:

• Parts in protective packaging – Labeled with part number, batch number, and quantity
• Material certificate – Chemical composition and mechanical properties from the original mill
• Dimensional inspection report – Actual measurements from the production batch
• CMM inspection report – For critical dimensions (if required)
• First Article Inspection (FAI) report – Complete dimensional verification per AS9102 or customer format (for new parts)
• Special process certificates – Heat treatment, plating, anodizing, or other secondary processes (if applicable)
• Certificate of Conformance – Signed by our QA manager, batch‑traceable

Certified to: ISO 9001:2015. AS9100 (aerospace) and ISO 13485 (medical) compliance available upon request. RoHS and REACH declarations provided.

Three Questions We Answer Often

Q: "What is the typical lead time for CNC machined parts?"

A: Lead times depend on part complexity and quantity. For simple parts, we can deliver first articles in 7–10 business days. Complex parts requiring 5‑axis machining or special materials may take 15–20 business days. Production lead times for orders of 100–1,000 pieces typically range from 10–15 business days after first article approval. We offer expedited services for urgent requirements.

Q: "What is the minimum order quantity (MOQ) for CNC machined parts?"

A: Unlike stamping, CNC machining does not require expensive tooling – our MOQ is as low as 1 piece for prototypes. For production orders, we typically recommend quantities of 50–500 pieces to optimize setup costs, but we can accommodate any quantity. We are happy to produce prototype quantities for testing and validation before committing to larger production runs.

Q: "What information do you need to provide a quote?"

A: To provide an accurate quote, we need:

• A 2D drawing (PDF) or 3D model (STEP, IGES, or SolidWorks) with dimensions and tolerances
• Material specification (grade and condition)
• Quantity required (prototype or production)
• Surface finish or coating requirements
• Any special requirements (heat treatment, certification, packaging)

With this information, we provide a budgetary quote within 24 hours and a firm quote within 3–5 business days. We also offer free DFM analysis – we review your design and suggest improvements before machining begins.

Nuote Metals – Dongguan, China. ISO 9001:2015 certified. Free DFM review and samples available. Contact us with your drawing – we will respond within 24 hours with tooling cost, piece price, and lead time.
