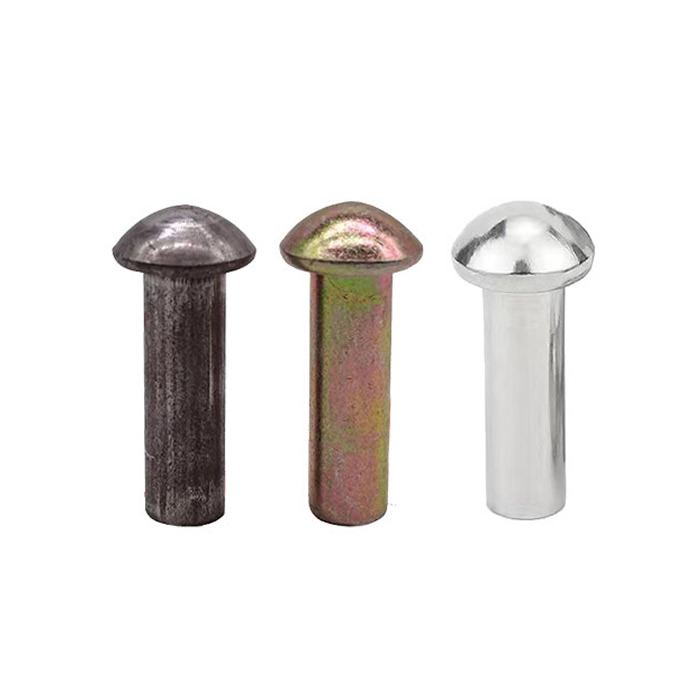

Iron Solid Rivets

When the joint needs to hold permanently, carry heavy loads, and keep costs under control – iron solid rivets are the answer. Not flashy. Not expensive. Just strong, reliable, and proven over centuries of industrial use.

Two Questions – One Answer

1. Does this joint need maximum strength? Iron solid rivets deliver 400–500 MPa tensile strength – higher than brass, higher than aluminum, and comparable to many stainless steels.

2. Does the budget matter? Low‑carbon steel costs significantly less than specialty materials. When you are ordering 50,000+ rivets, that difference is real money.

If you answered yes to both, iron solid rivets are your answer. Pair them with zinc plating or black oxide finish for corrosion protection – and you have a fastener that works as hard as your equipment.

Head Style Options – Which One Fits Your Assembly

One Real Application – Agricultural Sprayer Frame

A manufacturer of agricultural sprayers had a recurring problem: semi‑tubular rivets at the main frame joints loosened under continuous vibration from the engine and uneven terrain. Field failures were increasing, and warranty claims were rising.

We supplied zinc‑plated iron solid rivets – 6.0mm shank, 10.5mm round head, 18.0mm overall length. Solid construction delivered permanent clamping force that does not loosen under vibration. Zinc plating provided corrosion protection for agricultural conditions. Cost was significantly lower than stainless steel. The customer tested 200 rivets across 50 sprayers. After 2,000 hours of field operation, zero loosening, zero failures. They now order our rivets in batches of 200,000 pieces annually.

How We Produce Rivets – From Coil to Finished Product

Iron solid rivets are manufactured through cold heading – a process that shapes metal at room temperature using high‑speed presses and precision dies.

Material procurement – Certified low‑carbon steel wire (1008/Q195) from approved mills. Each coil comes with a mill test certificate and heat number for full traceability.

Wire drawing – Drawn to exact shank diameter, tolerance ±0.02mm.

Cold heading – Multi‑station cold header performs cut‑off, squaring, and head forming (round, flat, oval, countersunk, truss, or mushroom) in a single continuous sequence.

Trimming – Flash around the head edge is removed for a clean, burr‑free finish.

Tumbling – Micro‑burrs removed and surface prepared for plating.

Plating – Zinc or black oxide finish applied as specified. Plating thickness verified by XRF.

Final inspection – 100% optical sorting for critical dimensions. AQL sample manually verified.

Lead time: 5–10 days for standard specifications; custom tooling: 15–20 days.

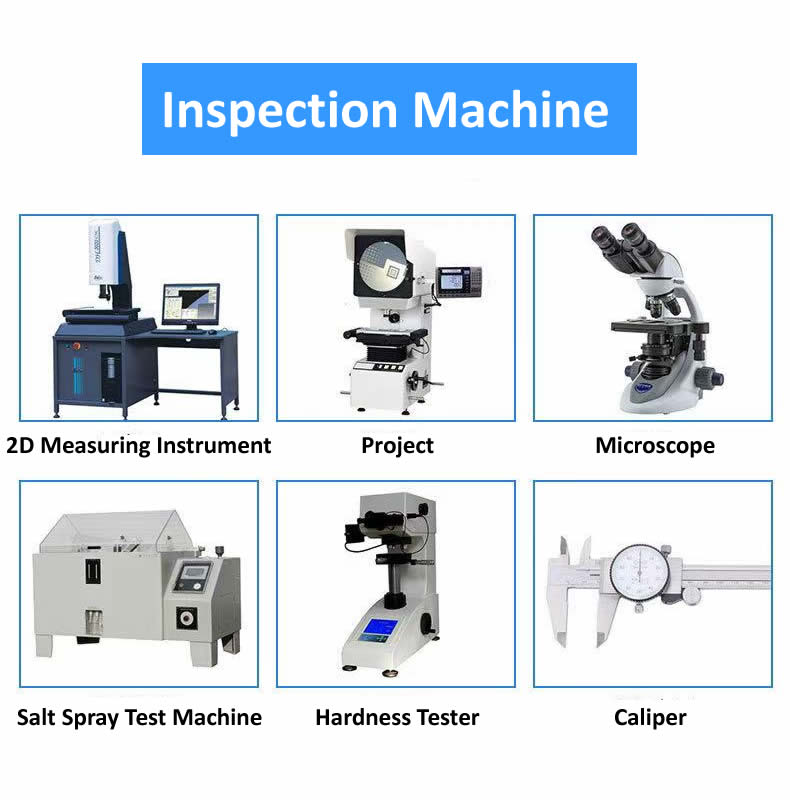

Our Inspection Equipment – How We Verify Quality

We maintain a full range of calibrated inspection equipment to ensure every batch meets your specifications:

All equipment is calibrated annually by accredited third‑party labs. Inspection records retained for five years.

Trusted by Customers Across Industries

We supply iron solid rivets to manufacturers worldwide – from agricultural equipment builders to construction machinery producers to heavy furniture makers. The images above show some of our valued partners visiting our facility and collaborating on custom rivet projects.

Three Questions We Answer Often

Q: "Are iron rivets and steel rivets the same thing?"

A: In the fastener industry, yes – both terms refer to the same product: a rivet made from low‑carbon steel (1008, Q195, SPCC grades). "Iron" is historical/colloquial; "steel" is more technically precise. We use both interchangeably.

Q: "Will iron solid rivets rust? How do I protect them?"

A: Uncoated steel will rust. Our standard finish is zinc plating (clear, blue, or yellow) – 48–96 hours salt spray resistance, sufficient for indoor and sheltered outdoor use. For continuous outdoor or coastal exposure, we recommend stainless steel solid rivets.

Q: "What is the difference between iron solid rivets and semi‑tubular rivets?"

A: Solid rivets are fully solid – the entire shank deforms during installation, delivering maximum shear and tensile strength. Semi‑tubular rivets have a hollow cavity that reduces setting force by 70%, but offers 80–90% of the strength. Choose solid for heavy loads and permanent joints. Choose semi‑tubular for high‑volume production where speed is critical.
