Male And Female Rivets

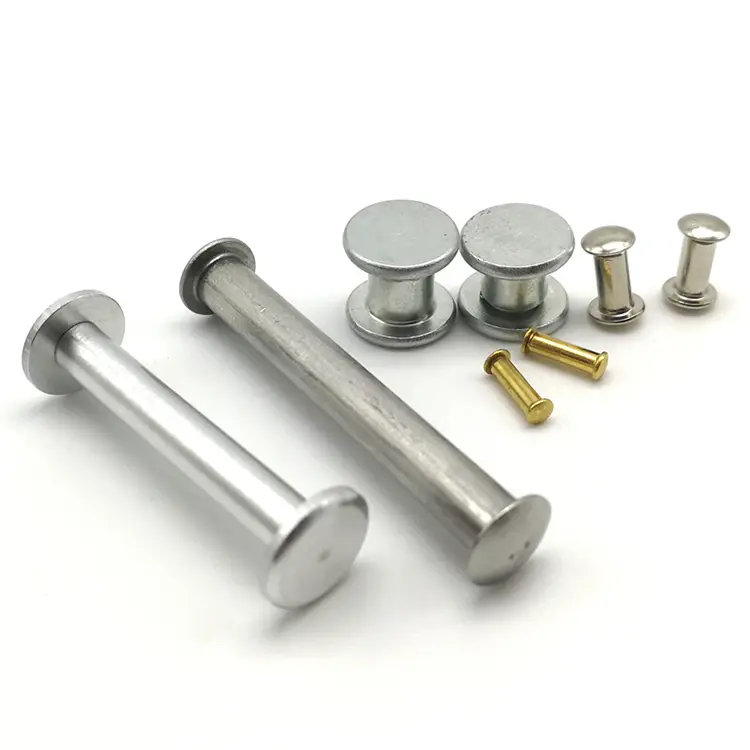

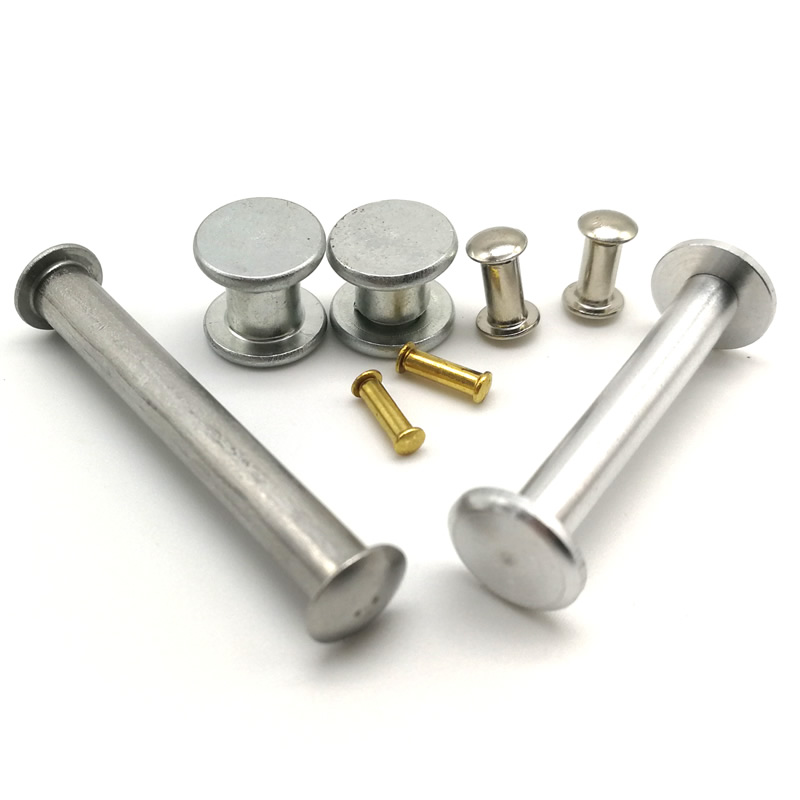

Male and female rivets also called two‑piece rivets, mating rivets, or opposed rivets, these fasteners consist of two separate components: a solid rivet (male) and a semi‑hollow rivet (female). The solid rivet is inserted from one side of the assembly, the semi‑hollow rivet slides over its protruding shank from the other side, and both are set simultaneously with a press or hammer. The solid shank upsets inside the hollow cavity, forming a permanent, secure joint with flush or domed heads on both faces.

Nuote Metals is a China‑based manufacturer of male and female rivets with over 10 years of experience producing these matched fastener pairs. Available in stainless steel, carbon steel (zinc‑plated), aluminum alloy, and brass, with custom diameters and lengths. ISO 9001 certified. Free samples available for stocked sizes. Contact us today.

Two Components, One Perfect Joint – How they Work

Unlike a standard solid rivet that deforms on one side to form a clinch, or a blind rivet that relies on a breakstem, they work as a matched pair. The male component is a solid rivet with a pre‑formed head on one end. The female component is a semi‑hollow rivet with a pre‑formed head on one end and a shallow cavity on the other.

During installation, the male solid rivet passes through the hole from one side, and the female semi‑hollow rivet is placed over the protruding tail from the opposite side. When a press or hammer applies force to both heads simultaneously, the solid shank upsets into the hollow cavity. The result is a permanent joint with a clean, factory‑formed head on both sides—no exposed clinch, no sharp edges, no unfinished surfaces.

Materials and Finishes – What We Offer

Nuote Metals manufactures male and female rivets in multiple material families to match your application requirements.

Finishes: Zinc‑plated, nickel‑plated, passivated, antique, plain.

One Real Application – Garden Fence Gate Hardware

A manufacturer of residential garden fencing and gates was installing decorative metal fences with wood or metal gate posts. The gate hinges and latches needed to be securely attached to the posts while maintaining a clean, finished appearance on both the outside and inside of the gate. Standard solid rivets left an exposed clinch on the inner face that caught on clothing and was unsightly. Screws loosened over time due to the vibration of the gate opening and closing.

The customer needed a fastener that would:

Provide a strong, permanent hold for gate hinges under regular use

Look clean and professional on both sides of the gate

Withstand outdoor weather conditions without rusting

Be simple enough for field installation on assembled gates

Nuote Metals supplied zinc‑plated carbon steel male and female rivets – 5.0mm shank, 10.0mm round head, 14.0mm overall length. The solid male rivet was inserted from the outside of the gate, and the semi‑hollow female rivet was placed over the protruding tail from the inside. A press set both heads simultaneously, creating a clean, domed finish on both faces with no exposed clinch. The zinc plating provided corrosion resistance for outdoor use.

The customer tested 500 rivets across 100 gates. After one year of seasonal outdoor exposure and thousands of gate open‑close cycles, zero loosening, zero corrosion, zero failures. The manufacturer now orders our rivets in batches of 200,000 pieces annually for their entire fence and gate product line.

Standard Options – Custom to Your Specification

They are custom‑produced to your exact requirements. Because the two components must fit together with precision, we match both parts carefully.

What we need from you:

Shank diameter – 1.5mm to 8mm

Overall length – we calculate from your material stack thickness

Head style – round (domed) or flat

Head diameter – matched to your design requirement

Material – carbon steel, stainless steel, aluminum alloy, or brass

Finish – zinc, passivated, nickel, antique, etc.

Sample lead time: 5–7 days standard; custom tooling: 15–20 days.

How We Make Them – Two Parts, One Perfect Match

Male and female rivets are manufactured using two different processes to create the solid and semi‑hollow components that work together as a matched set.

The male component (solid rivet) is produced through cold heading – wire is cut to length, squared, and formed with a pre‑finished head (round or flat). The shank remains solid.

The female component (semi‑hollow rivet) is also produced through cold heading, but with an additional piercing operation that creates a shallow cavity at the tail end. The cavity is sized to accept the shank of the male solid rivet during installation.

The critical factor is consistency. The diameter of the male solid shank and the inner diameter of the female cavity must have a precise fit. Too tight, and the female rivet will not slide onto the male shank. Too loose, and the upsetting of the shank will not fill the cavity fully, resulting in a weak joint.

We produce both components in matched batches and package them together in the correct ratios for your order. Before packaging, we perform frequent test fits – randomly sampling them from the batch and assembling them to check for smooth fit and a clean, secure upset.

Sample lead time: 5–7 days standard; custom tooling: 15–20 days.

One Rivet Pair, Eight Checks – How We Ensure Quality

Every batch of our rivets passes through eight quality gates:

Raw material diameter check – Incoming wire measured with laser micrometer (±0.02mm).

Raw material composition check – Spectrometer verifies material grade.

First article appearance check – First 10 male solid rivets and 10 female semi‑hollow rivets inspected under magnification for cracks or defects.

First article dimensional check – Male shank diameter, female cavity inner diameter, head diameter, and overall length verified on optical comparator.

In‑process checks – 5 male and 5 female rivets every 500 pieces. Any drift stops the press.

Test fit (assembly check) – Every 2,000 pieces, we assemble 3 matched pairs into a sample of your actual material. We check that the female rivet slides cleanly onto the male shank and that the upset fills the cavity tightly.

Salt spray test (if required) – ASTM B117 testing. Certificate issued with batch.

Final outgoing inspection – 100% optical sorting of both components. AQL sample manually verified. Full documentation issued.

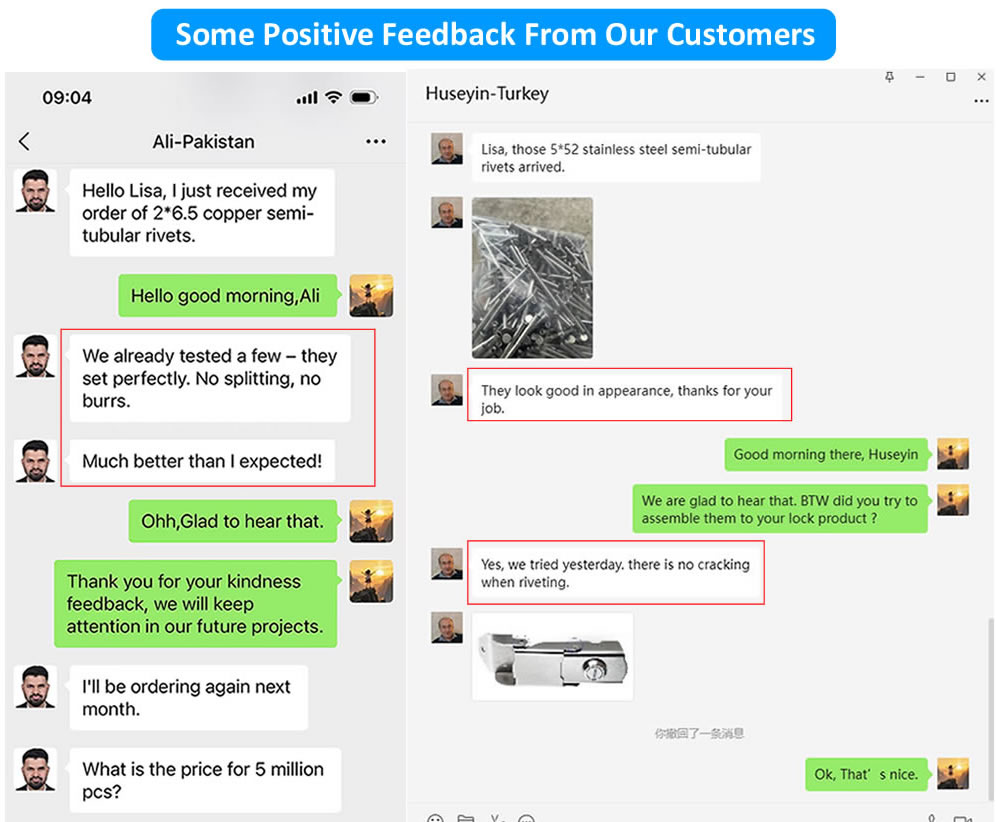

What Our Customers Say – Real Feedback

We let our customers speak for us. The images above show real feedback from manufacturers who have used our rivets in their production lines – from fence and gate manufacturers to leather goods makers to furniture builders.

They come back to us for the same reasons:

• Dual‑side finish – Clean heads on both sides, no exposed clinch
• Precision fit – Male and female components matched perfectly
• Consistent quality – Every batch meets dimensional and performance requirements
• Reliable delivery – Samples ship in 5–7 days, production on schedule

Three Questions We Answer Often

Q: "Can I get samples before ordering production quantities?"

A: Yes – we offer samples for all our products. For standard existing specifications, samples are provided free of charge – you only pay the shipping cost. For custom sizes or custom tooling, sample availability and lead time depend on the specific requirements. Please contact our sales team with your drawing or specification, and they will advise on sample cost and delivery timeline.

Q: "Are they stronger than standard solid rivets?"

A: The strength is comparable to a solid rivet of the same diameter. The male solid rivet provides the core strength; the female semi‑hollow component provides a clean, finished head on the reverse side without relying on an exposed clinch. The swaging action that upsets the male shank into the female cavity creates a permanent mechanical lock that is highly resistant to vibration and pull‑out. For the fence gate case above, the male and female rivets withstood years of gate operation without loosening.

Q: "What is the difference between male and female rivets and standard two‑piece rivets?"

A: They are the same product. "Male and female rivets," "two‑piece rivets," "mating rivets," and "opposed rivets" all refer to the same fastener system: a solid male rivet and a semi‑hollow female rivet that are set together from opposite sides. At Nuote Metals, we use these terms interchangeably. We manufacture the same product under multiple names so you can find us regardless of which term you use.
