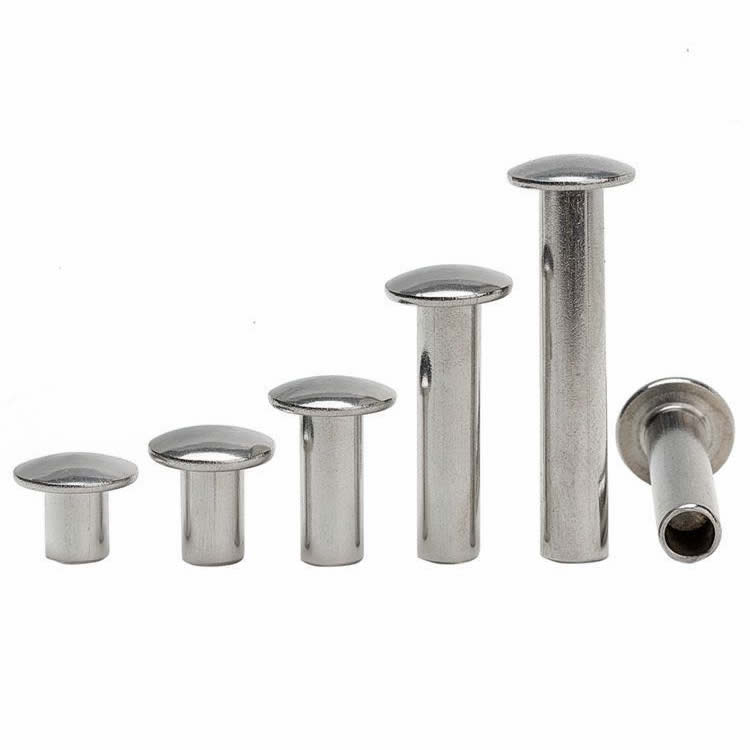

Universal Head Half Hollow Rivets

When a rivet needs to sit lower than a round head but provide more bearing area than a flat head, the universal head offers the ideal balance. Universal head half hollow rivets feature a slightly rounded, low-profile dome that reduces snagging while distributing load across a wider surface. The semi-hollow cavity cuts setting force by approximately 70% compared to solid rivets, making them suitable for automated assembly and delicate materials.

Nuote Metals cold-heads universal head rivets in low-carbon steel, stainless steel (304/316), and brass. Our components serve industries where a clean, low-profile appearance matters—including automotive interiors, luggage, leather goods, electronics enclosures, and furniture assemblies.

What Makes the Universal Head Different

The universal head sits between a round head and a flat head in both height and width. It offers a larger bearing surface than a round head (reducing pull-through risk) while maintaining a lower profile that minimises snagging.

The universal head is the "middle ground" option—wide enough to prevent pull-through in most plastics and fabrics, low enough to avoid snagging on moving parts or clothing, and rounded enough to look finished on consumer products.

Technical Specifications – Materials, Dimensions, and Finishes

Material Options

Standard Dimensions – Universal Head (Steel)

Tolerances: Shank dia ±0.05mm, head dia ±0.15mm, overall length ±0.15mm. Custom barrel lengths available.

Mechanical Data (5mm Steel Universal Head, Set into 2mm Steel Sheet)

The semi-hollow cavity typically retains 80–90% of the shear strength of a solid rivet while requiring significantly less installation force.

Available Finishes

Watch How We Make Rivets

Seeing is believing. Click the video below to see our cold-heading press in action—from wire feeding to finished rivet ejection. The entire sequence runs at 200–300 pieces per minute, with real-time quality monitoring at every stage.

Our multi-station cold header performs squaring, heading, cavity extrusion, and trimming in a single continuous cycle—all while maintaining tolerances of ±0.05mm. What you see is what we deliver, batch after batch.

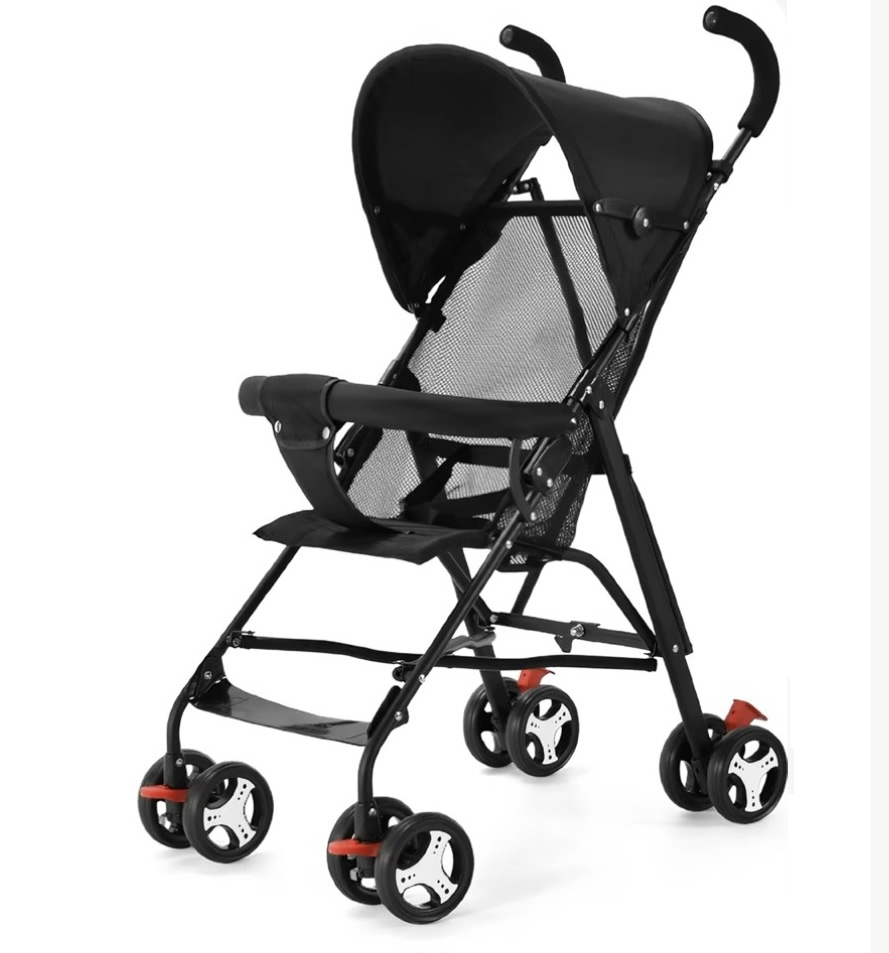

One Real Customer Example – Baby Stroller Folding Hinge

This is one of many applications for universal head half hollow rivets. We include it to show real production use, not to suggest limitation.

A children's product manufacturer approached us with a problem. Their stroller frame used a round head rivet at the folding joint. The round head snagged on the fabric seat as parents folded and unfolded the stroller. Complaints were rising. They needed a rivet that sat lower than a round head, did not look bulky like a truss head, and could handle 10,000 folding cycles.

We recommended universal head half hollow rivets – 5mm shank, 10mm head diameter, zinc-plated carbon steel. The universal head height was only 2.4mm, compared to 3.2mm for round. That 0.8mm difference eliminated fabric snagging. The wider 10mm head also distributed stress better, preventing the plastic bushing from cracking.

The customer tested 500 rivets across 100 strollers. After 10,000 folding cycles, no snagging, no loosening, no cracking. They now order our rivets in batches of 50,000–100,000 pieces.

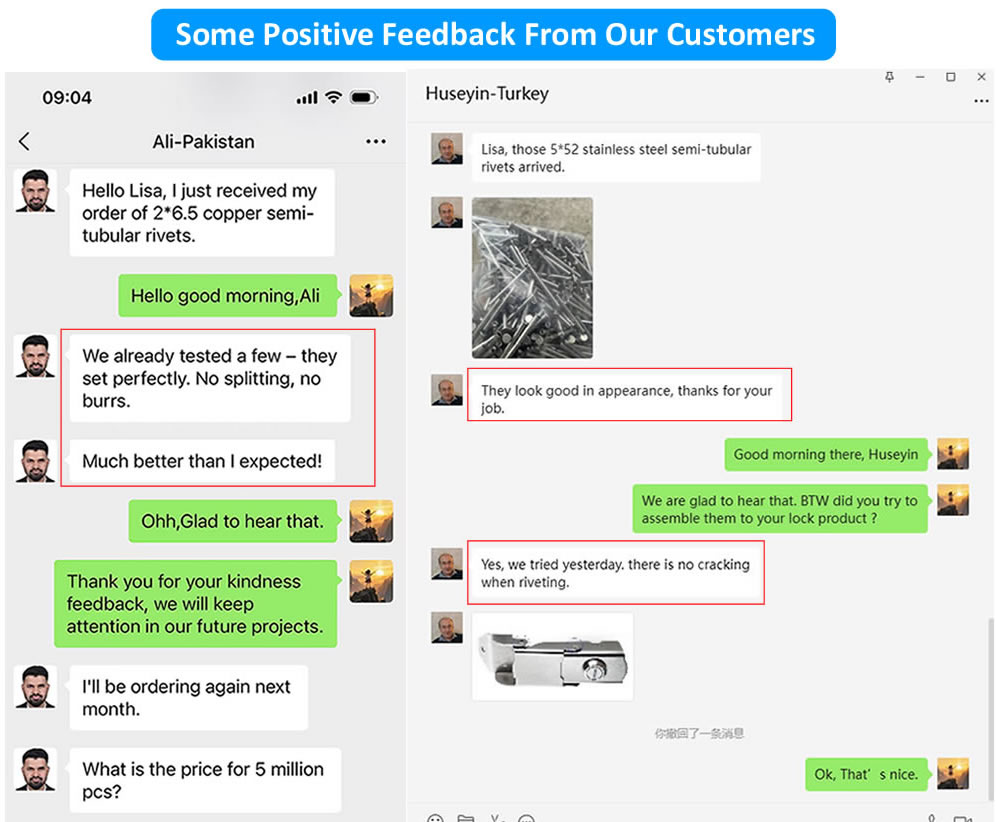

What Our Customers Say – Real Feedback

Where Half Hollow Rivets Are Used

• Baby strollers and prams – Folding hinges, fabric attachment points
• Automotive interiors – Door panel trim, seat covers, grab handles
• Luggage and cases – Handle brackets, corner guards, lock mounting
• Leather goods – Belt holes, bag strap attachments, decorative trim
• Electronics enclosures – Low-profile fastening, chassis assembly
• Furniture – Metal-to-wood joints, upholstery trim
• Soft materials – Canvas, tarpaulins, plastics

How We Cold-Head Rivets

Cold heading shapes metal at room temperature using high-speed presses and precision dies. For universal head half hollow rivets, we use a multi-station cold header.

Wire drawing – Incoming wire is drawn to exact shank diameter.

Cut-off – Wire is cut to precise blank length.

First blow (squaring) – Blank is centred and squared.

Second blow (heading) – Carbide die forms the universal head.

Third blow (cavity extrusion) – Punch creates the semi-hollow cavity (45–55% of barrel length).

Trimming – Flash around head edge is removed.

Tumbling – Micro-burrs are removed.

Plating or passivation – Applied as specified.

Cold heading work-hardens the material, increasing surface hardness by 15–20%. Our carbide dies are polished to Ra 0.1µm for smooth head formation.

Our Quality Control Process – From Raw Material to Your Production Line

Every batch of rivets follows a layered inspection system.

Incoming material stage

Each coil is checked for diameter (laser micrometer, ±0.02mm) and hardness (Rockwell tester). Any coil outside specification is rejected.

Setup and first-off stage

The first 10 rivets are examined under 20× magnification for surface defects, then measured on an optical comparator. Head diameter, head height, shank, length, and cavity depth must match the drawing.

During production stage

Operators pull 5 rivets every 500 pieces. Critical dimensions are checked with digital calipers and a go/no-go gauge. Any drift triggers immediate press stop.

Clinch verification stage

Every 2,000 pieces, we set 3 rivets into a sample of your actual material. The rolled clinch is inspected for symmetry, tightness, and cracks.

Corrosion testing (if applicable)

For plated rivets, samples are placed in our salt spray chamber per ASTM B117. A certificate is issued with the batch.

Final sorting stage

Every rivet passes through an optical sorting machine with high-speed cameras. After sorting, a random AQL sample (Level II, 1.0) is manually verified.

All inspection records are retained for five years and included with every shipment.

Your Order – What's Inside the Box

• Rivets in sealed bags – Labeled with part number, batch number, and quantity
• Dimensional inspection report – 10 rivets measured from the batch
• Material certificate – Mill test certificate for the coil used
• Plating certificate – Thickness and salt spray results (if applicable)
• Certificate of Conformance – Signed by QA manager, batch-traceable

Nuote Metals is ISO 9001:2015 certified. RoHS and REACH declarations are provided on request.

How We Work – Practical Information

• Samples – 20–50 free pieces for standard stocked sizes (customer pays shipping)
• Trial order – 10,000 pieces recommended for first-time validation
• MOQ – 2,000 pieces (steel/brass), 3,000 pieces (stainless)
• Lead time (stock) – 5–7 business days
• Lead time (custom barrel) – 12–15 days
• Tooling charges – None for standard universal head tooling (3–8mm shank)

Three Questions We Answer Often

Q1: When should I choose a universal head half hollow rivet over a round head or a flat head?

A: Choose universal head when you need a larger bearing surface than a round head (to prevent pull-through in soft materials) but you also need a lower profile to avoid snagging. The universal head is wider than round (2.0–2.2× shank vs 1.6–1.8×) and sits lower (35–40% of head diameter vs 40–50%). For the stroller case above, the 0.8mm height difference eliminated fabric snagging. Round head is simpler and cheaper. Flat head is for flush applications. Universal head is the "premium visible" option for mixed-material assemblies.

Q2: Can universal head half hollow rivets be used in plastic without cracking the boss?

A: Yes. The universal head's wider bearing area distributes setting force over a larger surface, reducing stress on brittle materials like ABS and polycarbonate. For plastic, we recommend a barrel length exactly 1.0–1.5mm longer than the material stack, and setting with a press (not a hammer) at controlled force. In the stroller case, the universal head prevented cracking of the plastic bushing that the round head had previously damaged.

Q3: What is the maximum grip range for universal head half hollow rivets in stainless steel?

A: For stainless steel, we recommend grip not exceeding 4× shank diameter. For a 5mm stainless rivet, safe grip is up to 20mm. Beyond that, the barrel may work-harden during setting and crack. For thicker stacks, we recommend low-carbon steel (more ductile) or extending the barrel length with intermediate annealing. We can supply custom barrel lengths up to 30mm for 6mm and 8mm diameters. Contact us with your exact stack thickness for a recommendation.

Request a Quote – Tell Us What You Need

To receive a firm quotation for universal head half hollow rivets, please provide:

• Shank diameter (mm)
• Barrel length (mm) – or your total material stack thickness
• Material (steel / stainless 304/316 / brass)
• Finish (zinc / nickel / black oxide / passivated)
• Estimated annual quantity

You can also attach a drawing, a photo of your current rivet, or a sample part. We will reply within 24 hours with tooling cost (if any), piece price, lead time, and free sample policy.

Send your RFQ to Nuote Metals today. No pressure, no obligation – just a clear, competitive quotation.
