Universal Head Semi Hollow Rivets

Walk through our production floor any given week. You will see us running round heads for heavy equipment, truss heads for soft plastics, and flat heads for electronics. But the tool that gets mounted most often? The universal head die.

Why? Because universal head semi hollow rivets work across the widest range of materials and applications. Not too tall, not too wide, with a smooth radius that refuses to snag. We have shipped over 12 million pieces of this head style in the past 18 months alone.

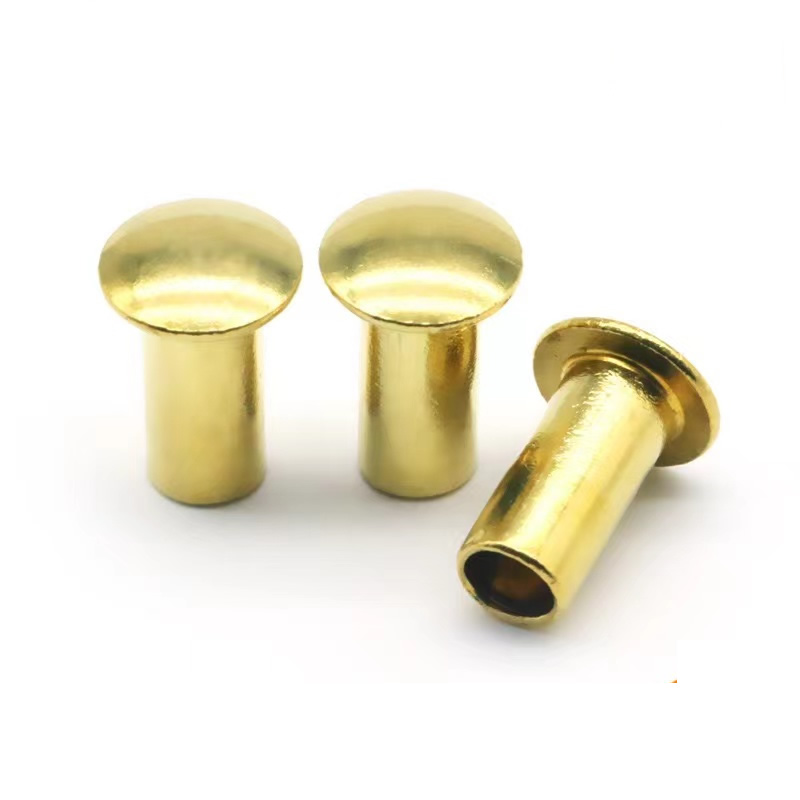

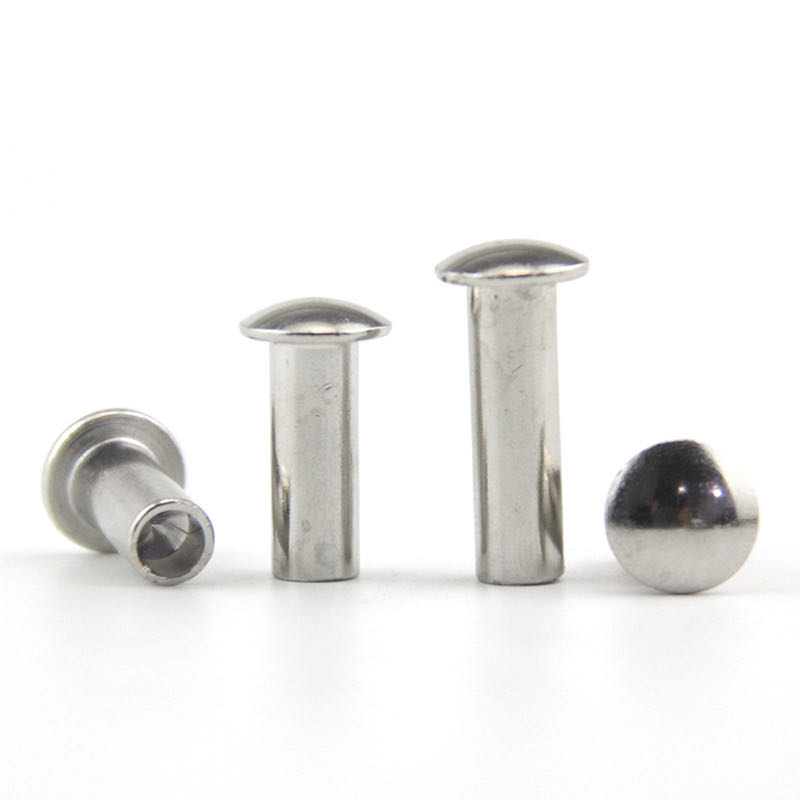

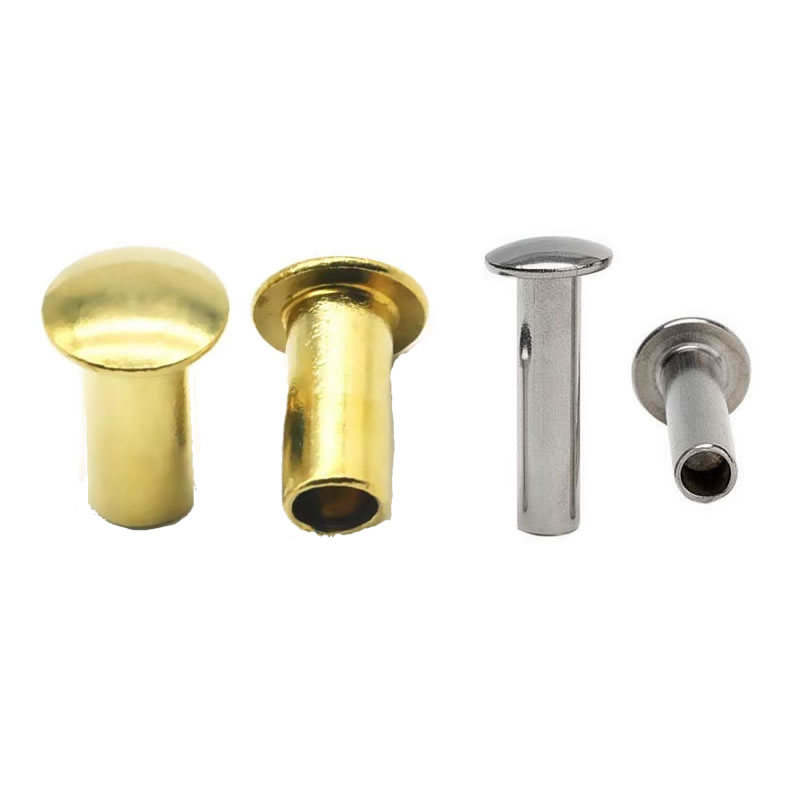

Nuote Metals produces universal head rivets in carbon steel, stainless steel (304/316), and brass. This page tells you two real production stories from our customers, the exact parameters we hold, and why our cold heading process gives you a consistently perfect dome.

Two Production Stories – Straight From Our Order Logs

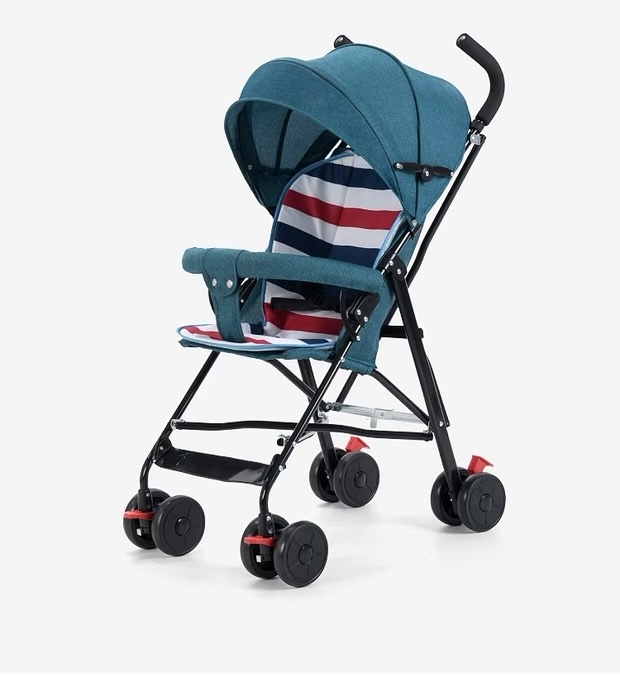

Baby Stroller Frame Assembly (Carbon Steel, Zinc Plated)

A children’s product manufacturer approached us with a problem. Their stroller frame used a round head rivet at the folding joint. The head snagged on the fabric seat as parents folded and unfolded the stroller. Complaints were rising. They needed a rivet that:

Sat lower than a round head

Did not look bulky like a truss head

Could handle 10,000 folding cycles

We recommended universal head semi hollow rivets – 5mm shank, 10mm head diameter, zinc‑plated carbon steel. The universal head height was only 2.4mm, compared to 3.2mm for round. That 0.8mm difference eliminated fabric snagging. The wider 10mm head also distributed stress better, preventing the plastic bushing from cracking.

We supplied 250,000 pieces. After one year of production, the customer reordered twice. No further snagging complaints.

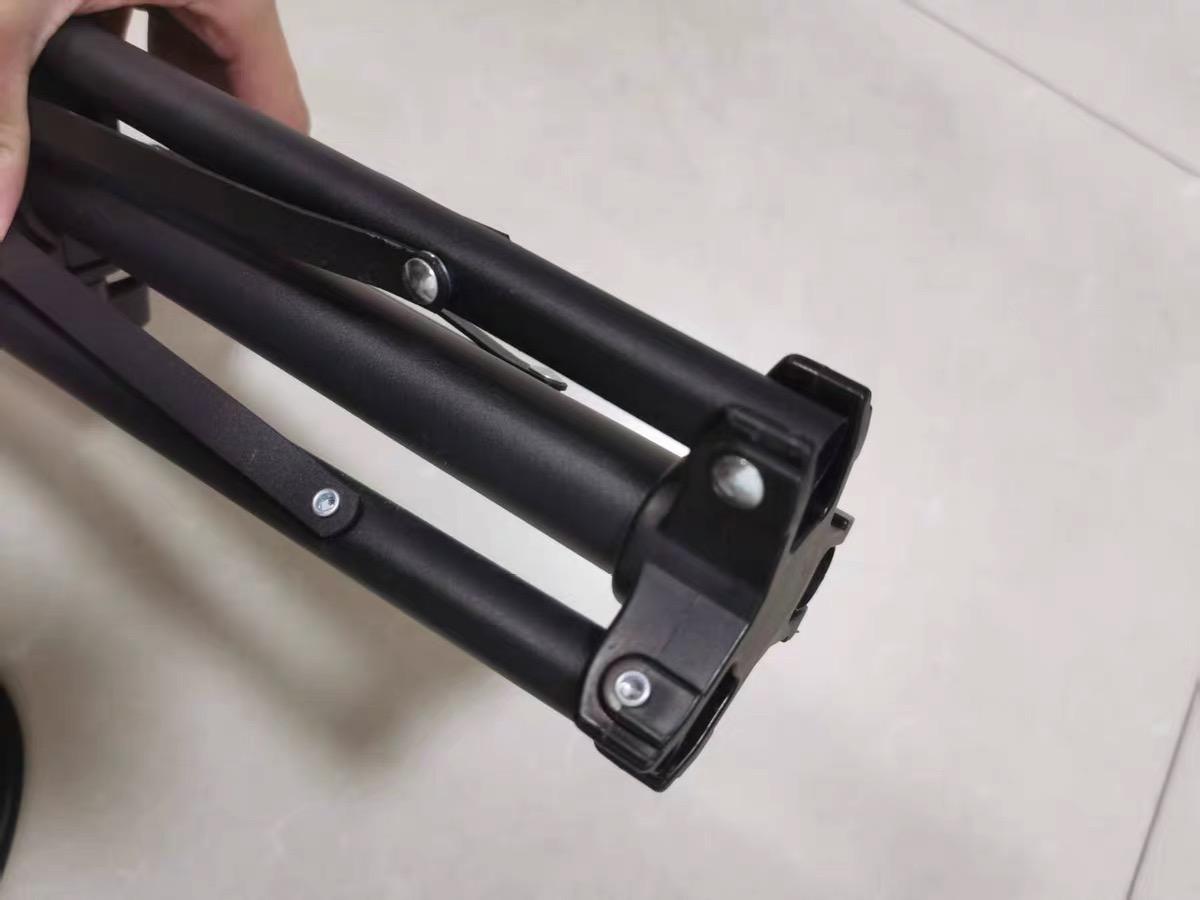

Aluminum Tripod Leg Hinge (steel, Nickel‑Plated)

A tripod manufacturer needed a rivet for the leg hinge that looked premium, resisted corrosion, and did not interfere with the telescoping mechanism. They had tried stainless steel round head rivets. The head height was too tall – it scraped against the inner leg tube.

Nuote Metals offered steel universal head semi hollow rivets with nickel plating. The 4mm shank, 8.5mm universal head sat at only 1.9mm tall – low enough to clear the inner leg. The nickel plating matched the existing hardware finish. The semi‑hollow cavity allowed a light pneumatic press setting without deforming the thin aluminum leg.

The customer has now used over 800,000 of these rivets across four tripod models. Their assembly line runs at 1,200 rivets per hour with zero jams.

What Makes a Universal Head – The Numbers We Actually Use

Universal is not a vague “general purpose” label. It is a specific geometry.

Our universal head sits exactly in the middle. Wide enough for soft materials. Low enough for clearance applications. Rounded enough for consumer goods.

How do Nuote Metals makes a rivet?

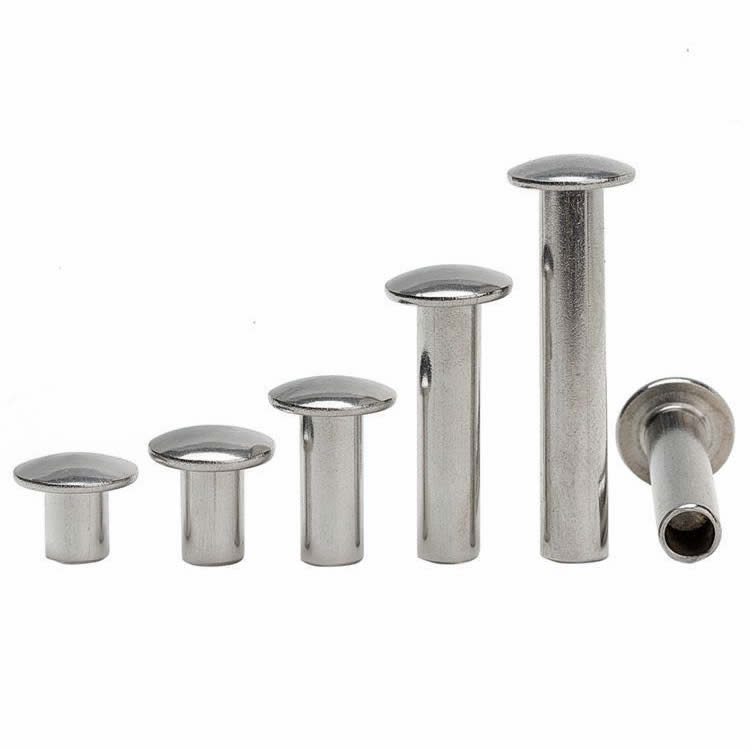

Standard Sizes We Keep on the Shelf

Barrel lengths not listed? Add 5–7 days for custom cutting. Tooling charge waived for orders over 8,000 pieces.

The Cold Heading Difference – How We Get the Dome Right

Universal heads are harder to form than round heads. The wide dome wants to flow unevenly. We solved this with:

• Three‑station progressive headers – One blow would create wrinkles. Three light blows create a smooth, uniform dome.
• Carbide dies with mirror polish – No sticking, no surface drag marks.
• In‑process optical comparator – We check head concentricity every 500 pieces. Tolerance: ±0.10mm.

Our rejection rate for universal head rivets is 0.4%. Most of those rejects are from coil splices, not head forming defects.

What You Get With Every Shipment from Nuote Metals

Mill test certificate – Traceable to the original melt

Dimensional report – 10 pieces measured (head dia, head height, shank, barrel, cavity)

Plating or passivation certificate (if applicable)

Certificate of Conformance – Signed by our QA manager

We are ISO 9001:2015 certified. RoHS and REACH declarations are standard for all materials.

Our Policies – No Games

Samples – 20 pieces free for any standard universal head size. You pay shipping.

MOQ – 2,000 pieces (steel/brass), 3,000 pieces (stainless)

Stock lead time – 5 business days

Custom lead time – 12 business days

Tooling – No charge for standard universal head tooling

Three Questions We Answer Daily

Q1: Our stroller frame uses a plastic hinge bushing. The old round head rivet cracked the bushing. Will universal head semi hollow rivets solve this?

A: Yes. The universal head is 2.0–2.2 times shank diameter, versus 1.6–1.8 for round. That extra width distributes clamping force over a larger area, reducing stress on brittle plastic. We recommend pairing it with a barrel length exactly 1.0mm longer than your material stack – this creates a gentle clinch without over‑compressing the bushing. For the stroller case above (5mm shank, 2.5mm plastic + 1.5mm steel), we used a 6mm barrel length. No cracking after 10,000 cycles.

Q2: Can you make universal head semi hollow rivets in aluminum? Our tripod legs are aluminum, and we want to avoid galvanic corrosion.

A: Yes. We produce universal head rivets in 5056 aluminum alloy. However, aluminum is softer than brass or steel, so the clinch is less aggressive. For the tripod hinge application, brass actually works well with aluminum as long as the environment is dry (indoor studio use). For outdoor tripods, we recommend 304 stainless with a nylon isolating washer, or anodized aluminum rivets. Our tripod customer chose nickel‑plated brass for indoor/outdoor use – no galvanic issues after two years of field data.

Q3: What is the maximum head height variation we can expect from your universal head semi hollow rivets? We use an automated feeder that rejects parts with head height variation >0.15mm.

A: Our standard process holds head height to ±0.10mm. For critical automated feeding, we can tighten to ±0.07mm with 100% laser sorting at no extra charge for orders above 20,000 pieces. We have shipped over 500,000 universal head rivets to an automotive supplier with this exact requirement – zero feeder rejections reported.

See the Universal Head for Yourself

We will mail you 20 pieces of universal head semi hollow rivets in your choice of material and size. No cost. No commitment. Test them on your own assembly line.

Contact Nuote Metals with your diameter, barrel length, and material. Samples ship within 24 hours.
