Round Head Rivets

Round head rivets are the fastener that needs no introduction. They have been used for centuries – on bridges, on machinery, on furniture, on luggage. The round head is universally recognized because it works: it distributes load evenly, resists impact, does not snag, and looks finished. Whether you need steel, stainless, brass, copper, or aluminum – and whether you need solid, semi‑tubular, or full tubular – we make them all, with the same consistent dome every time.

Round Head vs. Flat Head – A Side‑by‑Side Comparison

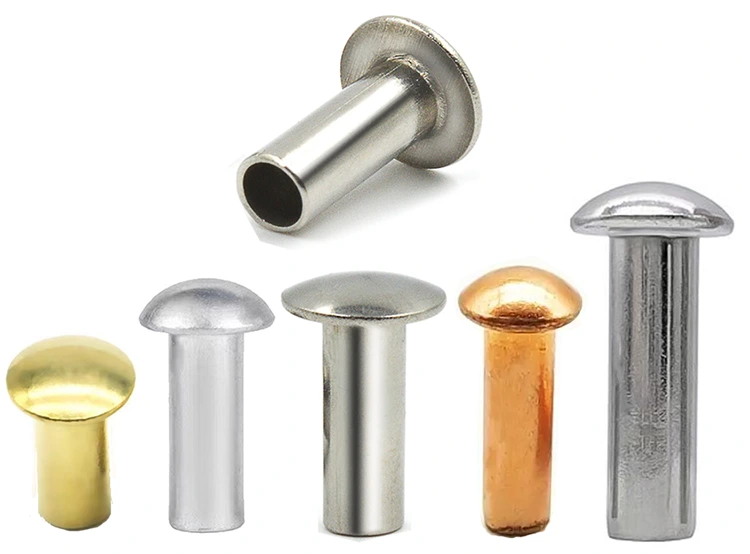

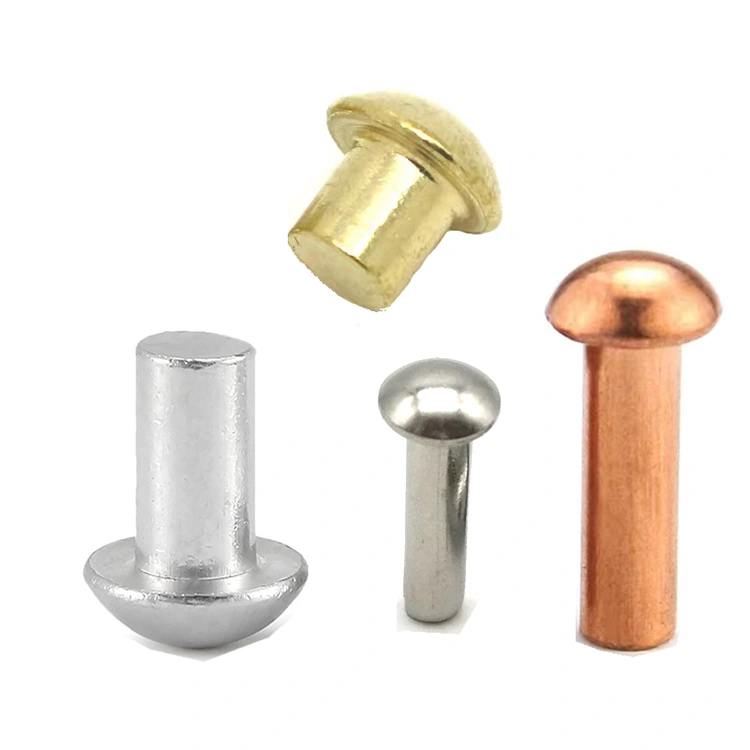

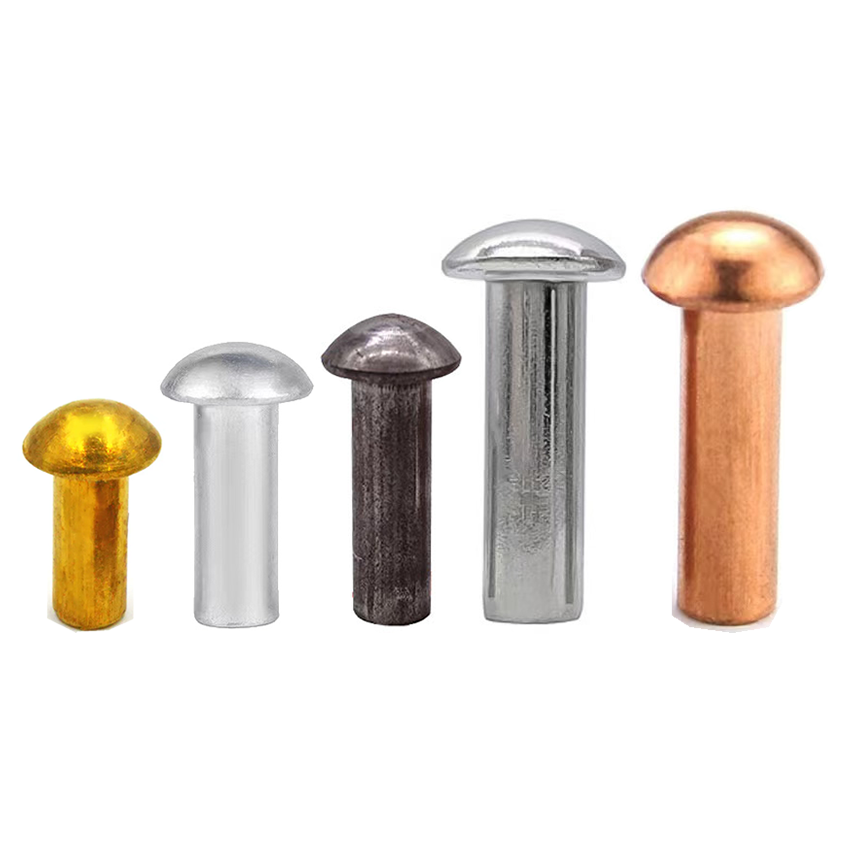

What We Make – Three Designs, Five Materials

Materials available: Low‑carbon steel, stainless steel (304/316), brass (C2680), copper (C11000), aluminum (5052/5056)

Finishes: Zinc‑plated, black oxide, passivated, lacquered, nickel‑plated, antiqued, anodized, plain – depending on material.

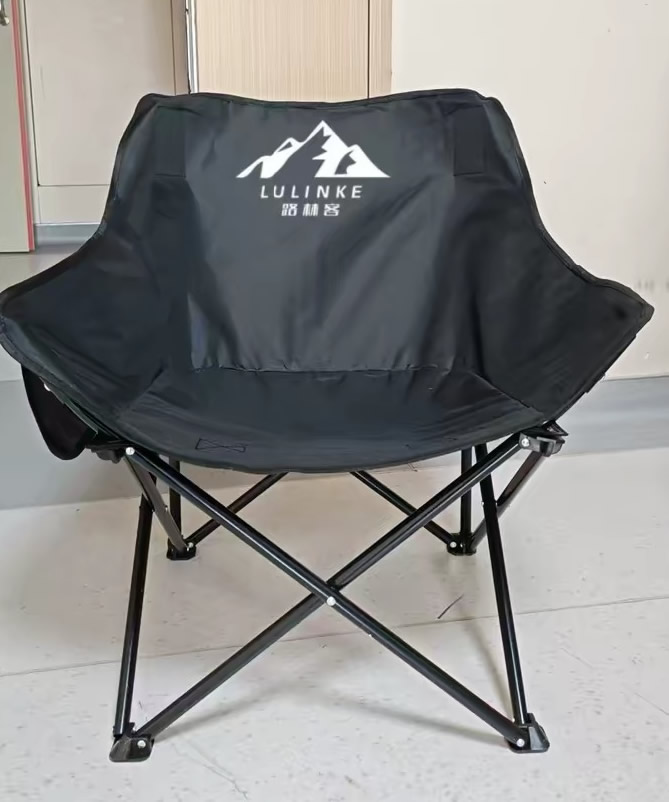

Real Application – Outdoor Folding Chair Frame

A manufacturer of outdoor folding chairs was using semi‑tubular rivets for the scissor‑hinge joints. After two seasons of outdoor exposure, the rivets began to loosen – the hollow walls could not maintain clamping force under continuous expansion and contraction from temperature changes. The customer needed a fastener that would hold permanently and maintain a clean, consistent appearance visible on the finished product.

Nuote Metals supplied 304 stainless steel round head solid rivets – 5.0mm shank, 9.0mm round head, 16.0mm overall length, passivated finish. The solid construction delivered permanent clamping force that would not loosen over time. The 304 stainless provided corrosion resistance against rain and humidity. The round head delivered the classic, consistent appearance the customer wanted for their premium outdoor furniture line.

The customer tested the rivets across 500 chairs. After two years of outdoor exposure and continuous use, zero loosening, zero rust. They now order round head rivets in batches of 300,000 pieces annually.

Standard Options – Sizes, Materials, Finishes

Shank diameters: 1.5 – 8.0mm

Materials: Steel, stainless steel (304/316), brass, copper, aluminum

Design: Solid, semi‑tubular, or full tubular

Finish: Material‑dependent (zinc, passivated, lacquered, nickel, anodized, etc.)

Lengths: Custom to your material stack thickness

Tolerances: Shank ±0.05mm, head ±0.15mm, length ±0.15mm. Custom dimensions available. No tooling charge for standard sizes.

Why the Round Head Has Survived for Centuries – And How We Make It Right

The round head is not a design accident. It has been used for over a century because it solves three problems at once: it distributes load evenly, it resists impact without deformation, and it looks finished without extra finishing work.

Getting it right means controlling three things:

The dome shape – Too flat, and it looks wrong. Too tall, and it catches on everything. Our heading dies are cut to a specific crown radius that matches the classic round head profile. Every rivet gets the same radius.

The concentricity – The head must be centred on the shank. If it is off by more than 0.10mm, the rivet looks lopsided and may not seat properly in your hole. We check this on every batch.

The surface – No tool marks, no scratches, no die transfer. Our carbide dies are polished to a mirror finish. A mark on the die means a mark on every rivet. We do not let that happen.

The result: round heads that look identical from the first piece to the millionth. Same dome. Same height. Same finish.

Quality Checks – What We Verify, Why It Matters

Our process: incoming wire check → first article inspection (10 pieces, every dimension verified) → in‑process checks (5 pieces every 500) → setting test (every 2,000 pieces) → 100% optical sorting → AQL manual sample.

What You Actually Receive – A Complete Record of What We Made

We do not just ship rivets. We ship a record of exactly what was produced and how it was verified.

The package includes:

Material certificate – Shows the chemical composition and tensile strength of the coil used for your batch

Inspection sheet – Actual measurements of 10 rivets from the batch (not just "within tolerance" – the actual numbers)

Finish certificate – Plating thickness verified by XRF (if applicable)

Conformance document – Signed by our QA manager, with a batch number you can trace back

Why this matters: If a field failure ever occurs, you have the records to trace it back to the exact coil of material. We keep copies for five years.

Certified to: ISO 9001:2015, RoHS, REACH

Where Round Head Rivets Are Used

• Furniture – Outdoor chairs, folding tables, hinge assemblies, frame joints
• Automotive – Interior trim, seat components, panel assemblies
• Industrial equipment – Machinery guards, control panels, structural joints
• Hardware – Hinges, brackets, handles, architectural hardware
• Luggage – Handle attachments, corner brackets, hinge pins
• Marine – Deck hardware, canvas attachments, boat fittings
• Aerospace – Interior panels, seat components, trim assemblies

Three Questions We Answer Often

Q1: When should I choose a round head rivet over a flat head or truss head?

A: Choose round head when you want maximum head strength, a classic visible appearance, and the joint does not have clearance constraints. Round heads are taller (2.5–3.5mm for a 5mm shank) and more prominent than flat heads – but they also offer the best impact resistance. If your assembly has sliding parts or tight clearances, choose flat head. If you need extra wide bearing for soft materials, choose truss head. For general‑purpose assemblies where appearance and strength both matter, round head is the standard.

Q2: Which design should I choose – solid, semi‑tubular, or full tubular?

A: Semi‑tubular is the default choice for most applications – 80–90% of solid strength at 25–30% of the setting force. Choose solid when you need maximum strength for structural, load‑bearing assemblies (like the outdoor chair case above). Choose full tubular when you are working with soft materials or need minimal setting force. All three designs are available with the same round head profile.

Q3: What materials are available for round head rivets?

A: We manufacture round head rivets in five material families:

• Low‑carbon steel – Strongest, most cost‑effective, zinc or nickel plated
• Stainless steel (304/316) – Permanent corrosion resistance, passivated as standard
• Brass (C2680) – Conductivity, non‑magnetic, decorative
• Copper (C11000) – Highest electrical/thermal conductivity
• Aluminum (5052/5056) – Lightest, non‑magnetic

We stock all five materials in common shank diameters. If you need a material not listed, we can discuss options.
