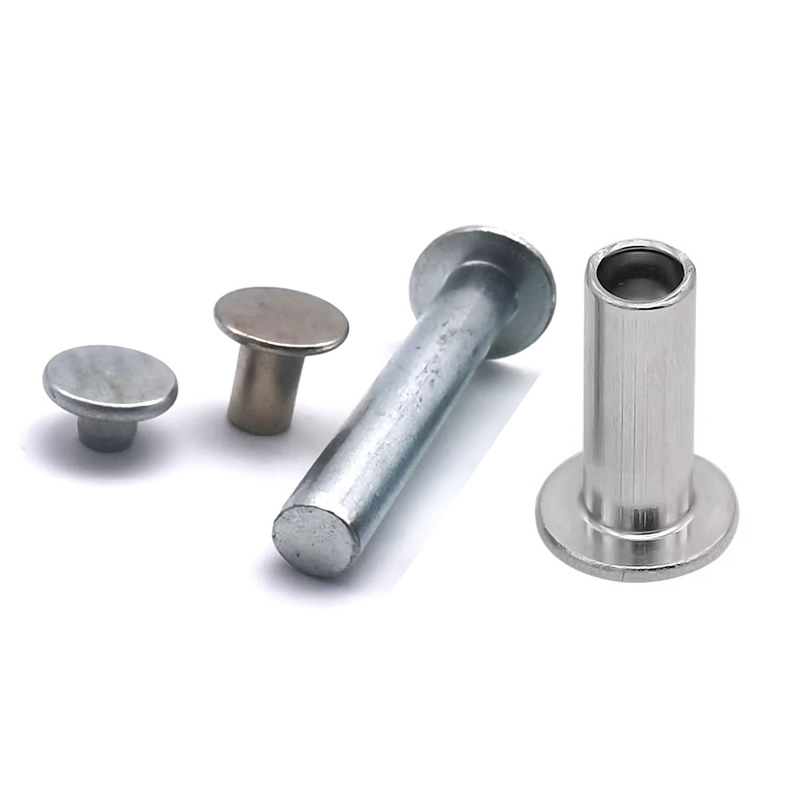

Steel Flat Head Rivets

Steel flat head rivets combine this low profile with the strength and cost‑effectiveness of steel. They are used in structural frames, machinery guards, truck beds, rail components, industrial equipment, and anywhere you want a permanent hold without a domed head sticking up.

Flat Head vs. Round Head – The Low‑Profile Difference

Choose flat head when: You need a low profile but do not want the extra cost and step of countersinking. The rivet will be visible and appearance matters. You need a wide bearing surface to distribute load. Clearance is limited.

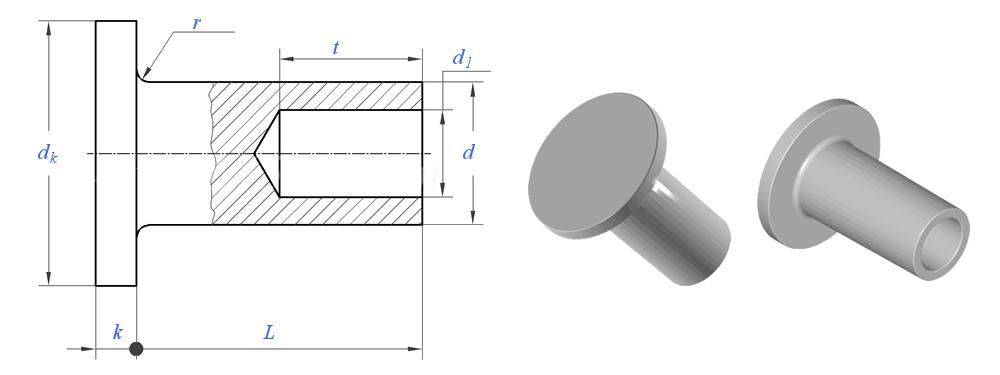

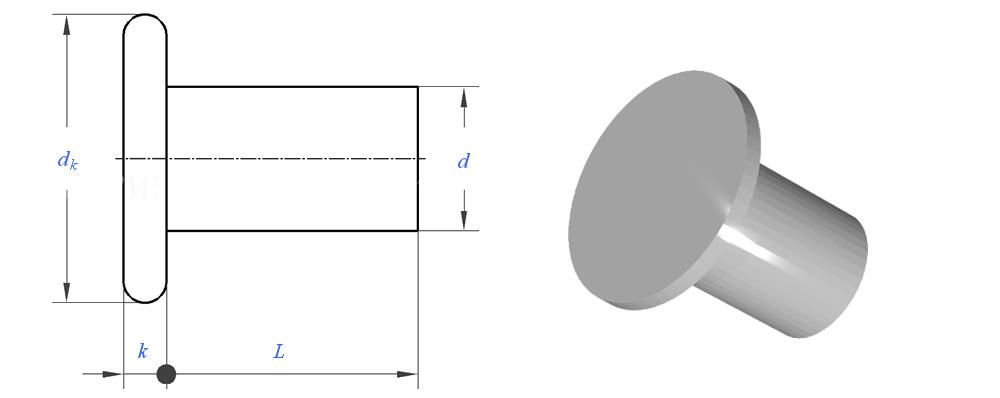

Solid vs. Semi‑Tubular – Which Design Do You Need?

Choose solid for structural joints where maximum strength is required. Choose semi‑tubular for high‑volume production, thin materials, and faster assembly lines. Semi‑tubular rivets only swell at the tail, making them ideal for installation along pivot points and assemblies where the surrounding material must not be damaged.

One Real Application – Industrial Control Panel Enclosure

A manufacturer of industrial control panels needed a fastener for mounting components inside metal enclosures. The panels had to stack flush against each other – any protruding head would cause gaps and scratching during assembly. Countersinking was not feasible due to the thin panel material. The customer needed a low‑profile fastener that would hold securely under vibration.

We supplied zinc‑plated steel flat head semi‑tubular rivets – 4.0mm shank, 8.0mm head, 10.0mm barrel length. The flat head sat only 0.9mm above the panel surface – low enough to clear the mating panels. The semi‑tubular cavity cut setting force from 3.5 tons to 1.0 ton – no deformation of the thin panels. The zinc plating provided corrosion protection for the industrial environment. The customer tested 1,000 rivets across 500 panels. After 100,000 vibration cycles, zero loosening. They now order steel flat head rivets in batches of 300,000 pieces annually.

Where They Are Used

Steel flat head rivets are used across a wide range of heavy‑duty and industrial applications:

Industrial equipment – Machinery guards, control panels, structural frames, assembly line components

HVAC – Ductwork connections, thin sheet metal assemblies, air handling units

Furniture manufacturing – Metal frame joints, hinge assemblies, drawer slides

Automotive – Interior trim panels, seat components, body panels

Luggage and cases – Handle attachments, corner brackets, hinge pins

Rail components – Structural connections, panel assemblies

Truck beds and trailers – Panel attachments, structural connections

Flat head rivets are ideal for sheet metal work, panels, and applications where a clean, seamless connection is valued. They provide a strong and durable connection without a protruding head.

Materials and Finishes – What We Offer

Material: Low‑carbon steel (1008 / Q195 / SPCC). Tensile strength: 400–500 MPa. Low‑carbon steel offers excellent formability and the highest strength‑to‑cost ratio of any rivet material.

Available finishes:

If your application is continuously wet or in a coastal environment, we recommend switching to stainless steel flat head rivets. For everything else, steel with the right finish works.

About Nuote Metals – Who We Are and What We Make

We are a Dongguan‑based fastener manufacturer with over a decade of experience in cold heading. Our facility runs 45 cold‑heading machines capable of producing rivets from 0.8mm to 10mm in diameter, in both solid and semi‑tubular designs.

Our product lines include:

Rivets – solid, semi‑tubular, full tubular, and special rivets in carbon steel, stainless steel, brass, copper, and aluminum

Eyelets – produced on dedicated deep‑drawing equipment

Stamping parts – high‑speed stamping for precision metal components

CNC turning parts – precision components with tolerances down to ±0.005mm

What we hold:

Tolerances – ±0.05mm on standard rivet dimensions

Stock – over 3,000 different sizes, from 0.8mm to 10mm shank diameter

Lead time – 3–5 days for stocked sizes; 15–25 days for custom orders

Quality – 100% inspected before shipment

Certification – ISO 9001:2015

We ship to manufacturers across North America, Europe, Asia, and beyond.

Why Customers Choose Us – Real Feedback and Quality You Can Trust

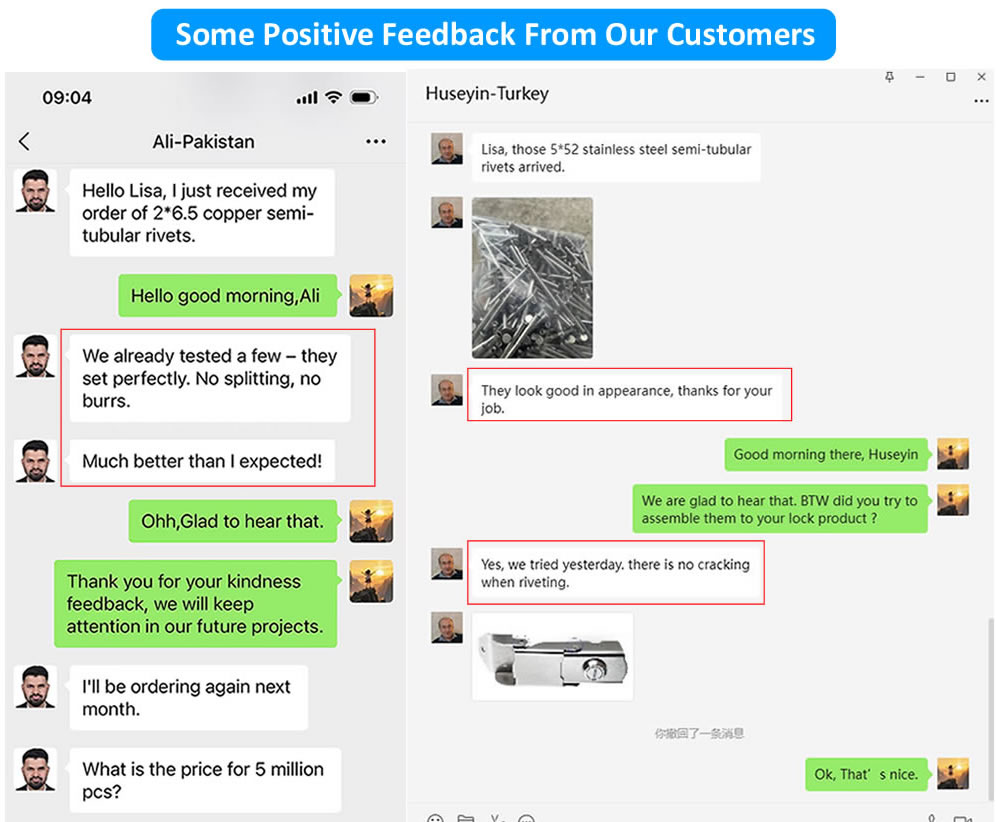

Manufacturers who use our steel flat head rivets come back to us for consistent quality and reliable delivery. Here is what they tell us:

"We have been ordering flat head rivets from them for two years. The head height and shank diameter are always on spec – no variations between batches." – Industrial equipment manufacturer

"The semi‑tubular rivets set cleanly every time. We have eliminated the reject rate we had with our previous supplier." – HVAC assembler

"Their documentation is complete – material certs, dimensional reports, everything we need for our quality system." – Rail component supplier

What gives them confidence:

We check every batch – Not just random samples. Our in‑house inspection lab is equipped with: laser micrometers (±0.02mm accuracy), optical comparators for head geometry verification, 2.5D image measuring systems, Rockwell hardness testers, spectrometers for material verification, salt spray chambers for corrosion testing (when required), and XRF thickness gauges for plating verification. All equipment is calibrated annually.

We trace everything – Every coil of steel wire comes with a mill test certificate and heat number. We can trace every batch back to the original melt. If a field issue ever occurs, we can pull the full file.

We deliver what we promise – Samples in 5–7 days. Production on schedule. Full documentation with every shipment.

We work with manufacturers in industrial equipment, HVAC, furniture manufacturing, automotive interiors, rail components, and truck body assembly – across North America, Europe, and Asia.

Two Questions We Answer Often

Q: "Can steel flat head rivets be used in structural applications where load‑bearing is critical?"

A: Yes, but with a distinction between solid and semi‑tubular designs. A solid steel flat head rivet delivers maximum shear and tensile strength and is widely used in structural assemblies, bridges, and heavy machinery. A semi‑tubular flat head rivet retains 80–90% of solid rivet strength – which is more than enough for most industrial equipment, machinery guards, and furniture applications. If your application is structural and carries significant load, choose solid. If it is an assembly line application with moderate loads, semi‑tubular will give you the strength you need with faster installation. For the control panel case above, semi‑tubular provided more than enough strength for the application.

Q: "What is the maximum shank diameter you can produce for steel flat head rivets – and what is the longest length?"

A: Our 45 cold‑heading machines can produce rivets up to 10mm in shank diameter and 100mm in overall length for solid designs. For semi‑tubular designs, the maximum length is typically limited by the cavity depth – we can produce barrel lengths up to 80mm depending on the diameter. For diameters above 10mm or lengths above 100mm, we can discuss custom tooling and alternative manufacturing methods. For most industrial, HVAC, and furniture applications, the 0.8–10mm diameter range covers over 90% of requirements. Send us your drawing – we will confirm feasibility and provide a quote.
