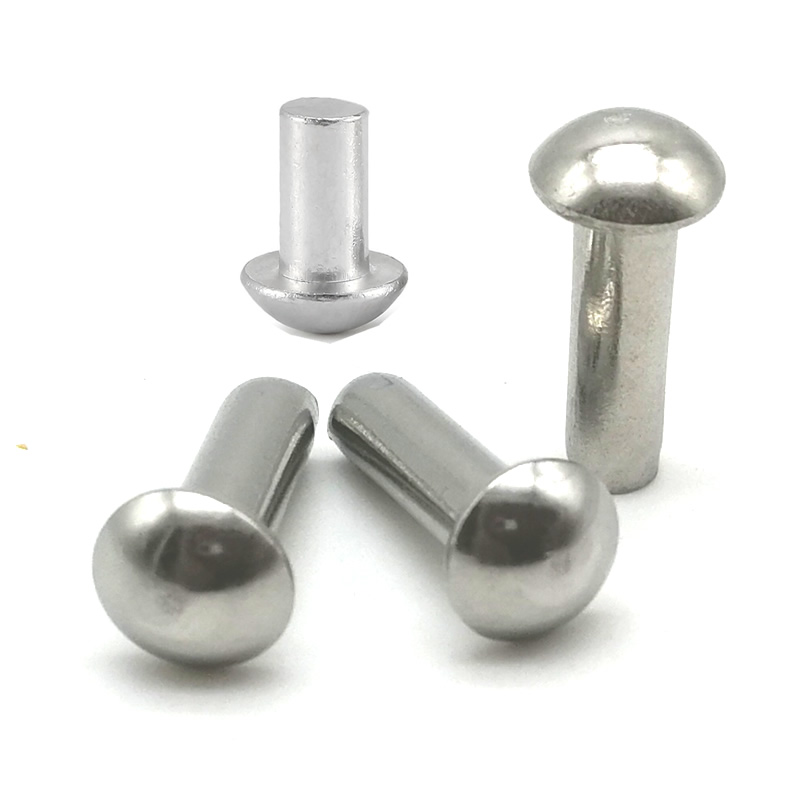

Steel Mushroom Head Rivets

If you have ever caught a glove on a rivet head or watched a powder‑coated panel get scratched during assembly, you understand the problem. Sharp edges are not just a cosmetic issue – they are a safety hazard, a quality control problem, and a potential point of failure under load.

Steel mushroom head rivets solve this with a wide, low dome and a generous radius at the edge – smooth, rounded, no sharp transition from head to material. The wide head distributes clamping force over a larger area, reducing stress on the material. The radiused edge eliminates sharp corners that catch on gloves, scratch surfaces, or create stress risers.

Made from low‑carbon steel, they offer the strength and cost‑effectiveness of steel with the safety profile of a radiused head. Available in both solid and semi‑tubular designs, you can choose the version that matches your strength requirements and production speed.

Mushroom Head vs. Round Head – The Smooth Edge Difference

The difference is the radius. A round head has a distinct edge – it may not feel sharp, but it can catch on gloves or scratch finishes over time. A mushroom head has a smooth, continuous curve from the center to the edge. Run your finger across a mushroom head rivet, and you will feel nothing but a gentle dome.

Choose mushroom head when: The rivet will be touched by workers or users. The surface finish must be protected from scratches. You need a wide bearing surface but cannot risk sharp edges. Safety and appearance both matter.

Solid vs. Semi‑Tubular – Which Design Do You Need?

Choose solid for structural joints where maximum strength is required. Choose semi‑tubular for high‑volume production, thin materials, and faster assembly lines.

Materials and Finishes – What We Offer

We offer steel mushroom head rivets in low‑carbon steel (1008 / Q195 / SPCC) with a tensile strength of 400–500 MPa – the highest strength‑to‑cost ratio of any rivet material. Multiple surface finishes are available to match your environment:

Plain (uncoated) – Indoor, dry environments

Zinc‑plated (clear) – 48 hrs salt spray, indoor general use

Zinc‑plated (yellow) – 96 hrs salt spray, sheltered outdoor

Nickel‑plated – 96 hrs salt spray, consumer products, visible hardware

Black oxide – 24 hrs salt spray, anti‑glare, industrial

For continuous wet or coastal environments, we recommend stainless steel mushroom head rivets.

One Real Application – Mining Equipment Control Panel

A manufacturer of underground mining equipment needed a fastener for control panel assemblies that operators would touch daily in harsh conditions. The previous round head rivets had sharp edges that caught on gloves and scratched the powder‑coated panel surface. In a safety‑critical environment, any snag point was unacceptable. The customer needed a fastener that would eliminate sharp edges, protect the surface finish, and hold securely under extreme vibration.

We supplied zinc‑plated steel mushroom head semi‑tubular rivets – 5.0mm shank, 11.0mm head, 12.0mm barrel length. The smooth, radiused edge eliminated sharp corners – no more snagged gloves, no more scratched panels. The wide head distributed clamping force evenly across the panel. The semi‑tubular cavity cut setting force from 4.0 tons to 1.2 tons. The customer tested 500 rivets across 50 equipment units. After 12 months of underground operation, zero failures, zero safety complaints. They now order steel mushroom head rivets in batches of 200,000 pieces annually.

About Nuote Metals – Company and Rivet Production

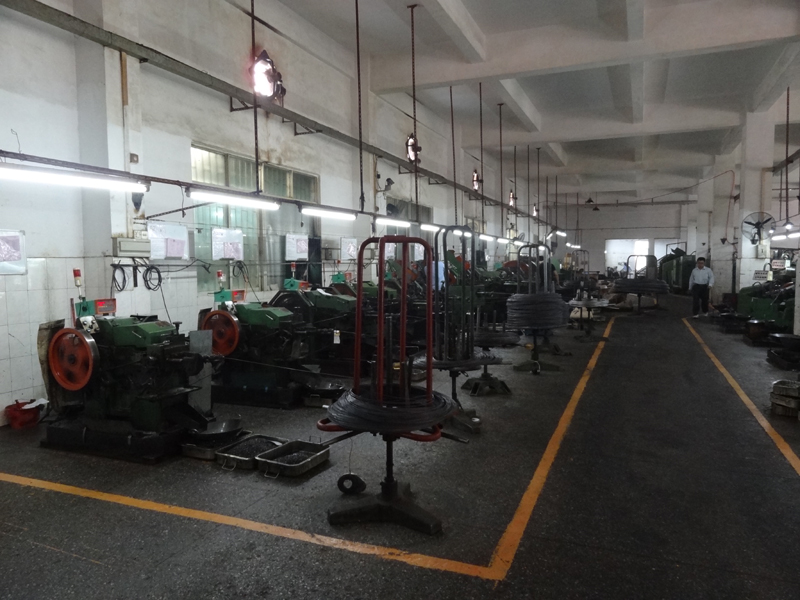

We are a Dongguan‑based fastener manufacturer with over a decade of experience in cold heading. Our facility runs 45 cold‑heading machines capable of producing rivets from 0.8mm to 10mm in diameter, in both solid and semi‑tubular designs. We hold ±0.05mm tolerances on standard dimensions and stock over 3,000 sizes for rapid sampling and production.

We ship to manufacturers across North America, Europe, Asia, and beyond.

Why Customers Choose Us – Real Feedback

"No more snagged gloves on our assembly line." – Mining equipment manufacturer

"The smooth heads do not scratch our powder‑coated panels." – Heavy equipment builder

"We switched to mushroom heads for safety reasons and have had zero complaints since." – Construction equipment supplier

What gives them confidence:

• ISO 9001:2015 certified; RoHS and REACH compliant
• SGS test reports available per batch
• 100% inspected – laser micrometers, optical comparators, hardness testers, spectrometers, salt spray chambers, XRF gauges
• Full traceability – mill certificates and heat numbers for every coil
• Samples in 5–7 days, production on schedule

Three Questions We Answer Often

Q: "Can I get samples for testing – what is the lead time and cost?"

A: Yes – we offer samples for all our products. For standard stocked specifications, samples are provided free of charge – you only pay the shipping cost. Sample lead time is 5–7 days for standard sizes. For custom sizes or custom tooling, sample availability and lead time depend on the specific requirements. We will provide a sample cost estimate and timeline when we quote. We believe in testing before committing – we want you to be confident in the product before you order production quantities.

Q: "What is the maximum edge radius you can achieve on a steel mushroom head rivet?"

A: The maximum edge radius depends on the head diameter and shank size. For a typical 5mm shank with an 11mm mushroom head, we can achieve a radius of 0.8–1.2mm – smooth enough to eliminate snagging and reduce stress concentration. For custom applications requiring a larger radius, we can modify the heading die geometry. The limiting factor is the head height – the radius cannot exceed the head height without compromising the dome shape. Send us your application details – we will recommend the optimal radius for your needs.

Q: "Are steel mushroom head rivets suitable for outdoor or corrosive environments?"

A: Steel mushroom head rivets can be used outdoors with the right finish. Uncoated steel will rust. We offer zinc plating (clear or yellow) for 48–96 hours of salt spray protection – suitable for sheltered outdoor use. Nickel plating provides 96 hours with a bright finish. For continuous outdoor exposure or coastal environments, we recommend switching to stainless steel mushroom head rivets. In the mining equipment case above, zinc plating provided sufficient protection for underground conditions.
