Galvanised Eyelets

When sourcing hardware components, the smallest details often determine the longevity and safety of the final product. Among these, galvanised eyelets stand out as a critical component for industries ranging from automotive upholstery to industrial tarpaulins and outdoor signage.

At Nuote Metals, we understand that a seemingly simple metal ring carries significant responsibility. With decades of metallurgical expertise, we provide galvanised eyelets that are engineered not just for fit, but for long-term performance in demanding environments.

What Are Galvanised Eyelets and Why Do They Matter?

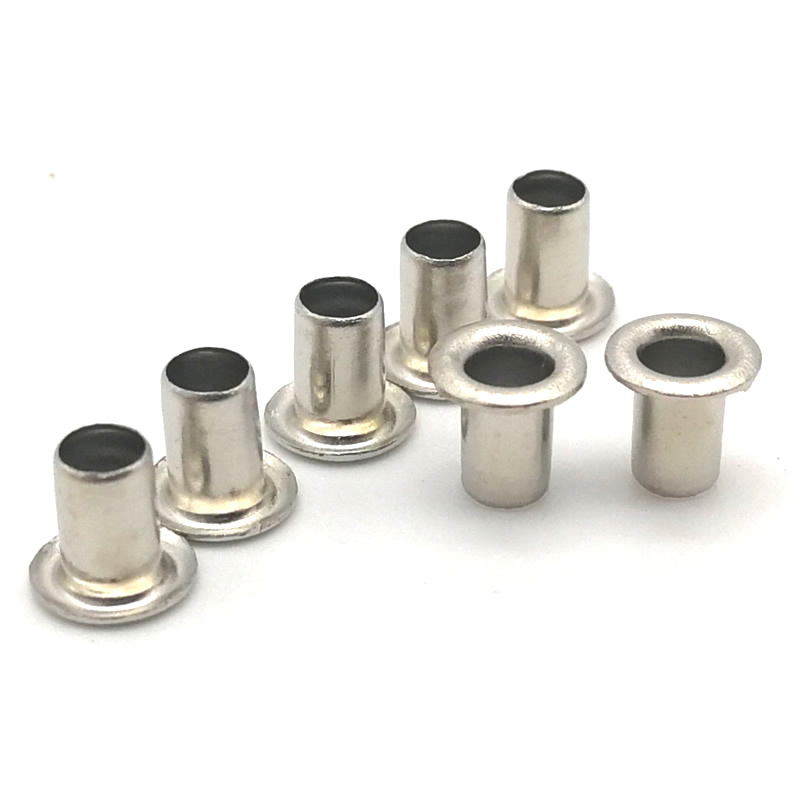

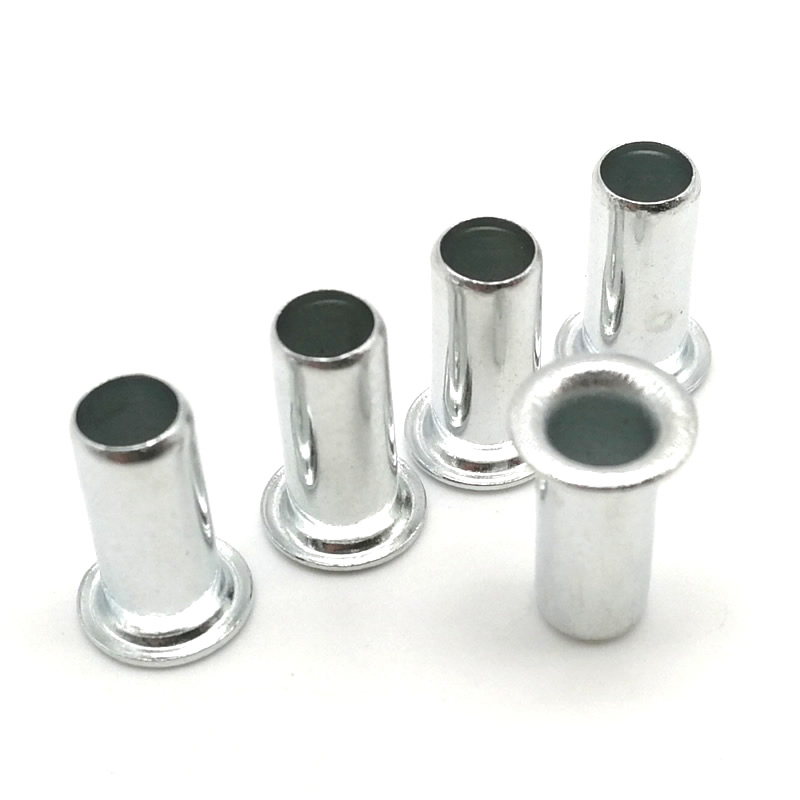

Galvanised eyelets are metal rings or grommets coated with a layer of zinc to prevent rust and corrosion. Unlike raw steel or brass alternatives, the galvanisation process ensures that these components maintain structural integrity even when exposed to moisture, chemicals, or extreme weather.

Nuote Metals specialises in manufacturing these components with high precision, ensuring that every eyelet meets strict industrial standards.

Key Product Parameters – Precision You Can Measure

To assist engineers, procurement specialists, and craftsmen in making informed decisions, we have structured the specifications of our galvanised eyelets into clear, actionable data points.

Material Composition

Dimensional Specifications

Our galvanised eyelets are available in a wide range of sizes to accommodate various material thicknesses and load requirements. Below is a standard reference table:

Custom tooling is available for non-standard specifications.

Applications – Where to Use Galvanised Eyelets

The versatility of galvanised eyelets makes them suitable for a wide range of industries. Nuote Metals supplies these components to businesses that require reliability in the following scenarios:

Industrial Textiles

Reinforcement of tarpaulin tie-down points.

Ventilation holes in heavy-duty canvas tents.

Automotive and Marine

Drainage holes in boat covers and automotive upholstery.

Cable routing in interior panels where abrasion resistance is required.

Printing and Signage

Mounting points for large-format banners and outdoor flags.

Secure fixing for exhibition display stands.

Leather Goods and Footwear

Lacing holes for work boots and heavy-duty belts.

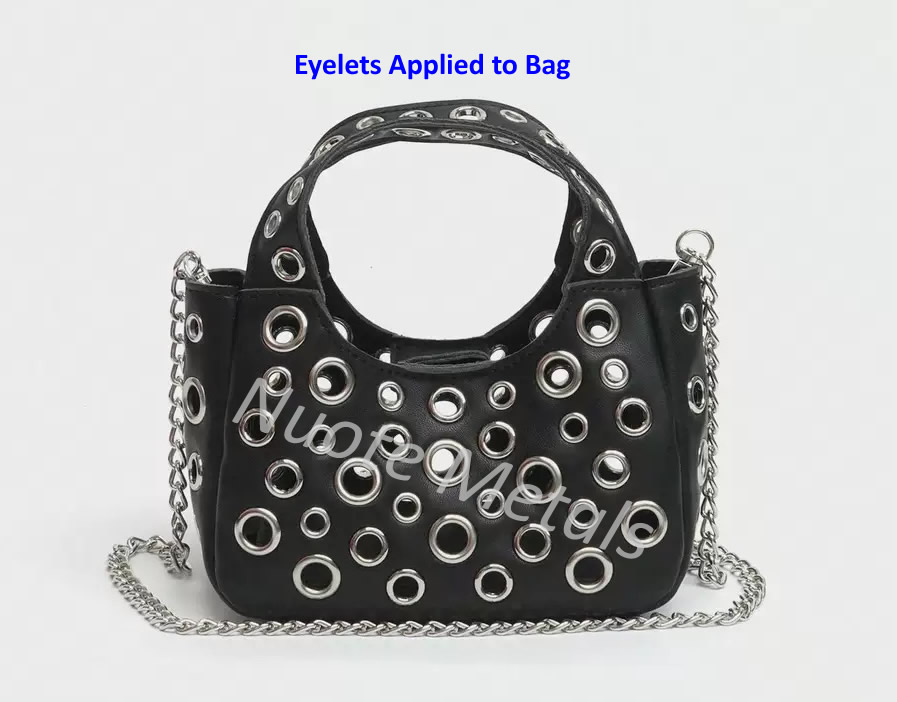

Decorative yet functional reinforcements for leather bags.

Why Choose Nuote Metals for Galvanised Eyelets?

Adhering to Google’s EEAT (Experience, Expertise, Authoritativeness, and Trust) principles, we provide evidence of quality beyond mere marketing claims.

Experience in Metallurgy

With over 20 years of manufacturing experience, Nuote Metals controls the entire production chain. We do not simply stock standard parts; we understand the metallurgical properties of the steel and the electrochemical behavior of the zinc coating.

Rigorous Quality Control

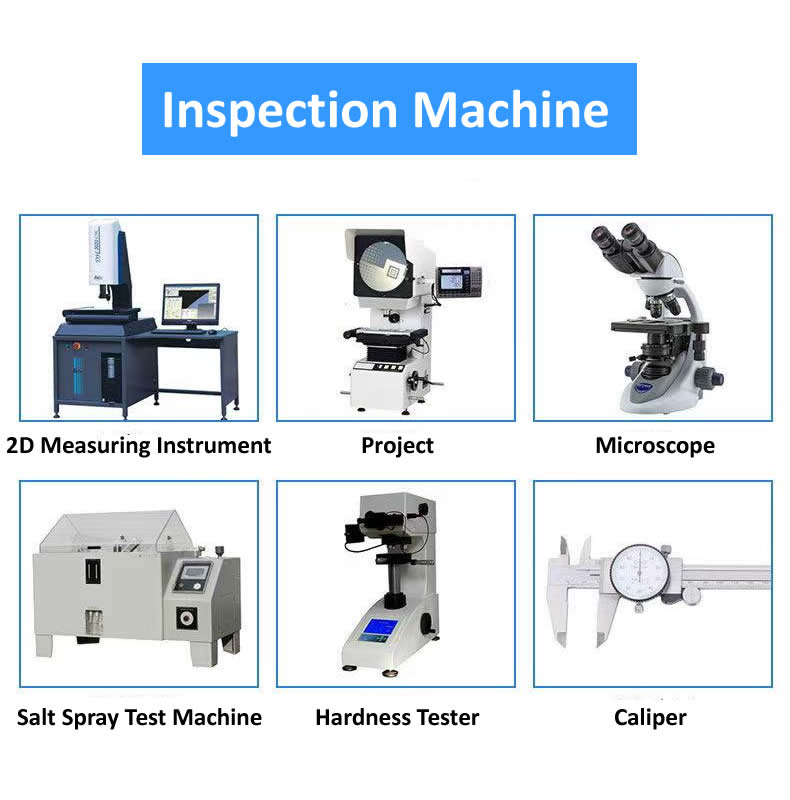

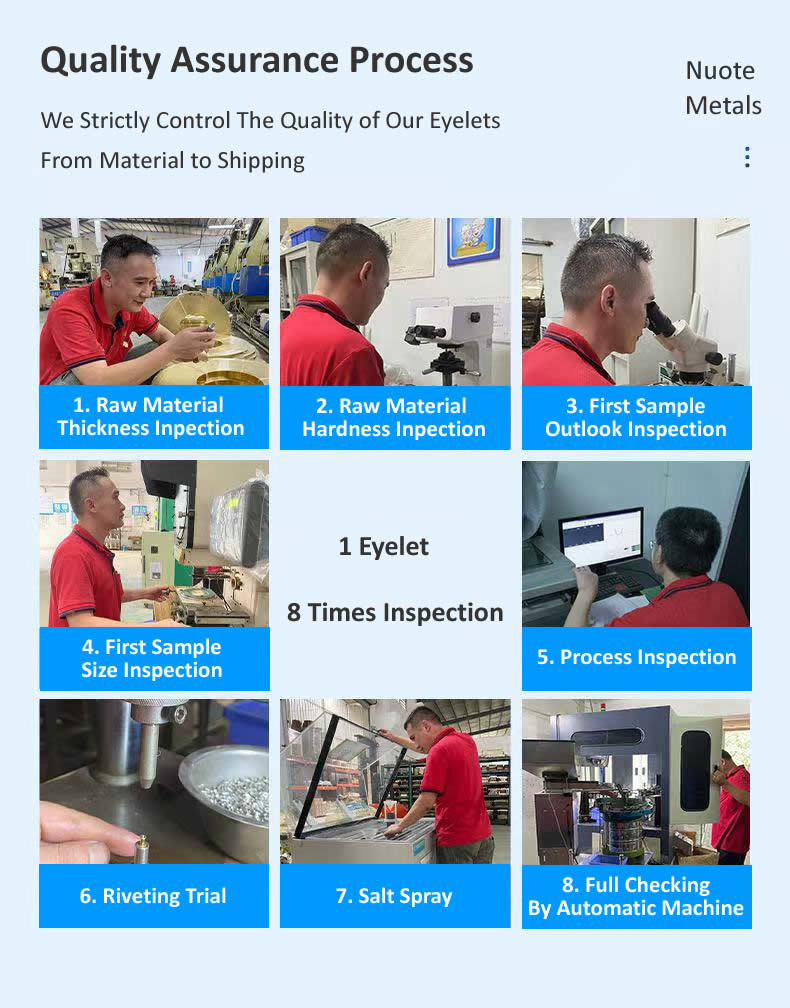

Our galvanised eyelets undergo three mandatory quality checks:

Dimensional Accuracy: Laser micrometer verification to ensure inner and outer diameters match the spec sheet within ±0.1mm.

Coating Adhesion: Bend tests to confirm the zinc layer does not flake or peel during installation.

Salt Spray Testing: Batch samples are subjected to accelerated corrosion testing to validate rust resistance.

Compliance and Standards

All products are manufactured to comply with:

ISO 9001:2015 Quality Management Systems.

RoHS (Restriction of Hazardous Substances) for environmental safety.

ASTM A653/A653M for steel sheet zinc coating standards.

Installation Best Practices for Galvanised Eyelets

To maximize the performance of galvanised eyelets, proper installation is as critical as the product quality. Nuote Metals recommends the following guidelines:

Use the Correct Die Set

Mismatched dies are the primary cause of deformation. Ensure the die set matches the outer flange and barrel length precisely to avoid cracking the zinc coating.

Control Pressure

Excessive pressure can flatten the barrel, causing it to lose grip on the fabric. Moderate pressure ensures the barrel curls smoothly without exposing raw steel edges.

Pre-Punch Holes

For woven textiles, always pre-punch a clean hole rather than forcing the eyelet through. This prevents fraying and ensures the barrel seats perfectly.

Frequently Asked Questions About Galvanised Eyelets

To assist our clients in selecting the right components, Nuote Metals has compiled the most common technical inquiries regarding galvanised eyelets.

Q1: What is the difference between hot-dipped galvanised and electro-galvanised eyelets? Which one should I choose for outdoor use?

A: The primary difference lies in the thickness and method of zinc application. Hot-dipped galvanised eyelets involve submerging the steel in molten zinc, resulting in a thicker coating (40–60 µm) and superior corrosion resistance, making them ideal for outdoor marine or agricultural applications. Electro-galvanised eyelets use an electrical current to apply a thinner, smoother layer (8–12 µm). These are better suited for indoor applications or light-duty uses where aesthetics and a polished finish are prioritized. For outdoor use lasting more than 5 years, Nuote Metals always recommends our hot-dipped galvanised series.

Q2: Can galvanised eyelets be used on materials other than fabric, such as plastic or thin metal sheets?

A: Yes, galvanised eyelets are suitable for various materials, but the selection depends on the material thickness and hardness. For soft plastics or thin aluminum sheets (up to 1.5mm), a standard barrel length eyelet works well. However, for thicker materials or high-vibration environments, we recommend consulting with Nuote Metals for a custom barrel length to ensure a proper roll-over. Using the correct setting tool is crucial to prevent cracking the base material.

Q3: How does Nuote Metals ensure that the zinc coating does not chip off during high-speed industrial setting?

A: Coating adhesion is a critical quality parameter we address during production. Our galvanised eyelets undergo a mandatory mandrel bend test before batch release. This test involves bending the eyelet 180 degrees around a mandrel equal to its diameter. If the zinc coating shows no flaking or peeling, the batch is certified for industrial setting. Additionally, we recommend using setting machines with adjustable depth stops to prevent excessive impact that could compromise the coating.

Conclusion

Selecting the right fastener is not merely about filling a hole; it is about ensuring the structural integrity and lifespan of the entire assembly. Galvanised eyelets from Nuote Metals combine precision engineering, robust anti-corrosion properties, and strict quality control to meet the demands of modern industry.

Whether you require standard stock for ongoing production or custom dimensions for a specialized project, Nuote Metals provides the technical expertise and product reliability necessary for success.

Contact Nuote Metals today to request a specification sheet or discuss your custom galvanised eyelets requirements.
