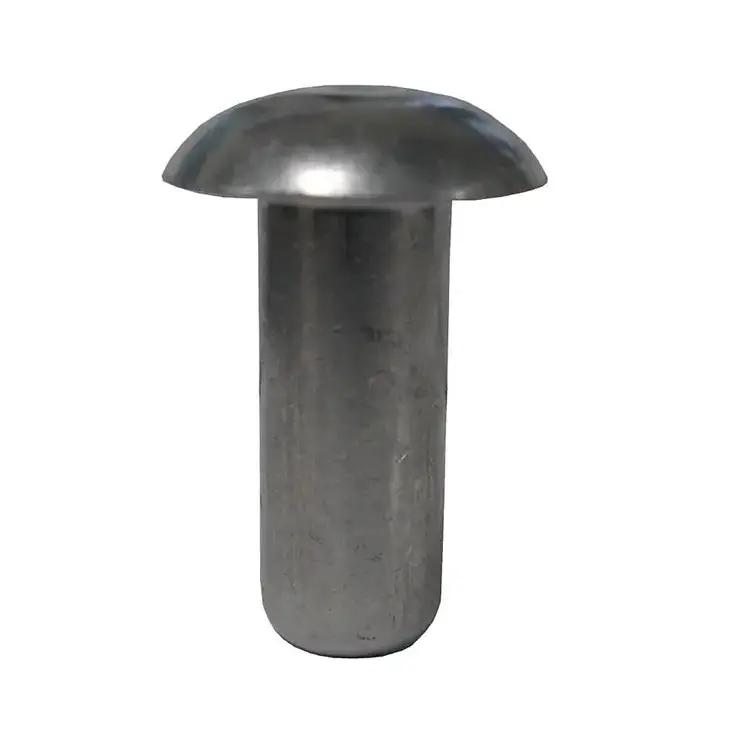

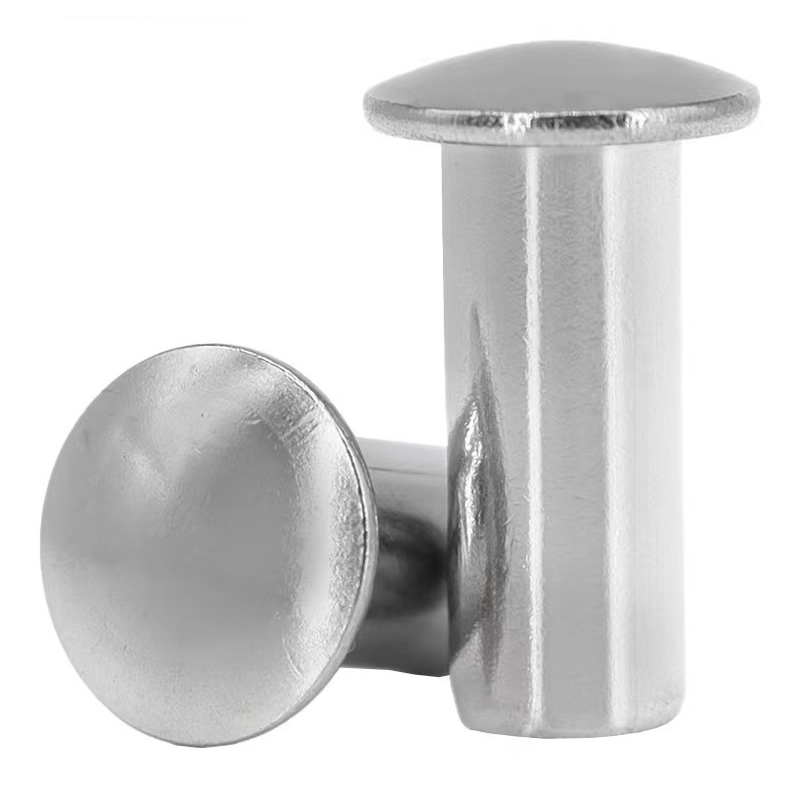

Universal Head Solid Rivets

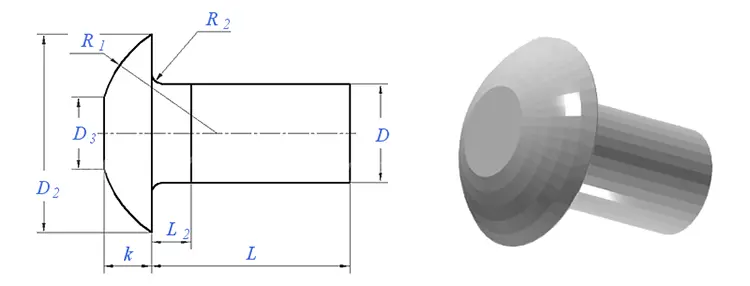

The universal head is the fastener equivalent of a Swiss Army knife – it does almost everything well. If a round head is too narrow and a truss head is too wide, the universal head head solid rivet is the answer. It offers a head diameter 2.0–2.2 times the shank – wider than round (1.6–1.8×), narrower than truss (2.2–2.8×) – with a smooth, radiused profile that looks good on any surface.

When you are not sure which head style to choose, the universal head is the safe bet. It works in almost every application, in almost every material, and looks professional doing it.

Universal vs. Round vs. Truss – The "Just Right" Head

When to choose universal head: You are assembling mixed materials (metal + plastic, metal + wood, metal + composites). You want a balance of bearing area and profile. You are not sure which head style to choose – universal is the safe default.

One Real Application – Residential Gate Hinge

A hardware manufacturer was producing a line of residential gate hinges and latches. The gate components were powder‑coated steel with plastic bearing inserts. The existing round head rivets were too narrow – the heads were pulling through the powder‑coated steel after repeated use. Truss head rivets were too wide – they looked bulky and industrial on a residential product.

We supplied zinc‑plated steel universal head solid rivets – 5.0mm shank, 10.5mm head, 16.0mm overall length. The universal head provided the extra bearing area needed to prevent pull‑through without looking bulky. The smooth, radiused profile matched the residential aesthetic. The customer tested 1,000 rivets across 500 gate sets. After 10,000 open‑close cycles and outdoor exposure testing, no pull‑through, no loosening. They now order universal head solid rivets in batches of 200,000 pieces annually.

How to Specify – Materials, Dimensions & Finish

We manufacture in five materials:

What you provide:

Shank diameter – 1.5mm to 8.0mm

Head diameter – we can recommend based on your material

Overall length – we calculate from your material stack thickness

Material – choose from five options above

Finish – zinc, passivated, lacquered, nickel, anodized, antique, etc.

Length rule for solid rivets: Overall length = material stack thickness + (1.2–1.5 × shank diameter).

Sample lead time: 5–10 days standard; custom tooling: 15–20 days.

Our Production Process – From Raw Material to Finished Rivet

1. Raw Material Procurement – Certified wire from approved mills. Each coil comes with a mill test certificate and heat number.

2. Incoming Material Inspection – Diameter, hardness, and material composition verified before production. Coils outside specification are rejected.

3. Tooling Preparation – For new dimensions, carbide heading dies are designed and machined. For standard sizes, existing tooling is inspected and set up.

4. First Article Inspection – The first 10 rivets are measured on an optical comparator. Every dimension must match the drawing before production starts.

5. Mass Production – In‑process checks occur at defined intervals (5 rivets every 500 pieces). Any dimensional drift triggers immediate press stop.

6. In‑Process Inspection – Every 2,000 pieces, we set 3 rivets into a sample of your actual material. Clinch inspected for symmetry and tightness.

7. Final Outgoing Inspection – 100% optical sorting for critical dimensions. AQL sample manually verified. Dimensional report, material certificate, and Certificate of Conformance issued with every shipment.

Quick Reference – Dimensions, Tolerances & Materials

Trusted by Customers Across Industries

Three Questions We Answer Often

Q: "When should I choose a universal head over a round head?"

A: The universal head is wider (2.0–2.2× shank diameter versus 1.6–1.8×) and slightly lower than a round head. The visual difference is subtle, but the functional difference is real: the universal head provides more bearing area to prevent pull‑through in mixed materials. For metal‑to‑metal assemblies with tight holes, round head is still the better choice. For mixed materials – steel to plastic, steel to wood, steel to composites – universal head is the safer bet.

Q: "Why is the universal head solid rivet a good choice for mixed materials?"

A: Mixed-material assemblies have different expansion rates, hardness, and bearing capacities. Steel and plastic behave differently under load. The universal head's smooth, radiused profile and balanced head diameter distribute force evenly across both materials without marking or pulling through. In the gate hardware case, the universal head worked on both the powder‑coated steel and the plastic bearing inserts – where a round head would have pulled through and a truss head would have looked too industrial.

Q: "Can universal head solid rivets be used outdoors?"

A: Yes, with the right material and finish. For outdoor applications, we recommend stainless steel (SUS304) with passivated finish for permanent corrosion resistance – 200–500 hours salt spray. For general outdoor use where budget is a concern, zinc‑plated carbon steel with yellow chromate provides 96 hours of salt spray resistance. In the gate hardware case, the customer chose zinc‑plated steel because the gates were sheltered (under a porch) and the cost savings were significant.
