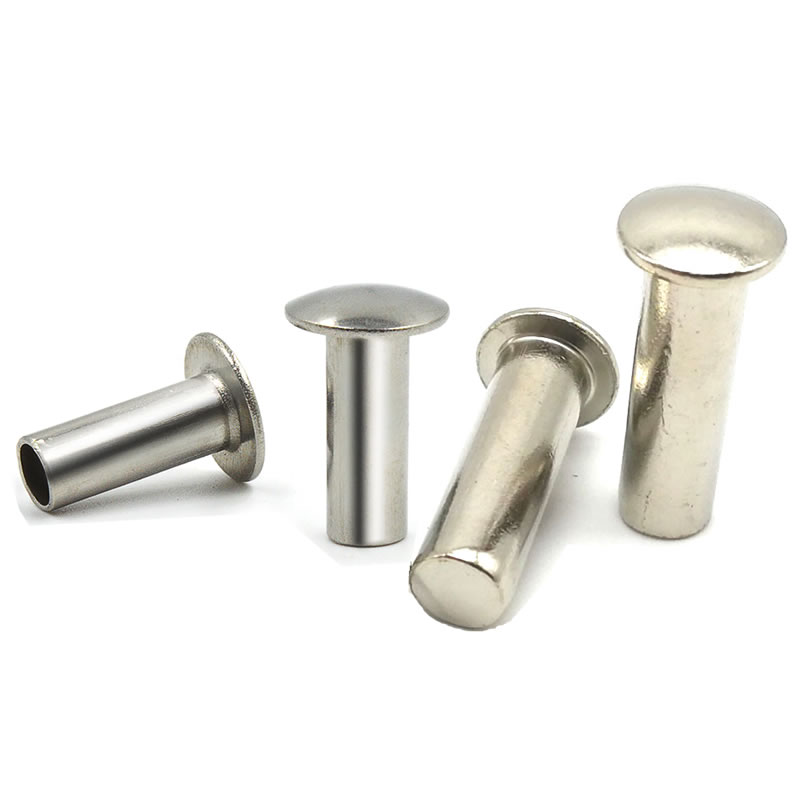

Iron Pan Head Rivets – The Smart Choice for Thin Sheets and Soft Substrates

When fastening thin sheet metal, plastic panels, or composites, standard round heads often cause pull-through or cracking. The Iron Pan Head Rivet solves this with an oversized, low-profile head that spreads load like a built-in washer. At Nuote Metals, we engineer these fasteners to protect your material while delivering reliable, permanent joints.

The pan head's broad underside grips a wider area—making it the go-to for automotive interiors, HVAC ducting, bus body panels, and any application where the material itself is the weakest link.

The Anatomy of a Pan Head – Why Size Matters

The defining feature of an Iron Pan Head Rivet is its head geometry:

• Head diameter: 1.8× to 2.0× the shank diameter (vs. round head at ~1.6×)
• Head height: 0.5× to 0.6× the shank diameter (lower than round head’s ~0.7×)
• Underside: Flat and smooth, creating a uniform bearing ring

This larger diameter distributes clamping force over a broader area, reducing surface pressure. For a 6mm rivet, the pan head offers roughly 25% more bearing area than a round head of the same shank size—meaning you can use softer materials without deformation or failure around the hole.

Technical Specifications

We manufacture to DIN 603 (semi-tubular pan head) and ISO 1051 (solid pan head), with full custom capability.

Combined Dimensional & Mechanical Data

Custom head ratios and lengths available upon request.

Pan Head vs. Round Head – When to Choose Which

Rather than a table, here’s a clear rule of thumb:

Choose Pan Head when your material is thin (≤3mm), soft (aluminum, plastic), or prone to cracking. The wide head prevents pull-through and gives a neat, low-profile finish.

Choose Round Head when joining thick steel plates (≥5mm) in high-vibration environments. The taller dome offers superior impact resistance and shock absorption.

For most automotive, appliance, and HVAC assemblies, the Iron Pan Head Rivet is the smarter choice. Nuote Metals stocks both—and we can help you decide based on your specific joint design.

Solid vs. Semi-Tubular – Which Configuration Works for Pan Heads?

Both body types are available, but your choice affects assembly speed and joint strength.

Our recommendation: For thin panels and automated production, choose semi-tubular. For structural integrity in thicker stacks, choose solid.

Surface Finishes – Protecting Your Pan Head Rivets

For automotive underbody or exterior applications, we recommend Geomet or hot-dip galvanized for maximum durability.

Installation Tips for Iron Pan Head Rivets

To get the best performance:

• Hole size: Maintain clearance at d + 0.1–0.2mm – too large reduces clamping, too small increases force and may crack the material.

• Clamp thickness: Ensure total stack is within the rivet’s grip range (typically L – 1.2×d to L – 0.8×d).

• Setting force: For semi-tubular, use lower pressure and a flat anvil; for solid, use a concave anvil to form a proper shop head.

• Edge distance: Keep at least 1.5×d from hole center to material edge to prevent tear-out.

Our technical team at Nuote Metals can provide custom setting parameters for your specific materials—just ask.

Quality Assurance – The Nuote Metals Difference

We are ISO 9001:2015 certified with an in-house lab equipped for fastener testing:

• 1000KN Universal Tester – shear & tensile
• Rockwell/Vickers hardness tester
• Metallurgical microscope – grain structure analysis
• Salt spray chamber – corrosion validation
• Coating thickness gauge
• 2D optical projector – head geometry and concentricity

Every batch of Iron Pan Head Rivets is documented with a material certificate and inspection report, ensuring full traceability from raw steel to finished part.

Frequently Asked Questions

Q1: Can I use Iron Pan Head Rivets on plastic parts without cracking them?

A: Absolutely – and that's one of their primary advantages. The wide, flat underside reduces surface pressure on the plastic, significantly lowering the risk of stress cracking or pull-through. For best results, use a semi-tubular body with controlled low setting force, and ensure the hole is deburred. If your plastic is particularly brittle (e.g., ABS or polycarbonate), Nuote Metals can supply pan heads with an even larger head diameter (up to 2.2×d) upon request.

Q2: What's the typical MOQ for custom-sized Iron Pan Head Rivets?

A: For standard DIN 603 sizes, our MOQ is 10,000 pieces. For custom diameters, head ratios, or lengths, the MOQ is typically 5,000 pieces due to specialized tooling. However, we accept trial orders of 1,000 pieces at a premium unit price to help you qualify the product. And as always, free samples of standard sizes are available (shipping costs apply).

Q3: Do pan head rivets work with self-piercing riveting (SPR) equipment?

A: No – pan head rivets require a pre-drilled hole and are not designed for self-piercing applications. SPR uses specially shaped rivets that pierce through the top sheet without pre-drilling. However, if you use conventional drilled holes, our Iron Pan Head Rivets perform excellently in automated feeding and setting systems. For high-volume lines, we can supply tape-mounted or bowl-fed options to match your feeder tooling—just specify your equipment model when you enquire.
