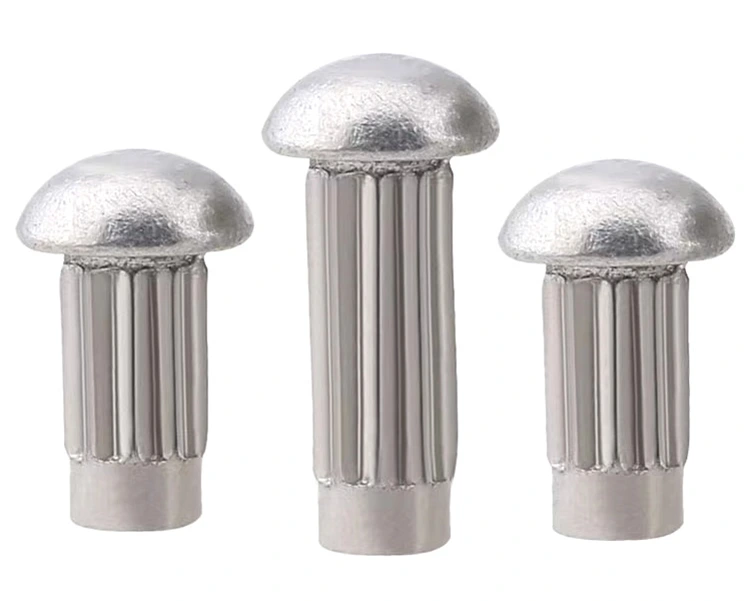

Knurled Rivets

Knurled rivets typically consist of a head, shank, and tail. The shank features a diagonal or straight knurled pattern, a machined, embossed texture that provides a better grip during installation and prevents tool slippage. The shank is cylindrical, with length and diameter varying depending on the application. Common sizes range from 3 mm to 8 mm in diameter and 5 mm to 20 mm in length. The tail may also have threads or grooves for mating with nuts or other fasteners.

Send Inquiry

Product Description

Introduction of knurled rivets

In terms of materials, knurled rivets are mostly made of stainless steel, carbon steel, or aluminum alloy. Stainless steel types, such as 304 or 316, offer excellent corrosion resistance and are suitable for outdoor or humid environments. Carbon steel types are often electroplated with zinc or nickel plating to enhance rust resistance. Aluminum alloy types are lightweight and cost-effective, making them suitable for indoor or light-load applications. Surface treatments also include blackening or coating to improve appearance or provide additional protection.

Product Parameter (Specification)

Material	Aluminum,steel,stainless steel,brass,copper
Surface Treatment	Clean, anodizing,plating
Head Type	As requested
Certificate	Rohs compliant
Shank Diameter	0.8-8mm
Tolerance	+/-0.05mm
Application	Suitable for use in various industries, including automotive, aerospace, electrical and electronics, etc.
Quality Control	100% whole range inspection through production ensures that each product meets the ISO standard, guaranteeing high-quality products.

Product Feature And Application

Knurled rivets are widely used in various signage installation scenarios. For example, on mechanical equipment, they are used to attach nameplates or signs, providing a stable connection that resists loosening. In electronic equipment, such as control panels or instrument housings, knurled rivets help secure signage while allowing manual adjustment or removal. Outdoor applications include road signs, billboards, or public facilities, where corrosion-resistant models can withstand the ravages of wind and rain. Compared to other rivets, the knurled design simplifies installation: no specialized tools are required; users can operate directly by hand or with a simple wrench, making them suitable for quick on-site repairs or assembly.
