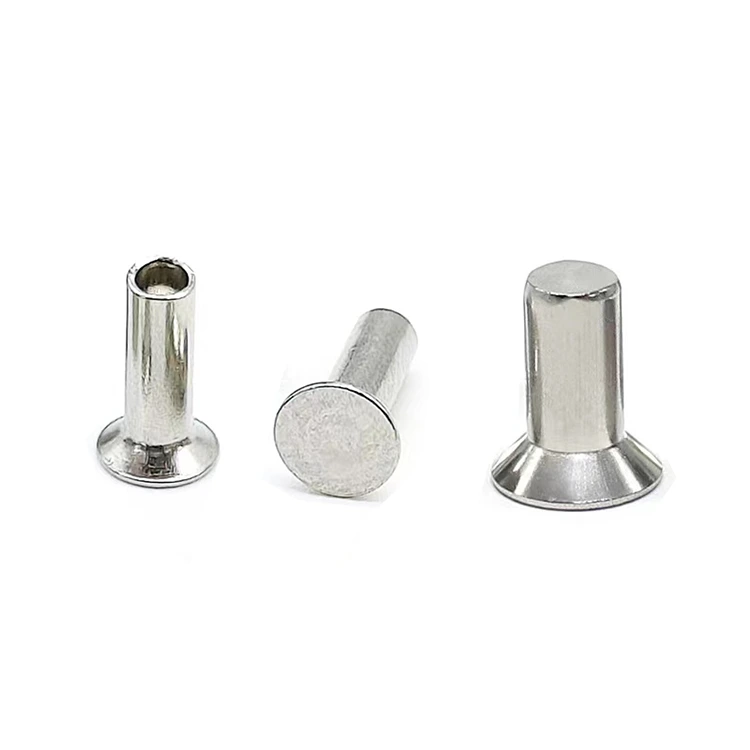

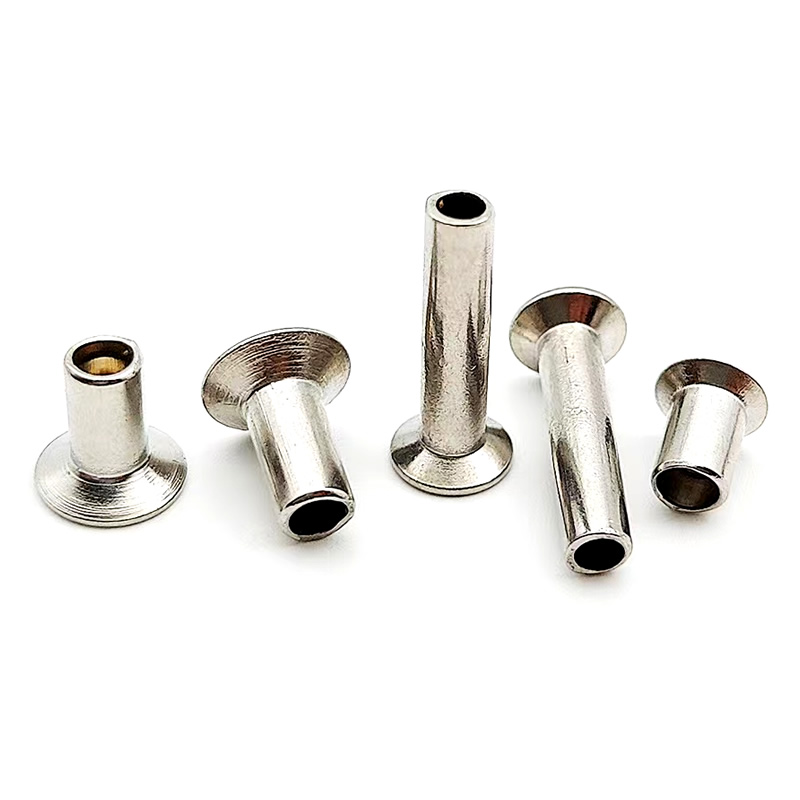

Countersunk Head Semi Hollow Rivets

Countersunk head semi hollow rivets combine zero protrusion with 70% less setting force. The tapered head sits flush with the surface. The semi‑hollow cavity reduces setting force by about 70% compared to a solid rivet. Fast setting. Flush finish. No snagging. No interference.

This is the rivet you specify when the surface must be smooth and the assembly line must keep moving.

Countersunk vs. Flat Head – The Flush‑Finish Difference

Choose countersunk head when: The joint must be completely smooth. The rivet is on a sliding surface or mating part. A protruding head would interfere with assembly. You want a flush finish but still need fast, low‑force installation.

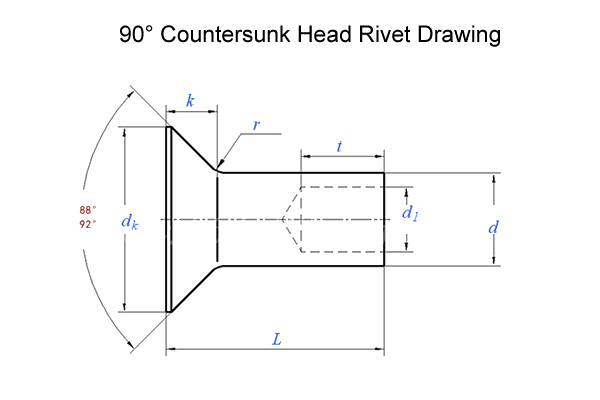

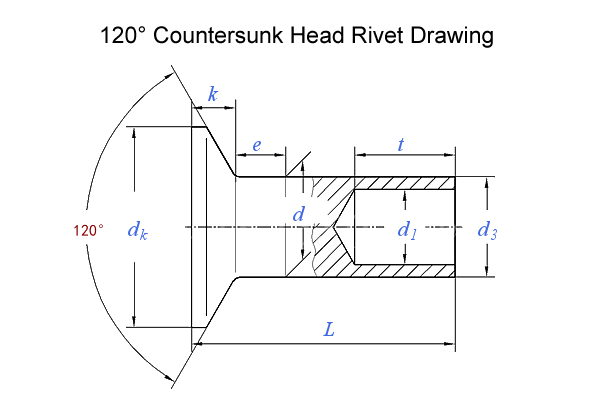

Head Angles – 90° vs. 120° vs. Others

Match your countersink tool. A rivet with the wrong angle will either sit proud or sit too deep. We recommend matching the angle of your existing countersink bit. If you are unsure, 90° is the most common and compatible with the majority of standard countersink bits.

Materials and Finishes – What We Offer

Materials: Carbon steel (zinc‑plated), stainless steel (304/316, passivated), brass (C2680), copper (C11000), aluminum (1100/5052/5056)

Finishes: Zinc‑plated, nickel‑plated, passivated, lacquered, black oxide, plain

One Real Application – Electronic Control Panel Enclosure

A manufacturer of industrial control panels needed to mount components inside a metal enclosure without any protruding fasteners. The panels had to stack flush against each other. The previous round head rivets scraped against mating panels during assembly and created gaps. Countersinking was already part of their process – they just needed the right rivet.

We supplied stainless steel countersunk head semi hollow rivets – 4.0mm shank, 8.0mm head, 90° angle, 10.0mm barrel length, passivated finish. The head sat flush with the panel surface – no more scraping, no more gaps. The semi‑hollow cavity cut setting force from 3.5 tons to 1.0 ton. The customer tested 1,000 rivets across 500 panels. After 10,000 assembly cycles, zero failures. They now order countersunk head semi hollow rivets in batches of 150,000 pieces annually.

About Our Company – And How We Make Your Custom Rivets

We are a Dongguan‑based fastener manufacturer with over a decade of experience in cold heading. We specialize in semi‑hollow rivets across five material families – carbon steel, stainless steel, brass, copper, and aluminum – with shank diameters from 0.8mm to 10mm.

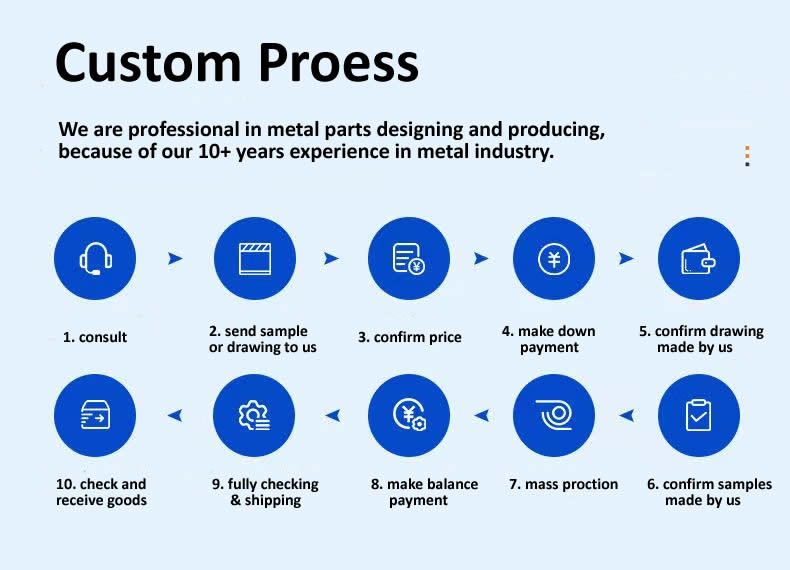

Here is how we work with you from design to delivery:

1. Consultation – You share your drawing, material thickness, head angle, and quantity requirements. We discuss your application and recommend the optimal specification.

2. Drawing & Quotation – Our engineers prepare a production drawing based on your requirements. We provide a clear quote – piece price, tooling cost (if any), and lead time.

3. Drawing Approval – We send you the drawing for confirmation. No production starts without your sign‑off.

4. Sample Production – We produce first articles (20–50 pieces) and ship them to you for testing. We check head angle, cavity depth, dimensions, and finish before they leave our facility.

5. Mass Production – Upon sample approval, we run full quantity on our 45 cold‑heading machines.

6. Quality Inspection – 100% optical sorting for critical dimensions. AQL sample manually verified. Full documentation issued – dimensional report, material certificate, and Certificate of Conformance.

7. Shipping – Packed to your requirements. Full documentation enclosed.

8. Follow‑up – We check that everything arrived and works as expected.

Sample lead time: 5–7 days for standard specifications; custom tooling: 15–20 days.

Why Customers Choose Us – Real Feedback

Manufacturers who use our countersunk head semi hollow rivets come back to us for the same reasons:

Zero protrusion – Heads sit flush with the surface. No snagging, no interference.

Low‑force setting – 70% less force than solid rivets. Protects thin panels.

Consistent head angles – 90°, 120°, or custom – verified on every first article.

Quick samples – 5–7 days.

We work with manufacturers in electronics enclosures, automotive interiors, aerospace panels, sheet metal fabrication, appliances, and signage – across North America, Europe, and Asia.

Two Questions We Answer Often

Q: "What is the best way to ensure the countersunk head sits perfectly flush with the surface after installation?"

A: Three things determine flush fit: the rivet head angle must match your countersink tool; the countersink depth must match the head height; and the setting force must be applied evenly. We recommend setting a test rivet into a sample of your actual material before production. If the head sits proud, the countersink is too shallow or the angle is wrong. If it sits too deep, the countersink is too deep. The correct flush fit means you cannot feel the edge of the head when you run your finger across the surface – it is seamless. We can supply matched setting tools that ensure even pressure and consistent flush fit.

Q: "When should I not use a countersunk head semi hollow rivet – what are the limitations?"

A: Countersunk head rivets are not suitable for very thin materials (under 1.0mm). The countersink removes material, which can weaken thin panels or cause distortion. For materials under 1.0mm, we recommend flat head rivets instead. Countersunk heads also require access to both sides of the assembly – you must be able to pre‑drill the countersink from one side and set the rivet from the other. If you only have one‑side access, blind rivets are the better choice. Finally, countersunk heads are not recommended for applications where the head must carry significant tensile load – the tapered head reduces the cross‑sectional area compared to a flat or round head. For structural, high‑load applications, choose a flat head or round head solid rivet.
