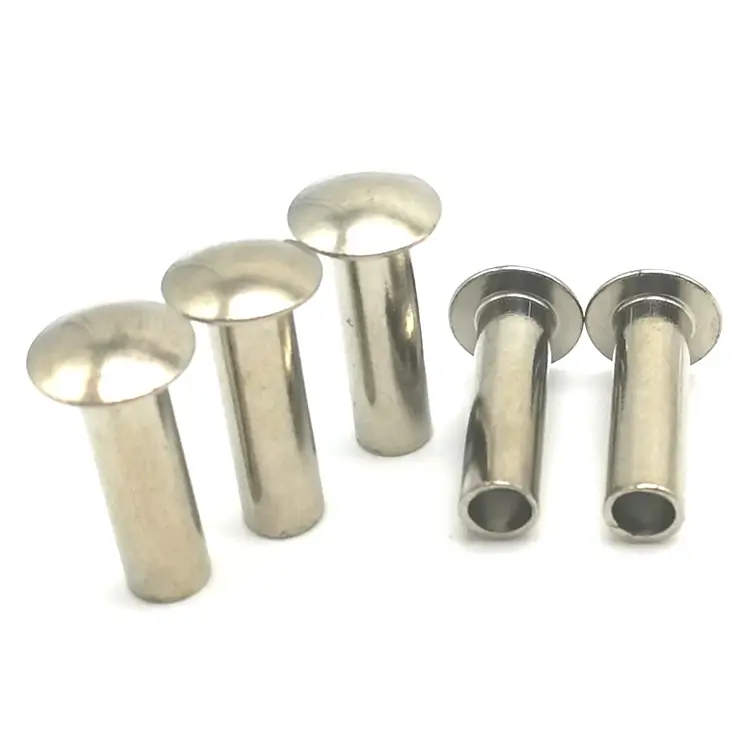

Pan Head Semi Tubular Rivets

When a round head feels too bulky and a flat head feels too minimal, the pan head semi tubular rivet is the answer. It has a slightly domed top with a short straight sidewall – giving it a clean, finished appearance that looks intentional on visible assemblies. The semi‑hollow cavity reduces setting force by 70% compared to solid rivets, making it ideal for high‑volume production.

Pan Head vs. Other Heads – Where It Fits

The pan head sits between a round head and a flat head. Its short straight sidewall gives it a distinct visual line that other head styles do not have.

Choose pan head when: The rivet will be visible and appearance matters. You need more bearing area than a round head but more head height than a flat head.

Semi‑Tubular vs. Solid – Where the Hollow Wins

The semi‑tubular design has a shallow cavity at the tail (45–55% of barrel length). During installation, only the thin wall of this hollow section rolls outward to form the clinch – requiring only 25–30% of the force of a solid rivet.

One Real Application – Commercial Coffee Machine Housing

A manufacturer of commercial coffee machines needed visible rivets on the outer housing that looked premium – not industrial. Round heads were too bulky, flat heads lacked visual presence. The design team wanted a rivet that would look intentional and finished.

We supplied stainless steel pan head semi tubular rivets – 4.0mm shank, 8.0mm head diameter, 8.0mm barrel length, passivated finish. The straight sidewall gave the housing a clean, finished look. The semi‑hollow cavity kept setting force low, preventing deformation of the thin housing panels. The customer tested 500 rivets across 100 machines. After field testing, no loosening, no corrosion. They now order our semi tubular rivets in batches of 100,000 pieces annually.

Materials and Finishes – What We Offer

Nuote Metals manufactures pan head semi tubular rivets in multiple material families:

Standard finishes: Zinc‑plated, nickel‑plated, passivated, lacquered, antiqued, plain.

From Raw Material to Finished Rivet – How We Make Them

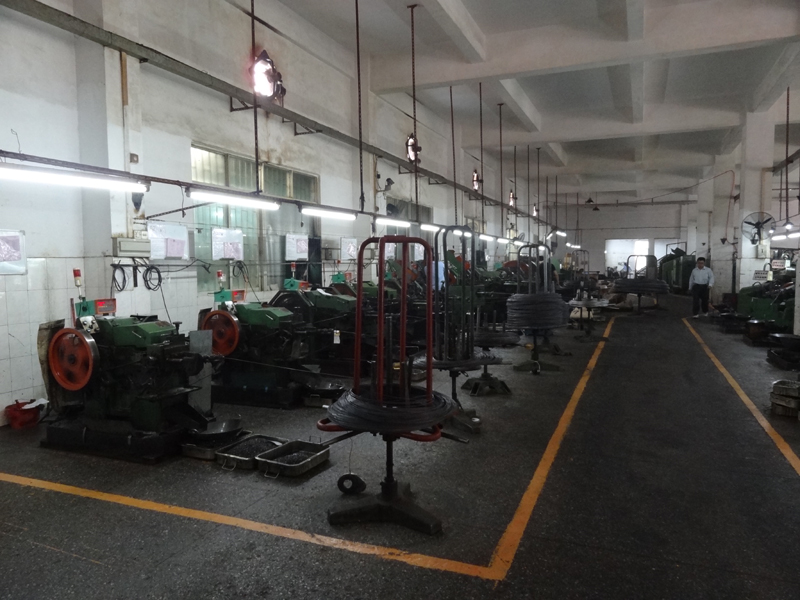

Pan head semi tubular rivets are manufactured through cold heading. The straight sidewall of the pan head requires precise die design to achieve the clean, finished look.

1. Material Procurement – Certified wire from approved mills. Each coil comes with a mill test certificate and heat number.

2. Incoming Material Inspection – Diameter (±0.02mm), hardness, and material composition verified. Spectrometer confirms grade. Out‑of‑spec material is rejected.

3. Tooling Setup – Carbide heading dies inspected and set up for the pan head profile and semi‑tubular cavity. Die geometry ensures the straight sidewall and smooth crown radius.

4. First Article Inspection – 10 rivets measured on optical comparator. Head diameter, head height, shank diameter, barrel length, and cavity depth verified.

5. Mass Production – In‑process checks: 5 rivets every 500 pieces. Any drift stops the press.

6. In‑Process Inspection – Every 2,000 pieces, set 3 rivets into sample material. Clinch inspected for symmetry and tightness.

7. Plating or Coating – Applied as specified.

8. Final Outgoing Inspection – 100% optical sorting. AQL sample manually verified. Dimensional report, material certificate, and Certificate of Conformance issued.

Our Certifications – Proof of Quality

We maintain full traceability and quality documentation for every batch:

• ISO 9001:2015 – Certified quality management system
• RoHS compliance – Verified by SGS third‑party testing
• REACH compliance – Current SVHC declaration
• SGS test reports – Available upon request for specific batches
• Material certificates – Mill test certificates traceable to original coil

Working with Customers Worldwide

We supply pan head semi tubular rivets to manufacturers across North America, Europe, and Asia. Our customers build:

• Commercial appliances – Coffee machines, food equipment, vending machines
• Furniture – Office furniture, shelving, display units
• Automotive interiors – Trim panels, instrument clusters, seat components
• Electronics enclosures – Chassis, control panels, housings
• Medical equipment – Device housings, instrument assemblies

Three Questions We Answer Often

Q: "Can I get samples before ordering production quantities?"

A: Yes – we offer samples for all our products. For standard existing specifications, samples are provided free of charge – you only pay the shipping cost. For custom sizes or custom tooling, sample availability and lead time depend on the specific requirements. Please contact our sales team with your drawing or specification, and they will advise on sample cost and delivery timeline.

Q: "Why would I choose pan head over round head for visible applications?"

A: The pan head has a short straight sidewall that creates a cleaner, more finished appearance on visible assemblies. Round head is a continuous curve from top to shank – it looks more industrial. The pan head's straight wall signals intentional design, not just function. It also provides a wider bearing surface (1.8–2.2× shank vs 1.6–1.8×), which means less pull‑through risk in softer materials.

Q: "What is the typical lead time for custom pan head semi tubular rivets?"

A: For standard specifications, sample lead time is 5–7 days and production lead time is 10–15 days after sample approval. For custom head diameters or non‑standard shank sizes requiring new tooling, tooling fabrication takes 15–20 days, followed by sample production. Contact our sales team with your specifications for an accurate timeline.
