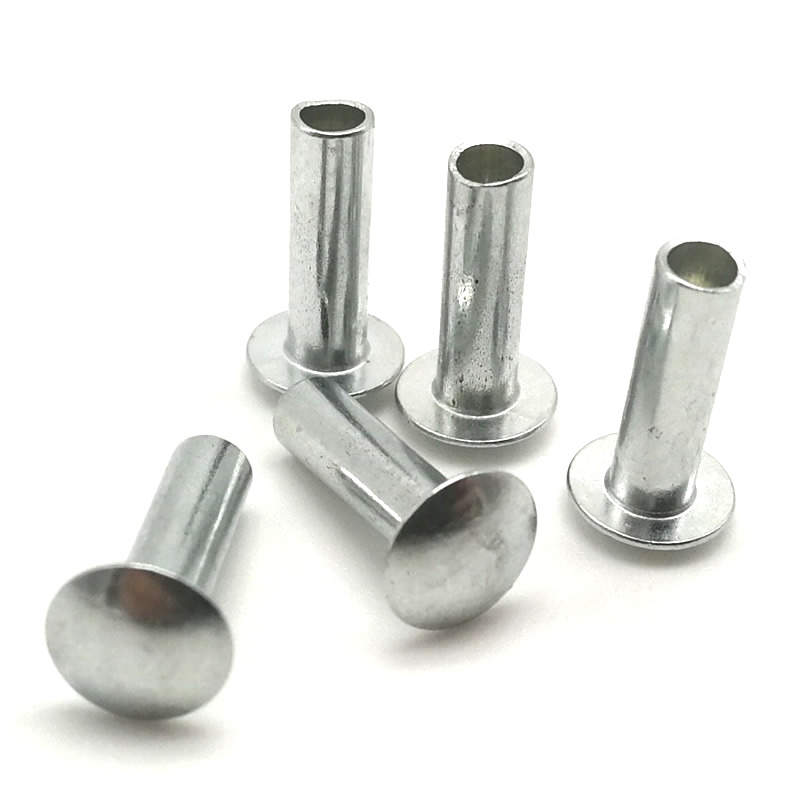

Universal Head Half Tubular Rivets

When you need a rivet head that distributes load across a wider area than a round head but sits lower than a truss head, the universal head half tubular rivet is the answer. This versatile head style combines a broad, smoothly radiused top with a shallow dome—providing excellent pull-through resistance without a bulky appearance.

Nuote Metals manufactures universal head half tubular rivets from low-carbon steel, stainless steel (304/316), and brass using high-speed cold heading. The semi‑hollow cavity reduces setting force by approximately 70% compared to solid rivets, while the universal head offers a balanced aesthetic suitable for visible and hidden applications.

Real-World Applications of Our Rivets

Case 1 – Automotive Interior Trim Panels

A car seat manufacturer needed a fastener that would not tear through soft foam-backed vinyl. Our universal head half tubular rivets (5mm diameter, 10mm barrel length, zinc‑plated steel) provided a wide 9.5mm head that distributed clamping force evenly. After 100,000 cycles of seat ingress/egress testing, none had loosened or pulled through.

Case 2 – Heavy-Duty Tarpaulin Reinforcements

An industrial tarp producer required a corrosion‑resistant rivet for tie‑down points exposed to road salt and rain. We supplied 304 stainless universal head half tubular rivets (6mm diameter, 12mm barrel length). The broad universal head prevented the fabric from tearing under 200 kg of pull force. Two years of field use showed no failures.

Case 3 – Outdoor Furniture Assembly

A garden furniture brand wanted a rivet with a low profile that would not snag cushions. We recommended brass universal head half tubular rivets (4mm diameter, 8mm barrel length) with an antique finish. The head height was only 1.8mm, yet the 7mm diameter provided ample bearing on aluminum frames. The customer reduced assembly time by 30% compared to using nuts and bolts.

Different Head Types of Rivets Nuote Metals Make

Nuote Metals make rivets with different types of head, such as flat head rivets, round head rivets, countersunk head rivets, truss head rivets, mushroom head rivets etc.

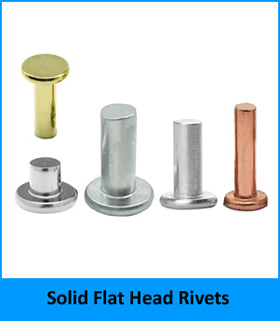

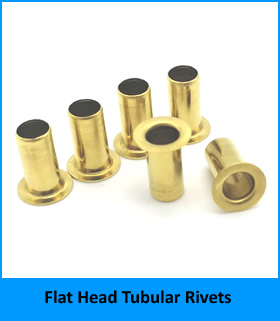

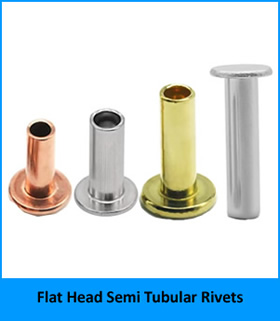

1. Flat head rivets, including flat head solid rivets, flat head semi-tubular rivets, flat head tubular rivets.

Do you want to know more about our flat head rivets? just click

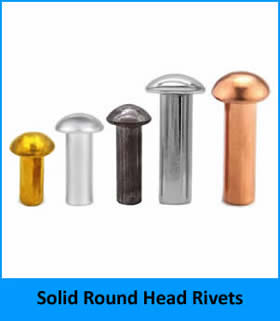

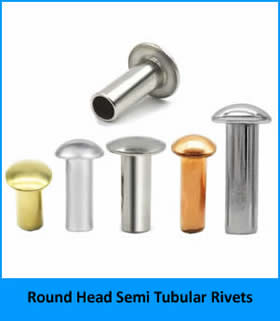

2. Round head rivets, including round head solid rivets and round head semi-tubular rivets.

Click  to know more about our round head rivets.

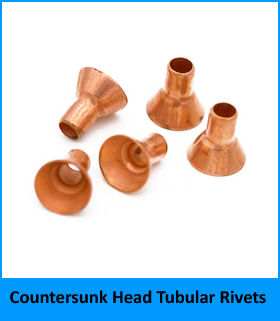

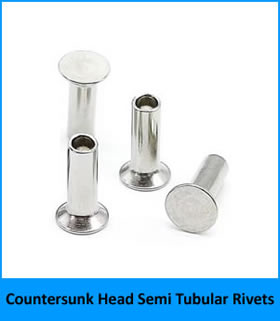

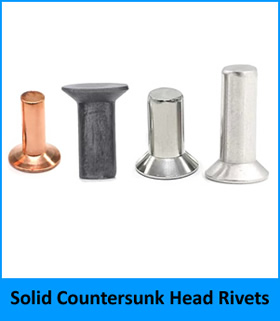

3. Countersunk head rivets, including countersunk head solid rivets, countersunk head semi-tubular rivets, countersunk head tubular rivets.

If you want to get more information of countersunk head rivets, please click

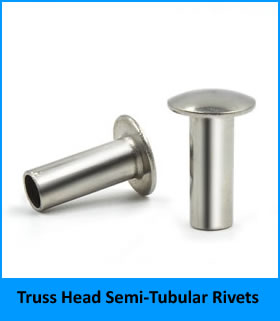

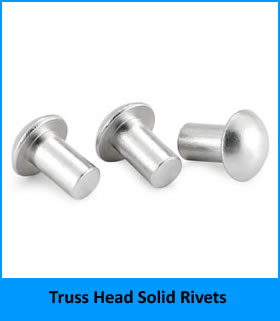

4. Truss head rivets, including truss head solid rivets and truss head semi-tubular rivets.

Need more information of truss head rivets? Just click

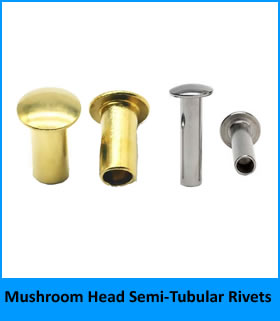

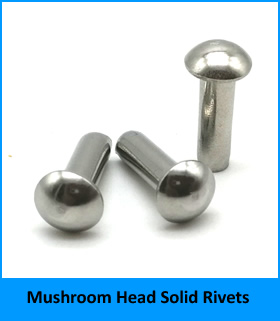

5. Mushroom head rivets, including mushroom head solid rivets and mushroom head semi-tubular rivets.

Click  to get more details about our mushroom head rivets.

Technical Parameters

We produce these rivets from multiple materials. All dimensions are verified by optical sorting.

Material Options and Properties

Standard Dimensional Range (Steel, 304, Brass)

Tolerances: Shank dia ±0.05mm, head dia ±0.15mm, head height ±0.10mm, length ±0.15mm.

Mechanical Properties (5mm Steel, Set into 2mm Steel Plate)

Our Seven‑Step Production Process

We follow a disciplined workflow for every batch of universal head half tubular rivets.

1. Material Sourcing – We purchase certified wire from approved mills. Each coil has a heat number for full traceability.

2. Material Inspection – Incoming wire is tested with a spectrometer and tensile tester. We verify diameter and surface condition.

3. Tooling Customization or Setup – For new dimensions, we design carbide cold‑heading dies (lead time 15–25 days). For standard sizes, our technicians install and align existing tooling.

4. First Article Inspection – The cold header runs 50 sample rivets. We measure head diameter, head height, shank diameter, total length, and cavity depth. A full FAI report is sent to you for approval.

5. Mass Production – Upon approval, we run at 200–400 pieces per minute. In‑process checks occur every 2,000 pieces for critical dimensions.

6. Subcontracted Plating or Passivation (if required) – For steel parts we send batches to our certified plating partners. For stainless, we offer passivation. Plating thickness is verified by XRF.

7. Final Outgoing Inspection – We use optical sorting machines to inspect 100% of parts for head geometry, length, and cavity depth. An AQL sample (Level II, 1.0) is pulled for shear testing. A Certificate of Conformance accompanies every shipment.

Quality Assurance and Certifications

Our production of universal head half tubular rivets is supported by:

Certification Scope

• ISO 9001:2015 Quality management system
• RoHS (2011/65/EU) Compliance for all materials
• REACH SVHC declaration
• IATF 16949 Available for automotive projects

Each shipment includes:

• Mill test certificate (material chemistry and hardness)
• Dimensional inspection report (10 pcs per batch)
• Plating or passivation certificate (if applicable)
• Signed Certificate of Conformance

Transparent Policies

• Sample policy – 20 free pieces for any standard size (customer pays shipping)
• Minimum order quantity – 2,000 pieces for steel/brass; 3,000 for stainless
• Lead time – 7–10 business days for stocked sizes; 15–20 days for custom dimensions
• Tooling charges – None for standard diameters and head styles
• Return policy – Defective parts replaced at no cost

Nuote Metals does not charge for re‑sampling if first articles fail to meet your drawing tolerances.

Frequently Asked Questions

Q1: What is the difference between a universal head half tubular rivet and a round head half tubular rivet? When should I choose the universal head?

A: The universal head has a larger diameter (typically 2.0–2.2 times shank diameter) compared to a round head (1.6–1.8 times). It also has a lower profile (head height about 30% of head diameter, versus 45% for round head). This makes the universal head better for soft or thin materials where pull‑through resistance is critical, yet you want a less obtrusive appearance. Choose our universal head half tubular rivets for applications like automotive trim, canvas tarpaulins, upholstery, and plastic assemblies where a round head might dig in or look too prominent.

Q2: Can universal head half tubular rivets be used with a backing washer to further increase pull‑out resistance in very soft materials?

A: Absolutely. For extremely soft substrates like foam, neoprene, or thin rubber, we recommend adding a flat washer under the clinched tail. The wide universal head on the visible side combined with a washer on the blind side creates a sandwich that prevents pull‑through even under high dynamic loads. Nuote Metals can supply matching steel or brass washers pre‑packaged with our rivets. Specify “with washers” when ordering. For foam thicker than 5mm, we also offer custom barrel lengths to accommodate the additional stack height.

Q3: What materials and finishes do you offer for these rivets, and which is best for outdoor use?

A: We offer low‑carbon steel (zinc plated for indoor/mild outdoor), 304 stainless (good for general outdoor), and 316 stainless (best for marine/coastal). For decorative applications, brass with antique or nickel finish works well but is less corrosion‑resistant than stainless. For outdoor furniture or tarpaulins exposed to rain and UV, we recommend 304 stainless universal head half tubular rivets with a passivated finish. For direct saltwater exposure (boat covers, dock hardware), choose 316 stainless. We provide salt spray test data upon request.

Why Choose Us for Universal Head Half Tubular Rivets

• In‑house cold heading – full control from wire to finished rivet
• Standard sizes from 3mm to 8mm always in stock
• Three material families: steel, stainless (304/316), brass
• 100% optical sorting for head geometry and cavity depth
• Free sample program – test setting before production
• Full traceability – MTC, CoC, and plating reports with every order

Contact Nuote Metals today to request a sample pack or a compliance package for your universal head half tubular rivets project.
